The remarkable advantage of SiC + 800V systems
If you’ve been tracking the electric‑vehicle (EV) industry closely, you’ve probably noticed a growing shift—not just toward bigger batteries or more powerful motors, but toward fundamental changes in the underlying electrical architecture. And at the heart of this shift lies one of the most important—and often underestimated—technologies driving the next wave of EV innovation:
Silicon Carbide (SiC)–based inverters paired with 800‑volt (SiC + 800V) platforms.
While these technologies may sound like niche engineering topics, recent research from SAE International and several peer‑reviewed academic studies shows they are reshaping efficiency, performance, thermal management, and overall drivetrain design across nearly every segment of modern electric mobility. In fact, SiC + 800V is quickly becoming the backbone of high‑performance EVs, next‑gen passenger cars, electric buses, and even aerospace‑grade propulsion systems.
And the more you dig into the research, the more one thing becomes clear:
SiC + 800V platforms matter far more than most people realize.
1. The Shift Toward 800V Systems—And Why It’s Happening Now
The migration from the traditional 400V architecture to 800V isn’t just a matter of chasing faster charging. According to SAE’s global EV propulsion analysis, moving to an 800‑volt platform directly improves system efficiency, lowers current draw, reduces cable thickness, and enables better thermal performance under sustained loads.
At its core, this comes down to simple electrical physics:
- Higher voltage = lower current for the same power output
- Lower current = dramatically reduced resistive losses (I²R)
- Reduced losses = cooler, lighter, and more compact systems
This chain reaction allows EV engineers to rethink everything from cable routing to inverter cooling loops. In an industry where every watt saved becomes additional driving range, 800V is more than an upgrade—it’s a structural shift in how EVs are engineered.

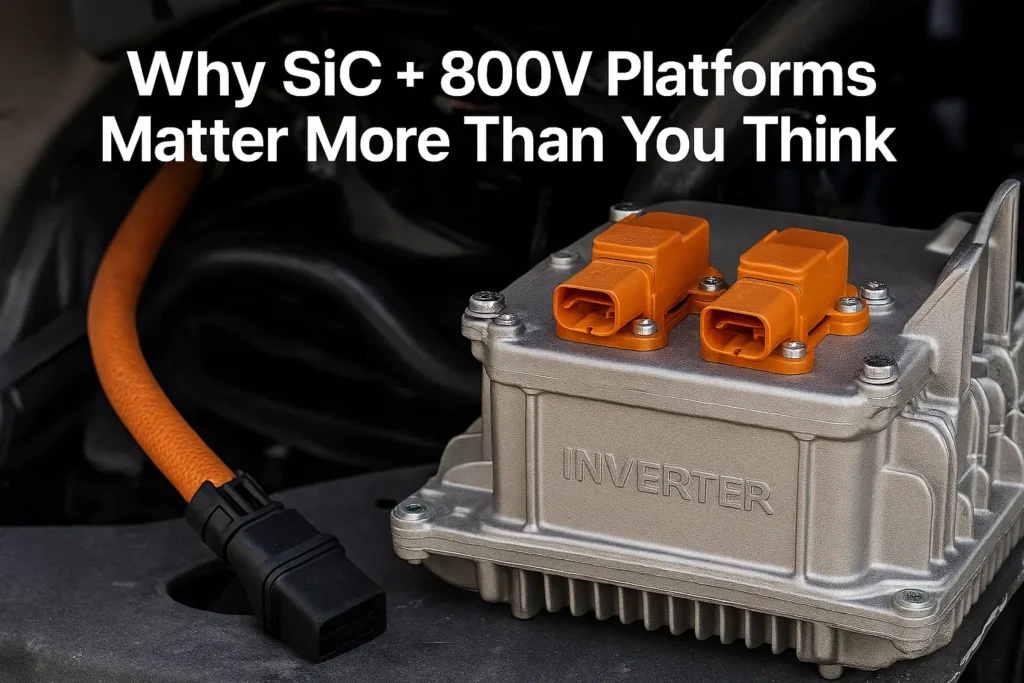

2. Why Silicon Carbide (SiC) Is the Real Game‑Changer
Raising system voltage alone doesn’t unlock EV performance. The real leap comes from replacing traditional silicon IGBTs with Silicon Carbide MOSFETs, which can operate efficiently at much higher switching frequencies and withstand greater thermal stress.
SAE’s 2026 motor‑technology study highlights several advantages SiC brings to EV inverters:
- 5–10% higher energy‑conversion efficiency
- Up to 40% lower thermal losses
- Higher switching frequencies for smoother motor control
- Reduced cooling requirements and smaller heat exchangers
These are not minor improvements. They fundamentally enhance both the inverter and the electric motor it controls.
For example, higher switching speeds allow for finer control of PMSM/IPMSM torque production, especially at partial loads—where EVs spend most of their time. And because SiC devices can tolerate higher temperatures, engineers can shrink cooling systems, package components more tightly, and reduce vehicle weight.
3. SiC + 800V: The Perfect Match for Modern Electric Motors
Recent technical papers make it clear: the performance of advanced electric motors—especially high‑density PMSM, IPMSM, and axial‑flux designs—is directly tied to the characteristics of the inverter that powers them.
How SiC enhances motor performance
- Expands the constant‑power speed region
- Enables more precise field‑oriented control
- Reduces rotor and stator heating
- Delivers cleaner, smoother torque
- Improves regenerative braking capture
SAE’s analysis confirms that pairings of PMSM/IPMSM with SiC‑based high‑voltage inverters produce significantly better real‑world efficiency than traditional silicon IGBT systems.
This is why nearly all upcoming premium EVs—and many commercial platforms—are migrating toward the SiC + 800V combination.

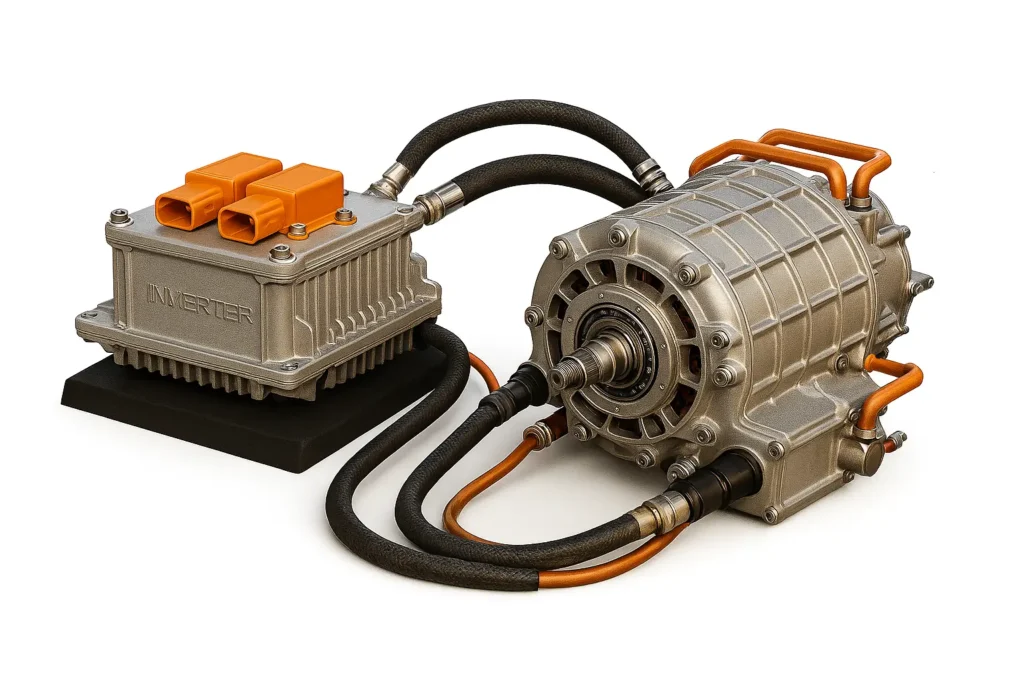

4. Axial Flux Motors: The Architecture That Needs SiC the Most
One of the most exciting developments in electric motors is the rise of axial‑flux permanent‑magnet motors (AFPM). These motors, often described as “pancake motors,” deliver exceptional torque density and compactness. Research from both SAE and ResearchGate provides compelling evidence:
- Axial‑flux motors can offer up to twice the torque density of traditional radial‑flux PMSMs.
- They achieve major reductions in weight, sometimes up to 50%.
- Their large surface area enhances thermal dissipation—critical in compact EV platforms.
- Finite‑element‑based analyses show improvements in efficiency and torque ripple when paired with high-frequency SiC inverters.
However, their compact geometry also makes them sensitive to heat buildup and switching losses. This is exactly why SiC inverters are crucial—they dramatically cut thermal loading and delivering cleaner electromagnetic control.
Without SiC, axial‑flux machines would struggle to maintain performance under real-world conditions, especially in the high-speed or high‑load scenarios required by modern EVs.
5. Thermal Management: The Invisible Battle SiC Helps Win
Most EV drivers never think about thermal management—but in engineering terms, it’s one of the biggest constraints. Cooling systems are among the heaviest and least efficient subsystems in an EV.
SiC solves several long-standing problems:
- Less heat generated → smaller radiators
- Lower continuous losses → reduced coolant flow
- Stable high‑temperature operation → simpler packaging
- Minimal need for heavy heat sinks
SAE’s research confirms that SiC allows manufacturers to downsize cooling components while maintaining or even improving long-term reliability.
This doesn’t just improve efficiency—it frees up valuable space and weight for other vehicle systems, such as batteries or cargo storage.
6. Faster & Safer Fast‑Charging: The Consumer Benefit Everyone Understands
While engineers often focus on torque ripples or switching energies, the most visible consumer-facing benefit of SiC + 800V is ultra-fast charging.
With an 800V system:
- EVs can accept more power with less current-induced stress
- Packaging of DC fast‑charging components becomes easier
- Heat generation during charging dramatically drops
Add SiC, and the system can handle high-power pulses with minimal degradation. The NVH‑focused axial‑flux study from SAE also highlights that SiC’s smoother switching characteristics contribute to more stable operation during fast-charging events—helping maintain long-term powertrain health.
This is why SiC + 800V has become the default architecture for premium fast-charging platforms.

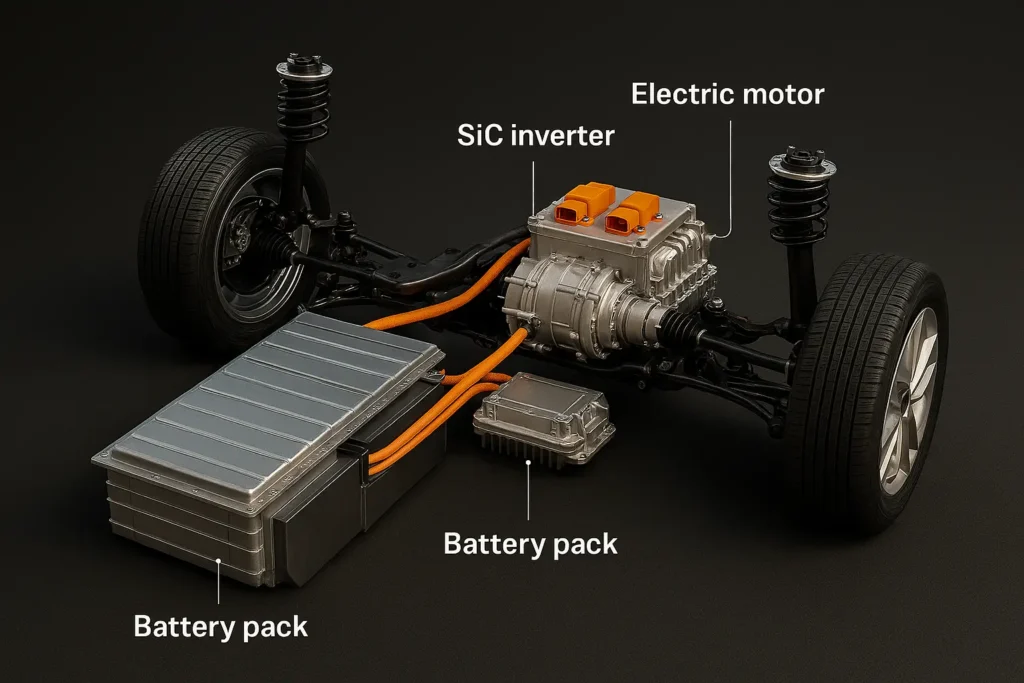

7. High‑Voltage Architectures Enable True System‑Level Integration
The most overlooked advantage of SiC + 800V is what SAE researchers call the EV “Integration Era.” Instead of independent subsystems, EVs are now engineered holistically, with tight coupling between:
- The motor
- The inverter
- The reduction gearbox
- Thermal management
- Charging hardware
- Vehicle‑level control software
SAE’s 2026 paper explicitly notes that these integrated approaches deliver major improvements in efficiency, manufacturability, and performance.
SiC is the enabling technology that allows each of these systems to operate closer to the physical limits without suffering instability or thermal runaway.
This unified design philosophy marks a major departure from earlier EV platforms, which typically bolted together components originally designed for 400V systems.
8. SiC + 800V Helps Reduce Rare‑Earth Dependency (Indirectly)
Rare-earth magnets—particularly NdFeB—remain a pressure point for global EV supply chains. According to SAE analyses, PMSM motors dominate today, but reliance on rare-earth materials introduces cost volatility and geopolitical risk.
By improving efficiency across the drivetrain, SiC + 800V systems allow:
- Smaller magnets
- Lower magnet grades
- Deeper feasibility of rare-earth‑free motors like Induction Motors (IM) and SRM
- More competitive axial‑flux designs that can use different magnet configurations
In other words, SiC helps OEMs strategically rebalance their motor portfolios—and reduce exposure to supply chain shocks.
9. The Road Ahead: Why SiC + 800V Will Define the Next Decade of EVs
From the research, one trend is unavoidable:
SiC + 800V isn’t a luxury—it’s the new standard.
Research data in-depth analyses of motor and inverter technologies show that every major propulsion innovation—axial‑flux motors, multi‑motor e‑axles, high‑speed PMSM, advanced cooling systems, and lightweight SMC‑based stators—performs better in an 800V SiC environment.
And academic research from thesis projects at leading universities confirms that SiC is crucial for stabilizing high-density AFPM and PMSM architectures at modern operating speeds.
This is why nearly all 2026–2030 EV platforms will be shaped around SiC: it unlocks engineering possibilities that were simply not realistic with earlier power electronics.
EVs Using SiC + 800V Platforms — Quick Reference Table
The following table highlights production and upcoming electric vehicles that feature 800‑volt high‑voltage systems paired with SiC‑based inverters, enabling higher efficiency, faster charging, lower thermal losses, and superior power delivery.
| EV Model | Voltage Architecture | SiC Integration | Key Benefits |
| Porsche Taycan | 800V | Yes | 270 kW fast charging, high continuous power output |
| Audi e‑tron GT | 800V | Yes | Shared J1 platform with Taycan, SiC‑powered fast charging and efficiency gains |
| Hyundai Ioniq 5 (E‑GMP) | 800V | Yes | 350 kW charging, V2L capability enabled by high‑efficiency SiC inverters |
| Kia EV6 (E‑GMP) | 800V | Yes | Ultra‑fast charging, improved efficiency and thermal management |
| Lucid Air | 924V | Yes | Highest voltage in production, 300 kW fast charging, industry‑leading efficiency |
| Mercedes‑Benz Next‑Gen CLA (MMA Platform) | 800V | Yes | SiC inverter + 800V system for next‑gen Mercedes efficiency leap |
| XPeng (XPower 3.0 Platform) | 800V | Yes | SiC traction inverters for improved power density and charging performance |
| Genesis GV60 / GV90 (E‑GMP) | 800V | Yes | High‑voltage system shared with Ioniq 5/EV6, enabling rapid charging |
| Kia EV9 | 800V | Yes | Large‑segment SUV adopting SiC‑supported 800V for efficiency |
| Commercial EV Fleets (multiple OEMs) | 800V | Yes | SiC improves regenerative braking, reduces heat, boosts system efficiency |
Final Thoughts
The EV ecosystem is evolving faster than at any point in its history. Batteries may get the spotlight, but it’s the SiC + 800V powertrain foundations that are enabling the next generation of:
- Lighter EVs
- More efficient motors
- Faster charging
- Smaller thermal systems
- Higher performance under sustained loads
- Greater supply-chain stability
If you care about EV engineering, this is the revolution to watch.
