India’s 30kW WBG EV Drive System: A Strong Push Toward Advanced E‑Mobility
India has officially launched an indigenously developed 30kW WBG (Wide Band Gap) Integrated Drive System (IDS) for electric vehicles—an engineering milestone led by C‑DAC Thiruvananthapuram, in collaboration with IIT Madras and Lucas TVS, under MeitY’s NaMPET mission. The system was unveiled in Chennai by the MeitY Secretary and is positioned to reduce imports, lower system costs through localisation, and catalyse large‑scale deployment across compact passenger EVs and fleet platforms.
Why This Launch Matters for Indian EV Engineering
From Adoption to Core Technology Creation
For much of the last five years, India’s EV playbook prioritised consumer adoption (demand incentives, GST reductions) and public charging. The 30kW IDS signals a strategic pivot—from assembling vehicles to engineering the powertrain stack domestically, including motor‑inverter integration, control electronics, and thermal management. This shift is essential to cut exposure to global supply disruptions and to build an export‑ready technology base.
Target Segment: High‑Volume India Use‑Cases
Positioned at 30 kW, the drive is tuned for India’s fastest‑growing use‑cases: compact four‑wheelers, shared/fleet EVs, and urban commercial duty cycles—segments where efficiency, thermal robustness, and cost per km determine viability.
Technology Deep‑Dive: Integrated Motor–Inverter with WBG Power Electronics
What “Integrated Drive System” Means
Instead of a separated motor and inverter connected by cabling, the IDS physically and functionally integrates both into one compact, liquid‑cooled unit. Benefits include reduced parasitics, lower wiring complexity, improved EMI/EMC behaviour, higher power density, and easier vehicle packaging—especially in space‑constrained small EV platforms.
Why Wide Band Gap (SiC/GaN) is the Step‑Change
The inverter employs SiC MOSFET power modules, enabling 10–50 kHz switching with reduced conduction and switching losses, better high‑temperature performance, and downsized magnetics—translating into measurable efficiency gains over the operating envelope and longer range for the same battery energy. These are the same physics advantages that have made WBG devices the global default in next‑gen EV traction systems.
Digital Control & Protection
A DSP‑based digital controller governs four‑quadrant operation, torque‑speed programmability, and protective responses (DC bus under/over‑voltage, input under/over‑voltage, over‑temperature, short‑circuit/over‑current)—critical for fleet duty cycles with frequent stop‑start and regenerative events.

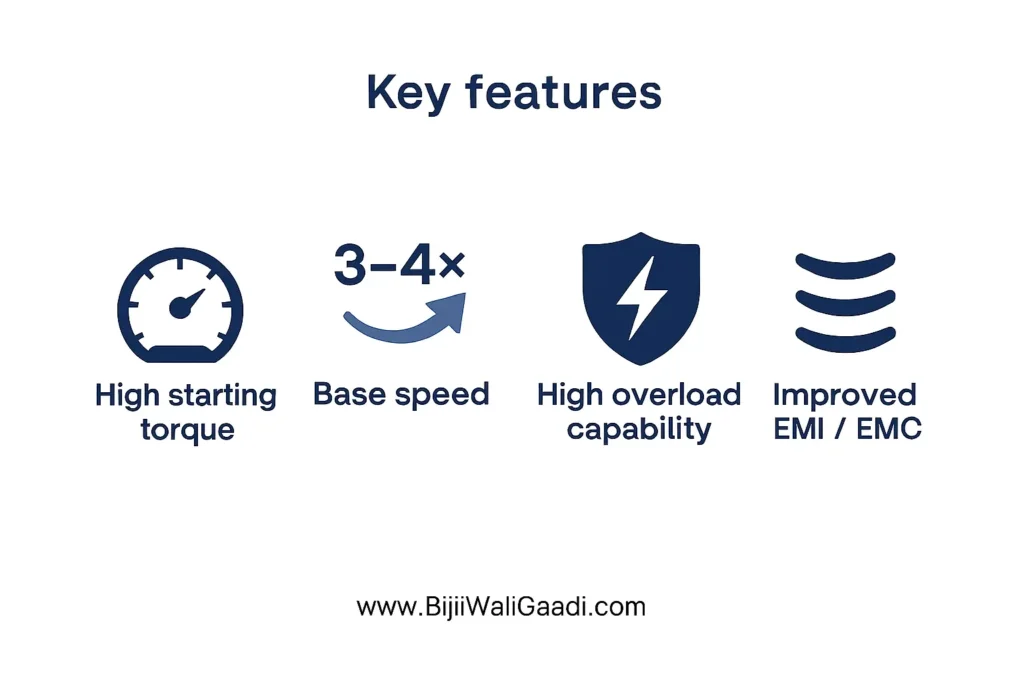

Key Features and It’s Engineering Implications
- High starting torque with configurable torque‑speed curves improves drivability in congested urban gradients and under payload, while supporting duty‑cycle optimisation by fleet operators through software‑defined profiles.
- Wide operating speed—3–4× base speed—extends usable envelope without resorting to multi‑speed gearboxes, simplifying the drivetrain and improving reliability.
- Higher overload capability than a conventional IPMSM system allows short bursts for overtakes/grades without thermal derating penalties.
- High efficiency over wide speed/torque range, aided by SiC switching, reduces battery energy draw per km and operating cost—critical for TCO‑sensitive Indian fleets.
- Improved EMI/EMC behaviour reduces interference with vehicle networks/sensors—important as Indian EVs add ADAS/telematics.
- Low acoustic noise and torque ripple enhance passenger comfort and NVH performance, a hallmark of premium EV experience now expected in mass segments.

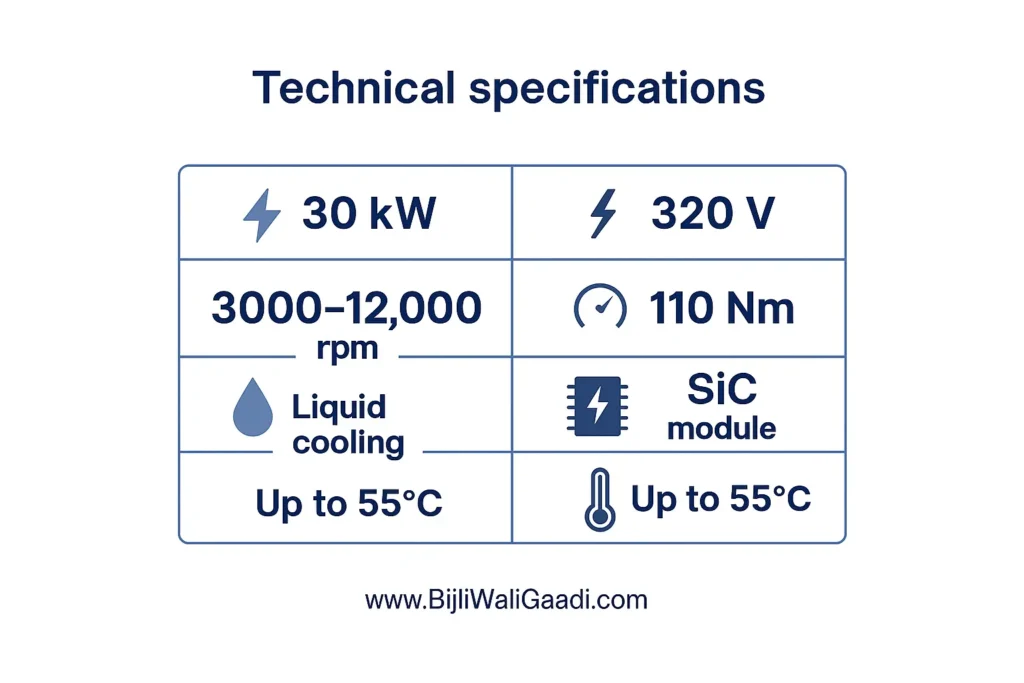

Full System Specifications (from PIB)
| Parameter | Value |
| Continuous Power | 30 kW |
| DC Bus Voltage | 320 V |
| Motor Technology | IPMSM |
| Continuous RMS Current | 200 A |
| Continuous Torque | 110 Nm |
| Base Speed | 3000 rpm |
| Operating Speed Range | up to 12,000 rpm |
| Sensor | Absolute Encoder |
| Switching Frequency | 10–50 kHz |
| Cooling | Liquid |
| Switching Device | SiC MOSFET Power Module |
| Modes | Four‑Quadrant Variable Speed Drive |
| Protection | DC bus under/over‑voltage, short‑circuit/over‑current, input under/over‑voltage, over‑temperature |
| Ambient Temperature | Up to 55 °C |
| Digital Controller | DSP‑based |
Engineering note: The IPMSM choice balances torque density and field‑weakening capability, enabling high base torque with efficient high‑speed operation—well‑matched to India’s mixed urban‑suburban run profiles.
Manufacturing Readiness and Commercialisation Path
The drive was designed, fabricated, validated with Lucas TVS and is now declared ready for commercialisation, creating immediate pathways for Tier‑1/Tier‑2 suppliers in power modules, control PCBs, magnetics, coolant plates, and HV interconnects. The programme is explicitly aimed at reducing import content and supporting scalable manufacturing aligned with PLI‑led localisation.
MSME implications: The release highlights opportunities in power electronics manufacturing, thermal systems, and control hardware—opening doors for specialised Indian MSMEs to integrate into an EV value chain traditionally dominated by imported sub‑assemblies.

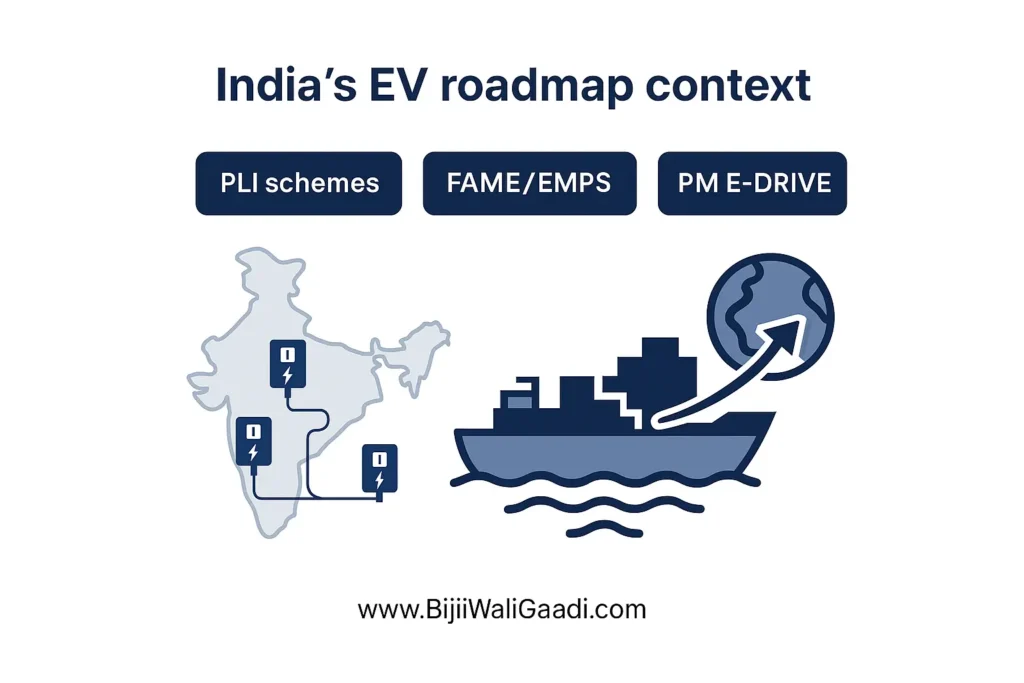

How This Fits India’s EV Roadmap
Policy & Programme Continuity
The IDS launch complements national initiatives—including PLI for ACC batteries, PLI Auto, FAME‑II/EMPS, and PM E‑DRIVE—that together push demand, supply and infrastructure. This policy stack is already tied to record EV registrations and charging expansion, indicating that technology indigenisation can land in a receptive market.
Infrastructure & Demand Momentum
PIB and ministry briefings over 2024–26 repeatedly point to accelerating EV sales, especially two‑wheelers and urban fleets, with government support targeting both charging infra densification and domestic EV manufacturing ecosystems—precisely the environment where an integrated 30kW WBG drive can scale quickly.
Competitive Positioning: What Makes This Unit Export‑Capable
- WBG (SiC) core: aligns with global best‑in‑class inverters for high efficiency and compactness.
- Thermal headroom & liquid cooling: important for hot climates and high utilisation fleets across emerging markets.
- EMI/EMC improvements & low NVH: meet increasingly stringent standards, enabling easier homologation.
- Software‑defined torque maps: fleet‑specific optimisation, a key differentiator for TCO.
The combination points to a Make in India, Make for the World proposition: small EV platforms in Asia, Africa, Latin America, and EU L‑category vehicles can adopt a cost‑effective, high‑efficiency Indian drive.
Outlook: What Comes Next for India’s EV Power Electronics
Expect near‑term focus on cost‑down engineering, local content ramp‑up (e.g., busbars, baseplates, magnetics), and design for manufacturability to reach automotive‑grade yields. In parallel, India’s battery cell PLI and charging standards efforts should lift ecosystem maturity—allowing OEMs to spec the 30kW WBG IDS across multiple platforms with minimal re‑engineering.
In the medium term, deeper localisation of SiC device packaging, power module assembly, and IPMSM rotor/stator manufacturing will be the levers that decide export pricing power and true import substitution at scale.
