Why 800V EV Systems Charge Faster Than 400V: An Architecture Breakdown

Key Take-away: The primary difference is charging speed and efficiency. 800V systems (600V–900V range) allow for ultra-fast charging (10–80% in <25 minutes) and use thinner cables by doubling voltage to halve current, thereby reducing heat loss by 75%.

400V vs 800V EV architecture: Electric vehicles are evolving rapidly. While early EV conversations focused mainly on driving range and charging availability, modern EV engineering is increasingly defined by something far less visible—but far more important: voltage architecture. There is transition happening into the EV electrical architecture — specifically the transition from 400V to 800V systems.

This shift is not just a marketing specification. It fundamentally changes how energy flows inside an electric vehicle and directly affects:

• Charging speed
• Powertrain efficiency
• Cable size and vehicle weight
• Thermal management
• Motor performance

Understanding the difference between 400V and 800V EV architecture provides insight into why newer electric vehicles charge faster and deliver better efficiency.

This article explains the engineering principles, battery design approach, system-level impact, and real-world vehicle examples behind these two architectures.

Why Voltage Architecture Matters in Electric Vehicles

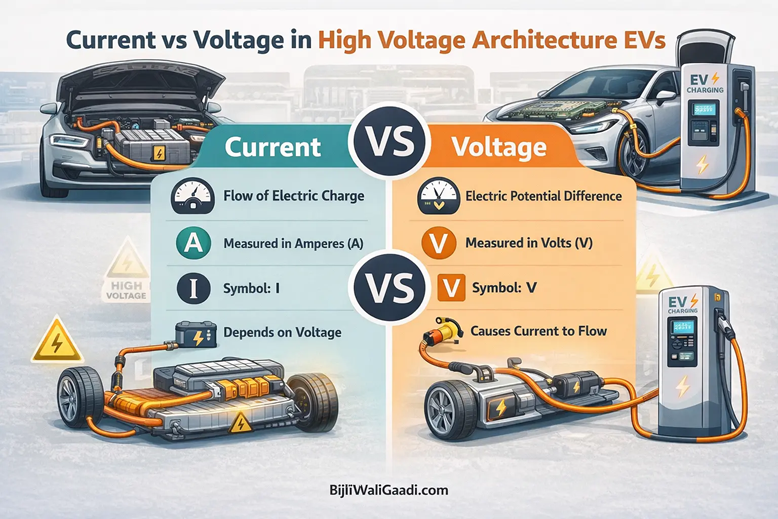

At the core of every EV powertrain lies a basic electrical relationship:

Power = Voltage × Current

P = V × I

Where:

• P = Power delivered to the motor
• V = System voltage
• I = Current flowing through the system

For a given power requirement, increasing voltage allows the system to operate at lower current.

This is extremely important because current generates heat inside electrical systems. Heat losses follow the equation:

Power Loss = I²R

This means:

• Doubling current → 4× heat loss
• Halving current → 75% reduction in losses

This fundamental electrical relationship is the core reason the EV industry is gradually transitioning toward higher-voltage architectures.

Higher voltage enables:

• Lower current flow
• Reduced heat generation
• Smaller cables
• Higher efficiency

Evolution of EV Voltage Architecture: From 48V to 800V Systems

Electric vehicles did not start with high-voltage systems. The architecture evolved gradually as power and efficiency requirements increased.

Early EV Systems: 48V to 120V Architectures

The first electric vehicles used relatively low-voltage systems. Limitations included:

• Low power output
• Poor efficiency
• Short driving range
• Heavy wiring harnesses

These systems were mainly suitable for low-speed vehicles.

Why 400V Became the Standard EV Battery Architecture

Modern EVs widely adopted 400V battery systems because they offered a good balance between performance and system complexity.

Advantages included:

• Improved efficiency
• Higher power capability
• Faster charging compared to early EVs
• Compatibility with most charging infrastructure

Today, most mass-market electric vehicles still use 400V systems.

Why Automakers Are Moving Toward 800V EV Platforms

As EV technology matured, manufacturers began pushing the limits of 400V platforms.

Challenges included:

• High charging currents
• Cable heating
• Charging speed limitations

To overcome these issues, next-generation EV platforms adopted 800V electrical architectures, which allow much higher charging power while maintaining manageable current levels.

400V vs 800V EV Architecture: Key Technical Differences

Parameter	400V Architecture	800V Architecture
Typical Voltage Range	300V – 500V	600V – 900V
Current Required for Same Power	Higher	Lower
Charging Speed	Moderate	Very fast
Cable Thickness	Thicker	Thinner
Efficiency at High Load	Lower	Higher
Thermal Loss	Higher	Lower
System Cost	Lower	Higher
Infrastructure Compatibility	Widely available	Limited but growing

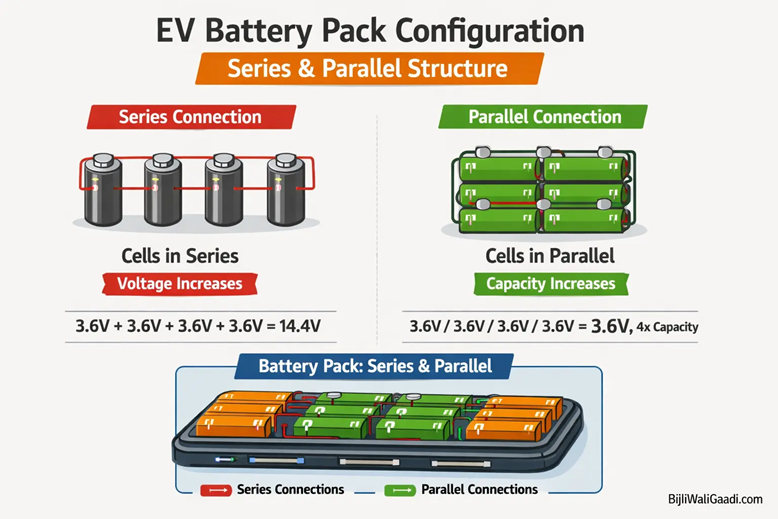

How an EV Battery Pack is Designed (Series vs Parallel Cells)

At the heart of every electric vehicle sits a carefully engineered battery pack built from thousands of lithium-ion cells. These cells are not simply stacked together—they are arranged in precise series and parallel configurations to achieve the required voltage, capacity, and energy output.

Series Connection: Cells connected in series increase voltage. Voltage adds up while capacity remains constant.

Parallel Connection: Cells connected in parallel increase capacity (Ah). Capacity adds up while voltage remains constant.

How Engineers Calculate Series and Parallel Cells in an EV Battery Pack

When designing an EV battery pack, engineers determine how many cells are required in series and in parallel to meet the target voltage and energy capacity.

Two simple calculations guide the process.

1. Number of Cells in Series (Voltage Requirement)

The number of cells connected in series determines the pack voltage.

Formula

Where:

• Ns = number of cells in series
• Vpack = desired battery pack voltage
• Vcell = nominal voltage of one battery cell

Example

Target pack voltage = 400 V

Cell voltage = 3.6 V

Engineers typically round to 110 or 112 cells depending on the design margin.

2. Number of Cells in Parallel (Capacity Requirement)

Parallel cells increase the amp-hour capacity of the battery pack.

Formula

Where:

• Np = number of cells in parallel
• Cpack = required pack capacity (Ah)
• Ccell = capacity of one cell

Example

Required capacity = 140 Ah

Cell capacity = 3.5 Ah

So the pack configuration becomes: 110s40p

Total Number of Cells

For the example:

This is exactly the value used in the pack design example later in the article.

Designing a 400V EV Battery Pack

Consider a lithium-ion cell with:

• Nominal Voltage = 3.6 V
• Capacity = 3.5 Ah

To build a battery pack with 55.44 kWh energy capacity, one possible configuration is:

400V Pack Configuration

Parameter	Value
Series Cells	110
Parallel Groups	40
Total Cells	4,400
Nominal Voltage	396V
Capacity	140 Ah
Total Energy	55.44 kWh

Architecture: 110s40p

This configuration provides a typical ~400V EV battery pack.

Designing an 800V EV Battery Pack

Using the same cell, the architecture changes to achieve higher voltage.

800V Pack Configuration

Parameter	Value
Series Cells	220
Parallel Groups	20
Total Cells	4,400
Nominal Voltage	792V
Capacity	70 Ah
Total Energy	55.44 kWh

Architecture: 220s20p

An important engineering observation emerges here: even though the pack voltage doubles, the total number of cells remains unchanged—the architecture simply redistributes them between series and parallel connections.

Current Flow Comparison: 400V vs 800V Systems

Assume a vehicle requires 40 kW power during driving.

System	Voltage	Current Required
400V EV	400V	100 A
800V EV	800V	50 A

The 800V system requires roughly half the current. The lower current directly reduces heat losses throughout the system.

How Voltage Architecture Affects EV Battery Performance

Although the number of cells remains the same, higher voltage architecture changes how the battery behaves.

Benefits of 800V Battery Architecture

• Reduced current flow
• Lower heat generation
• Improved efficiency
• Reduced stress on auxiliary components
• Better thermal stability

Key components/systems:

Component	400V Impact	800V Impact
Inverter	Silicon IGBT (Standard)	SiC MOSFET (Higher Efficiency)
Cables	50 mm² (Heavy/Hot)	12.5 mm² (Light/Cool)
Motor	Standard Copper Volume	30–40% Less Copper

All the components and systems experience lower thermal load in 800V systems.

What Actually Changes When an EV Moves from 400V to 800V?

Electric Motor Design in 400V vs 800V EVs

The electric motor converts electrical energy into mechanical torque.

While the basic motor structure remains similar, voltage architecture significantly influences motor design.

For the same power output:

Parameter	400V Motor	800V Motor
Current Draw	Higher	Lower
Copper Usage	Higher	Lower
Thermal Loss	Higher	Lower
Power Density	Lower	Higher

Because current is lower in 800V systems, the cross-sectional area of copper windings can be reduced.

This can reduce motor size by 30–40% while maintaining the same power output.

Higher voltage motors also benefit from improved efficiency when paired with Silicon Carbide (SiC) power electronics.

Raising voltage to 800V halves current for the same power—cutting I²R losses across the harness and inverter.
(Read more: The remarkable advantage of SiC + 800V systems in EVs)

Inverter Technology in 400V vs 800V EV Platforms

The inverter converts DC electricity from the battery into AC electricity for the motor.

It also enables regenerative braking.

How 800V Architecture Reduces Motor Size by 40%?

Parameter	400V Inverter	800V Inverter
Semiconductor Type	Silicon IGBT	SiC MOSFET
Voltage Stress	Lower	Higher
Efficiency	Good	Higher
Cooling Requirement	Higher	Lower
Size	Moderate	Slightly larger

Without advanced semiconductors, an 800V inverter would become significantly larger. However, the use of SiC MOSFET technology allows modern 800V inverters to remain compact while improving efficiency.

On-Board Charger Differences

The on-board charger converts AC electricity from the grid into DC electricity for the battery.

Higher voltage systems require:

• Higher rated semiconductors
• Improved insulation
• Larger electrical clearance

Semiconductor Rating	Moderate	Higher
Insulation Requirement	Standard	Higher
Efficiency	Good	Slightly higher
Size	Compact	Slightly larger

Typical 800V chargers are 10–20% larger, but improvements in power electronics continue to reduce this difference.

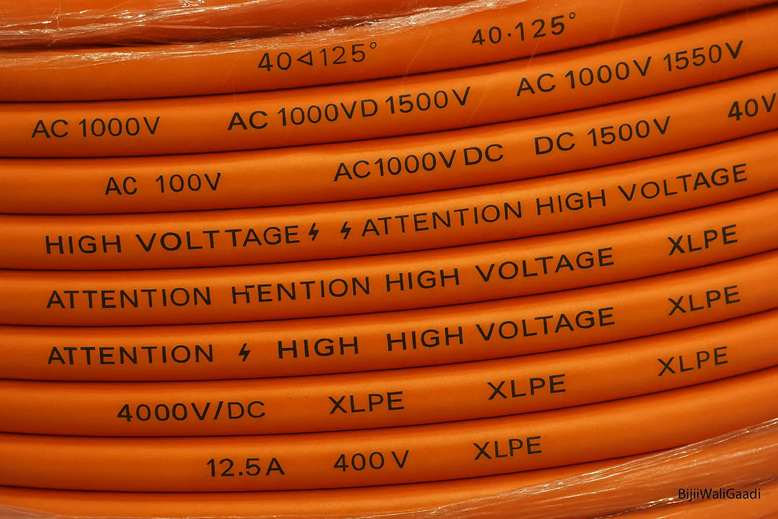

High-Voltage Cable Differences

High-voltage cables connect the major powertrain components. Typical EV wiring includes: 1–1.5 km of low-voltage wiring and 20–30 meters of high-voltage cables

But when we upgrade the EV architecture not just it boosts efficiency—we also thin down those chunky copper cables. That means less weight, less heat, and happier electrons. Here’s the quick breakdown:

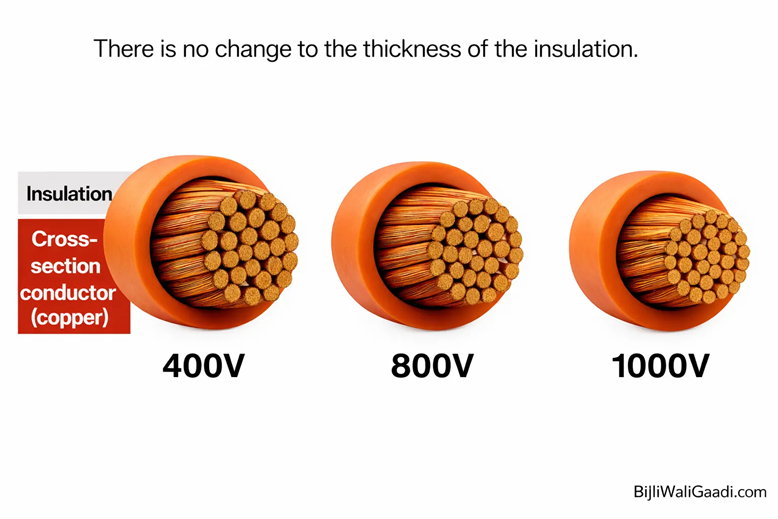

EV High‑Voltage Cable Comparison

Voltage Level	Cable Size	Power Delivered	Heat Loss
400V System	50 mm²	200 kW	About 85 W/m — pretty toasty
800V System	12.5 mm²	200 kW	Much cooler — heat loss drops a lot
1000V System	8 mm²	200 kW	Even better — heat loss gets cut further

Despite thicker insulation requirements, the reduction in conductor size can reduce total cable volume by up to 33%. This also reduces vehicle weight, improving efficiency.

Fast Charging: The Biggest Advantage of 800V

The most visible advantage of 800V architecture is ultra-fast charging capability.

Charging power is determined by: Power = Voltage × Current

Most charging stations limit current to protect cables and connectors. This creates a bottleneck for 400V vehicles.

Charging Example

Parameter	400V OBC	800V OBC
Semiconductor Rating	Moderate	Higher
Insulation Requirement	Standard	Higher
Efficiency	Good	Slightly higher
Size	Compact	Slightly larger

Because of the higher voltage, 800V vehicles can deliver much higher charging power without increasing current.

Real-World EV Charging Time: 400V vs 800V

EV Architecture	Typical Fast Charging Power	10–80% Charging Time
400V EV	120–150 kW	30–45 minutes
800V EV	250–350 kW	18–25 minutes

This is why premium EV manufacturers are rapidly transitioning to higher voltage systems.

The recent example is BYD’s new FLASH Charging Technology, paired with the 2nd Generation Blade Battery, fundamentally reduces real-world charging times.

⚡️10% to 70% state of charge in 5 minutes.
⚡️10% to 97% state of charge in 9 minutes.

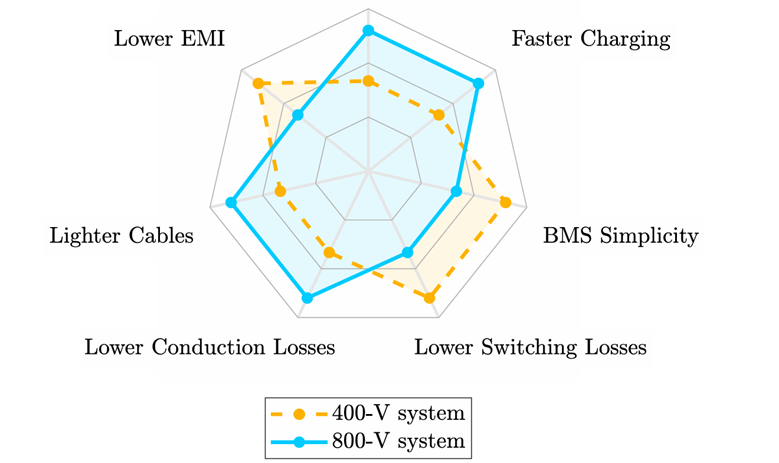

Advantages of 800V EV Architecture

• Faster Charging – Higher voltage enables significantly faster charging speeds.
• Higher Efficiency – Lower current reduces electrical losses across the powertrain.
• Reduced Vehicle Weight – Smaller cables and optimized motors reduce vehicle mass.
• Improved Thermal Performance – Lower heat generation simplifies cooling systems.
• Better Power Delivery – Higher voltage allows more efficient power delivery to the motor.

Challenges of 800V Architecture

Despite the advantages, 800V systems also introduce new engineering challenges. Higher Component Cost -High-voltage components and SiC semiconductors remain expensive.

Charging Infrastructure Limitations – Most charging stations were originally designed for 400V vehicles.

Increased System Complexity – Higher voltage requires:

• Improved insulation
• Additional safety systems
• Specialized design standards

Compatibility Issues – Some 800V vehicles require DC-DC conversion to charge efficiently on older 400V chargers.

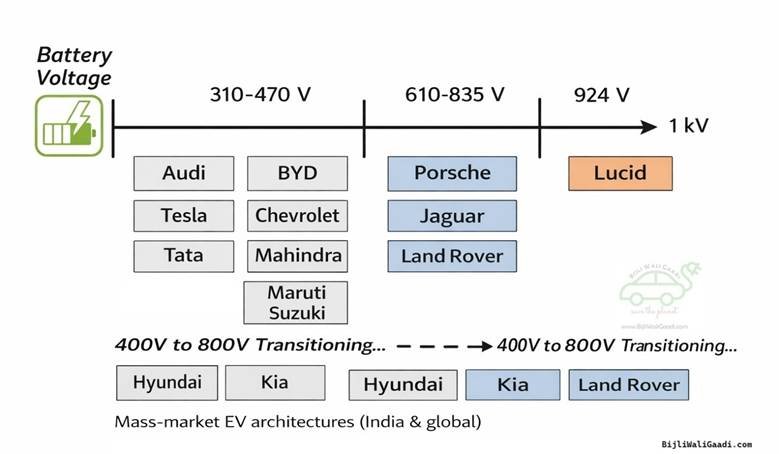

Electric Vehicles Using 400V vs 800V Architecture

Our study of current EV platforms shows that automakers operate across a wide battery voltage spectrum, ranging from around 310V to nearly 1000V. Most mainstream manufacturers—including Audi, Hyundai, Kia, and Tesla—currently use architectures within the 400V range (roughly 310–470V). This voltage class has long been the industry standard because it offers a balanced combination of performance, efficiency, and cost.

However, many of these manufacturers are gradually transitioning toward 800V architectures, which enables faster charging speeds, improved drivetrain efficiency, and lighter electrical components by reducing the current required to deliver the same power.

In the mid-to-high voltage range (approximately 610–835V), several premium brands such as Jaguar, Land Rover, and Porsche are already adopting or developing higher-voltage systems. These platforms are particularly beneficial for high-performance EVs, where faster charging capability and higher power output are important.

At the upper end of the spectrum, Lucid operates at around 924V, approaching the 1000V level. This ultra-high voltage architecture allows for extremely fast charging and improved power delivery, demonstrating how future EV platforms may evolve as manufacturers continue pushing the limits of electric powertrain design.

Why Indian OEMs Are Sticking to 400V for Now?

India’s EV landscape is not just unique—it’s complex, cost-sensitive, and heavily shaped by real on‑ground conditions. So while global manufacturers are racing toward 800V platforms, Indian OEMs like TATA and Mahindra are intentionally staying with tried‑and‑tested 400V systems.

And honestly, given how India’s EV ecosystem operates today, it’s the sensible engineering choice.

---

1. India’s Cost-Sensitive Market Rewards Practical Engineering

Indian EV buyers value reliability and affordability far more than ultra‑fast charging or extreme performance.
As someone who works directly in EV development, this reality shows up again and again.

An 800V platform adds cost because it requires:

• SiC-based inverters
• High-spec insulation
• Tighter manufacturing tolerances
• Specialized safety components
• Higher-rated connectors & charging hardware

For Indian mass-market EVs (₹8–25 lakh), these added costs do not translate to proportional customer value.

This is why TATA Nexon EV, Punch EV, Curvv EV, and Mahindra BE lineup all continue with 400V—they hit the price-to-performance sweet spot Indian buyers expect.

---

2. India’s Charging Infrastructure Is Still Primarily 400V

Most of India’s public fast chargers (Tata Power, Statiq, Jio‑BP, Zeon, ChargeZone) output is : 60–120 kW at ~400–500V

That means:

Even if an Indian OEM builds an 800V car, India currently lacks the high-voltage charging network needed to unlock the “fast charging” benefit.

As a result, an 800V Indian EV would end up charging no faster than a well-optimized 400V EV, defeating the whole purpose.

The battery can be recharged through AC or DC fast charging depending on the vehicle’s charging architecture.
(Read more: Charging Infrastructure in India (2026)
Written for people who actually need to charge — on weekdays in the city and on highways over the weekend.

---

3. Real-World Indian Driving Does Not Demand 800V Performance

Indian EVs operate mostly in:

• Congested city traffic
• Short commutes
• Stop‑go cycles
• High heat + constant AC load
• Occasional weekend highway trips

In these conditions:

• 120–150 kW charging is more than enough
• High power density motors offer little real advantage
• Thermal loads remain manageable

Simply put, the real-world benefit of 800V doesn’t justify its higher system cost for India—not yet.

Read more: Why EV Range Drops in Real Indian Conditions: A Clear, Research‑Backed Explanation
A clear, research‑based look at why EV range drops in real Indian conditions, covering heat, traffic, road quality, and everyday driving patterns.

4. Indian Battery Packs Are Smaller, So Gains from 800V Are Limited

Most Indian EVs use 30–60 kWh packs.
800V shines only when pack sizes exceed 70–80 kWh, as seen in IONIQ 5, EV6, Porsche Taycan, etc.

For smaller packs:

• Maximum charging power isn’t the bottleneck
• Heat management is simpler
• 400V architecture remains highly efficient

So 800V adds complexity without meaningful real‑world improvement for current Indian EV sizes.

The electric motor receives energy from the battery pack, which is the primary energy storage system in an electric vehicle. Modern EV batteries use advanced lithium-ion chemistry to achieve high energy density and long driving range.
(Read more: Complete Guide to EV Batteries in India)

---

5. Local Supply Chain Is Optimized for 400V Components

From my industry-side experience, Indian suppliers today are deeply standardized around 400V:

• Harnesses
• Busbars
• HV connectors
• Fuses
• BMS hardware
• Inverters & OBCs

Switching to 800V would require:

• New testing standards
• New insulation levels
• New DC fast-charge validation
• Component requalification

Indian OEMs plan to transition gradually as local suppliers scale up.

---

6. 400V Systems Offer Higher Reliability in India’s Harsh Conditions

India challenges EVs more than any western market:

• Extreme heat (40–50°C summers)
• Dust ingress
• Humidity
• Rough roads & vibrations
• Voltage fluctuations in AC charging

400V systems, with their lower insulation stress and simpler design, deliver higher long-term reliability.

OEMs prioritise what works across Bangalore rain, Rajasthan heat, and Delhi dust—not just what looks good in a spec sheet.

---

Bottom Line: India Will Shift to 800V, But Only When the Ecosystem Is Ready

Indian OEMs are not behind—they are being pragmatic.

As the ecosystem matures:

• 350 kW chargers arrive
• Larger battery packs become common
• SiC component prices fall
• EVs move to ₹25–40 lakh+ brackets

…you’ll see TATA, Mahindra, and others introduce 800V platforms too.

For today, 400V gives Indian drivers the best balance of: cost, reliability, infrastructure compatibility, and real-world performance.

Which EVs Use 400V vs 800V Architecture?

Example vehicles include:

400V EV Platforms

• TATA Nexon EV
• TATA Curve EV
• Mahindra BE 6 / BE 6e
• Mahindra XEV 9e

• Tesla Model 3
• Tesla Model Y
• Nissan Leaf
• Chevrolet Bolt
• Volkswagen ID.4

(Note: Most mass‑market Indian EVs from inhouse brand TATA or Mahindra use 400V EV architecture)

800V EV Platforms

• Porsche Taycan
• Porsche Macan Electric
• Hyundai IONIQ 5
• Kia EV6
• Lucid Air
• Audi e-tron GT

Future of EV Voltage Architecture: 800V, 1000V and Beyond

The transition from 400V to 800V represents one of the most significant engineering developments in electric vehicle technology.

Advantages and drawbacks of increasing voltage range in electric vehicles. Source – Link

While 400V systems will remain dominant in cost-sensitive vehicles for the near future, the industry trend is clearly moving toward higher voltage platforms.

Future developments may include:

• 1000V EV architectures
• Next-generation SiC and GaN semiconductors
• Ultra-fast 500 kW charging stations
• More compact power electronics

As charging infrastructure evolves and component costs decline, high-voltage architecture will likely become standard in many electric vehicles.

Final Thoughts

The move from 400V to 800V EV architecture is not just a specification upgrade — it represents a fundamental shift in electric vehicle engineering. By increasing system voltage, automakers can dramatically reduce current flow, which improves efficiency, enables faster charging, and simplifies thermal management.

While 400V systems laid the foundation for the modern EV industry, 800V platforms are shaping the future of high-performance electric mobility. As charging technology improves and infrastructure expands, high-voltage EV architecture will play a key role in making electric vehicles faster, more efficient, and more convenient to use.

FAQs: 400V vs 800V EV Architecture

1. What is the main difference between 400V and 800V EV architecture?

The primary difference is the operating voltage of the vehicle’s electrical system.
400V EVs operate between 300–500V, while 800V EVs run between 600–900V.
Higher voltage reduces current flow, lowering heat and enabling faster charging with thinner cables and better efficiency.

2. Why do 800V EVs charge faster than 400V EVs?

Charging power depends on Power = Voltage × Current.
Since most chargers have current limits (for safety), doubling voltage allows nearly 2× higher charging power at the same current, resulting in much faster charging times.

3. Are 800V EVs more efficient than 400V EVs?

Yes. 800V systems draw lower current for the same power output, reducing I²R heat losses in cables, connectors, and power electronics.
This improves efficiency, reduces heat generation, and lowers cooling requirements.

4. Do 800V EVs need special charging stations?

No, 800V EVs can charge on 400V chargers.
However, to achieve ultra-fast charging (250–350 kW), they require high-power chargers that support higher voltage levels. Some 800V EVs use DC‑DC boost converters to remain compatible with older 400V charging infrastructure.

5. Can 800V EVs use thinner cables?

Yes. Because current is lower, 800V systems can use thinner, lighter high-voltage cables.
This reduces copper usage, lowers vehicle weight, and improves packaging efficiency.

6. Do 400V and 800V EVs use the same number of battery cells?

Often, yes. The total cell count can remain the same.
The difference lies in series vs parallel configuration:

• 400V packs: more parallel groups, fewer series cells
• 800V packs: more series cells, fewer parallel groups
  This changes voltage without changing the total energy.

7. Are 800V EVs more expensive to manufacture?

Currently, yes.
Reasons include:

• Higher-rated insulation and components
• Silicon Carbide (SiC) MOSFET‑based inverters
• Stricter safety and clearance requirements
  As SiC technology becomes cheaper, cost differences will shrink.

8. Which is better—400V or 800V EV architecture?

It depends on the vehicle type:

• 400V: More affordable, suitable for mass-market EVs
• 800V: Ideal for premium, performance, and long‑range EVs requiring ultra-fast charging and high efficiency
  Both have strong use cases.

9. Do 800V EV motors perform better?

Yes. With lower current, motors in 800V systems use thinner copper windings, improving efficiency, reducing heat, and increasing power density.
This enables more compact motors with equal or higher power output.

10. Why aren’t all EVs using 800V architecture yet?

Barriers include:

• Higher manufacturing cost
• Limited 800V fast-charging infrastructure
• Complexity in high-voltage safety design
  As technology matures, more automakers are transitioning toward 800V and even 1000V systems.

11. Is 1000V EV architecture the future?

Yes, many experts expect next-generation EVs—especially luxury and long-range models—to move toward 900–1000V systems.
This will allow:

• 350–500 kW charging
• More efficient power electronics
• Even lighter cabling and better thermal performance

12. Which EVs use 400V vs 800V architecture?

400V Examples:
TATA Nexon EV, TATA Curvv EV, Mahindra BE line, Tesla Model 3/Y, Nissan Leaf, VW ID.4.

800V Examples:
Porsche Taycan, Hyundai IONIQ 5, Kia EV6, Audi e‑tron GT, Lucid Air (approx. 924V).

———————-
