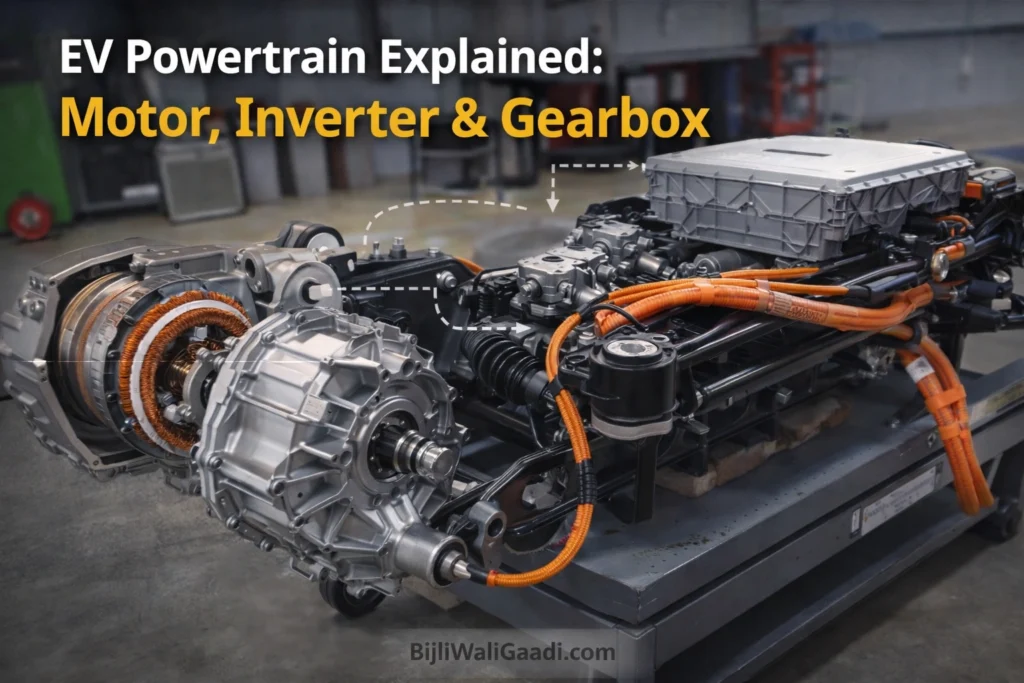

The Complete EV Powertrain Guide: Motor, Inverter & Gearbox Explained
Inside the EV Powertrain: Know everything about the Powerful System Driving the Electric Vehicle
What is an EV powertrain?
In an electric vehicle (EV), the EV powertrain is the system responsible for converting electrical energy stored in the battery into mechanical motion at the wheels. It usually includes the electric motor, the traction inverter, a reduction gearbox, and the differential. In everyday conversations, people often use the term ‘EV powertrain’ to refer to this whole group of components, and sometimes they even count the battery pack as part of it.
How Power Flows Through an EV powertrain
Battery → Inverter → Motor → Gearbox → Differential → Wheels

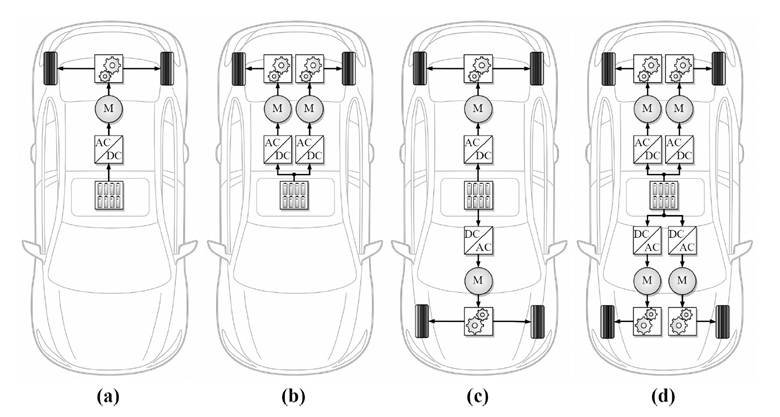

Standard electric powertrain concepts in BEVs: (a) single motor rear-wheel drives (RWDs), (b) dual-motor RWDs, (c) dual-motor all-wheel drives (AWDs) and (d) quad-motor AWDs. Image credit
Electric vehicles are often described as mechanically simpler than conventional internal combustion engine (ICE) vehicles. However, this mechanical simplicity is balanced by the sophistication of the electrical, electronic, and software systems that control the drivetrain. At the heart of every EV is a carefully engineered powertrain that converts electrical energy stored in the battery into mechanical motion at the wheels, delivering instant torque, quiet operation, and high efficiency.
The figure above illustrates commonly used electric powertrain layouts in battery electric vehicles (BEVs), ranging from single‑motor rear‑wheel‑drive systems to advanced quad‑motor all‑wheel‑drive architectures. As the number of motors increases—from one to four—vehicles benefit from enhanced traction, precise torque distribution, and improved performance. These configurations highlight how motor placement and power electronics differ depending on the drivetrain.
Standard electric powertrain concepts in BEVs:
(a) single‑motor rear‑wheel drive (RWD),
(b) dual‑motor RWD,
(c) dual‑motor all‑wheel drive (AWD),
(d) quad‑motor AWD.
To understand why EVs feel fundamentally different to drive, it helps to break down the key elements of the powertrain and how they work together. In practical terms, an EV powertrain consists of three primary subsystems:
- Traction motor: converts electrical energy into rotational mechanical power
- Inverter: controls and delivers the required electrical power to the motor
- Reduction gearbox: transforms high motor speed into usable wheel torque
Supporting these main components is a sophisticated layer of power electronics, battery management, and thermal systems that ensure safe, reliable, and efficient operation.
In the following sections, we will walk through this entire process step by step—from the moment energy leaves the battery to the instant torque reaches the wheels.
Now, the basic concept of an EV powertrain is understood, it is useful to examine how these components are arranged within the broader drivetrain architecture of a modern electric vehicle
EV Drivetrain Architecture
Before diving into individual components such as motors and inverters, it is useful to first understand the broader architecture of an electric vehicle drivetrain. Unlike conventional vehicles, which rely on a chain of mechanical systems—engine, clutch, gearbox, differential, and driveshaft—EVs consolidate much of this functionality into a compact electromechanical unit.
A modern electric vehicle typically consists of the following key elements:
- High-voltage battery pack
- Battery Management System (BMS)
- Power electronics controller
- Inverter
- Traction motor
- Single-speed reduction gearbox
- DC-DC converter and onboard charger
Although each component performs a distinct function, their operation is tightly integrated through advanced software control.
To illustrate this interaction, consider the sequence that occurs when a driver presses the accelerator pedal.
First, the vehicle control system requests power from the battery. The battery supplies high-voltage direct current (DC) electricity, typically in the range of 300 to 800 volts depending on the vehicle platform. Because most traction motors operate using alternating current (AC), this electrical energy must first pass through the inverter.
The inverter converts the DC energy into three-phase AC power while precisely controlling its frequency and amplitude. This AC power is then delivered to the electric motor, where electromagnetic forces generate rotational motion.
However, electric motors typically spin at extremely high speeds—often between 10,000 and 20,000 revolutions per minute. Since vehicle wheels operate at much lower speeds, a reduction gearbox is used to convert this high rotational speed into higher torque at the wheels.
The result is a drivetrain capable of delivering smooth and immediate torque while maintaining significantly lower mechanical complexity compared with conventional automotive powertrains.
FAQ: EV Drivetrain Basics
Why do EV powertrains have fewer moving parts?
Electric motors do not require pistons, valves, camshafts, or fuel injection systems. As a result, the mechanical complexity of the drivetrain is dramatically reduced.
How efficient is an EV powertrain compared with ICE vehicles?
Electric powertrains can achieve 85–90% energy conversion efficiency, whereas internal combustion engines typically operate at 20–30% efficiency.
With the overall drivetrain architecture in mind, the next step is to explore the component that actually generates the mechanical motion in an electric vehicle—the traction motor.
Electric Motors in EVs: The Core of the Powertrain
With the overall drivetrain architecture understood, we can now examine the component that actually produces the mechanical motion in an electric vehicle: the traction motor.
The operation of an electric motor is based on the Lorentz force principle: when an electric current flows through a conductor within a magnetic field, it experiences a force. By arranging coils, magnetic materials, and electronic control systems appropriately, this electromagnetic force can be converted into continuous rotational motion.
In EVs, this rotational motion is directly responsible for turning the wheels.
Unlike internal combustion engines, which must build torque gradually as fuel burns within cylinders, electric motors are capable of producing maximum torque almost instantly. This characteristic is the primary reason electric vehicles feel so responsive during acceleration.
Several types of electric motors are used in modern EVs, each with its own advantages and engineering trade-offs.
Although the operating principle of electric motors remains the same, modern EVs employ several different motor technologies depending on efficiency targets, cost considerations, and performance requirements.
Permanent Magnet Synchronous Motors (PMSM)
The most widely used motor in today’s electric vehicles is the Permanent Magnet Synchronous Motor (PMSM).
In this design, powerful permanent magnets are embedded within the rotor. These magnets interact with the rotating magnetic field generated by the stator windings, creating a highly efficient electromagnetic coupling.
The advantages of PMSM motors include:
- High efficiency, often exceeding 95–97%
- Excellent torque density
- Compact design suitable for passenger vehicles
However, PMSM motors rely on rare-earth materials such as neodymium and dysprosium, which can increase cost and supply chain dependency.
Induction Motors
Another widely used motor type is the AC induction motor, a technology that has been used in industrial applications for more than a century.
Instead of using permanent magnets, induction motors generate a magnetic field in the rotor through electromagnetic induction. This eliminates the need for rare-earth materials.
While induction motors are robust and cost-effective, they typically operate at slightly lower efficiency than PMSM designs.
The EV industry may look like a PMSM‑dominated world today. In practice, the inverter performs far more than simple DC-to-AC conversion.
Read more: Electric Motors in Modern EVs: The Revolutionary Tech Powering the 2026 Mobility Shift
FAQ: EV Motors
Why do EV motors produce instant torque?
Torque is generated directly by electromagnetic forces, which act immediately when current flows through the motor windings.
How fast do EV motors spin?
Typical operating speeds range from 10,000 to 20,000 RPM, significantly higher than conventional engines.
While the motor is responsible for producing mechanical torque, it cannot operate independently. Precise control of the motor requires a sophisticated power electronics system known as the traction inverter.

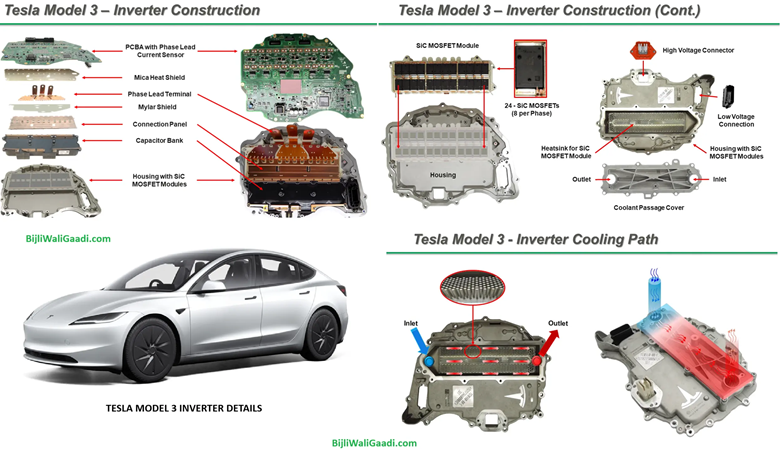

The Inverter: Controlling the Motor
Once the role of the electric motor is understood, the next logical question is: how is this motor controlled?
This is where the inverter becomes essential.
While the battery supplies direct current, traction motors require alternating current to generate rotating magnetic fields. The inverter performs the crucial task of converting DC power into precisely controlled AC power.
But the inverter does far more than simple power conversion.
Through high-frequency semiconductor switching, the inverter regulates both the frequency and amplitude of the AC signal delivered to the motor. By adjusting these parameters in real time, the inverter controls:
- Motor speed
- Motor torque
- Direction of rotation
- Regenerative braking
In modern EVs, the inverter effectively acts as the electronic brain of the powertrain, continuously coordinating energy flow between the battery and the motor.
Once electrical energy has been converted into rotational motion by the motor, the next engineering challenge is transmitting this motion efficiently to the vehicle’s wheels.
EV Gearbox: Why Most Electric Vehicles Use Only One Gear
Once electrical energy has been converted into rotational motion by the motor, the next question naturally arises: how is this motion transmitted efficiently to the wheels?
In conventional internal combustion engine vehicles, the engine produces useful torque only within a relatively narrow RPM band. As a result, multiple gears are required to keep the engine operating within its optimal range while delivering usable torque across different driving conditions. Electric motors, however, behave very differently.
An EV traction motor can generate high torque from zero RPM and can continue operating efficiently across a very wide speed range. Because of this characteristic, the majority of electric vehicles do not require complex multi-speed transmissions.
Instead, they use a single-speed reduction gearbox.
The reduction gearbox performs a critical function: it converts the high rotational speed of the electric motor into the lower speed and higher torque required at the wheels.
To achieve this, most electric vehicles rely on a single-speed reduction gearbox designed to translate the motor’s high rotational speed into usable wheel torque.
How a Single-Speed Reduction Gearbox Works

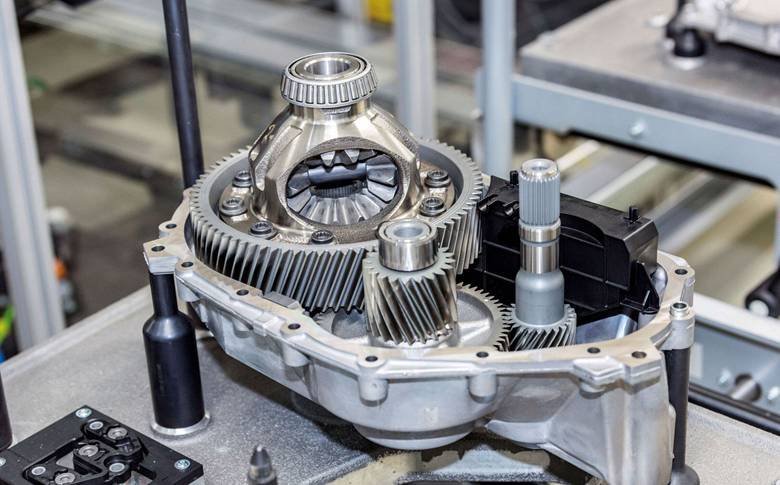

Image: This single-speed gearbox is part of the electric-drive unit (e-Axle) from Volkswagen
Electric traction motors typically operate at extremely high speeds—often between 10,000 and 20,000 RPM. Vehicle wheels, however, rotate at much lower speeds even at highway velocities.
To bridge this difference, EVs use a fixed gear reduction ratio.
For example:
- Motor speed: 16,000 RPM
- Wheel speed: ~1231 RPM
Reduction ratio ≈ 13:1
This means the gearbox reduces motor speed while multiplying torque by roughly the same factor (minus minor mechanical losses).
Because the ratio is fixed, the system eliminates the need for gear shifting, clutches, or torque converters.
The result is:
- smoother acceleration
- fewer mechanical components
- improved reliability
Although single-speed systems dominate the EV industry, certain high-performance electric vehicles use multi-speed transmissions to optimize both acceleration and top-speed efficiency.
When Do EVs Use Multi-Speed Transmissions?
Although single-speed systems dominate the EV industry, there are a few notable exceptions.
High-performance electric vehicles sometimes use two-speed transmissions to balance rapid acceleration with high top speeds.
Examples include:
- Porsche Taycan
- Rimac Nevera

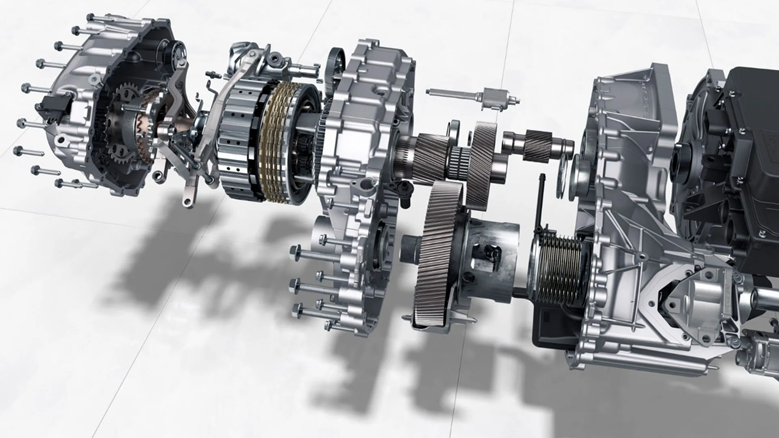

Image: Porsche Taycan two speed gearbox.
(In 1st gear the transmission ratio is 8:1 while in 2nd gear the transmission ratio increases to 15:1. This results in a very high wheel torque of almost 12,000 Nm, which allows breathtaking acceleration from a standing start.)
In these vehicles, the first gear provides extremely strong launch acceleration, while the second gear allows the vehicle to maintain efficiency at very high speeds.
However, for the vast majority of passenger EVs—especially city and commuter vehicles—a single-speed reduction drive remains the optimal solution.
FAQ: EV Gearboxes
Why don’t electric vehicles need traditional multi-speed gearboxes?
Because electric motors can produce usable torque across a much wider RPM range than internal combustion engines.
Does a single-speed gearbox limit EV performance?
For most passenger vehicles, no. The wide operating range of electric motors compensates for the lack of multiple gears.
Beyond propulsion, electric powertrains offer another important advantage: the ability to recover energy during deceleration through regenerative braking.

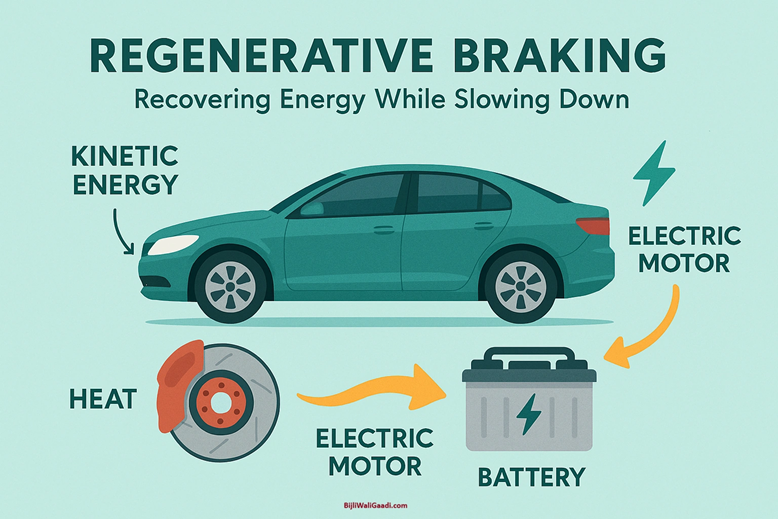

Regenerative Braking: Recovering Energy While Slowing Down
One of the defining advantages of electric vehicles lies in their ability to recover energy that would otherwise be lost during braking.
In conventional vehicles, braking converts the vehicle’s kinetic energy into heat through friction between the brake pads and rotors. This energy is completely wasted.
Electric vehicles address this inefficiency through a process known as regenerative braking.
Instead of dissipating energy as heat, the electric motor temporarily operates as a generator, converting kinetic energy back into electrical energy.
This recovered energy is then stored in the battery.
How Regenerative Braking Works
To understand regenerative braking, consider what happens when a driver lifts their foot from the accelerator pedal.
The inverter immediately changes the control strategy of the motor.
Instead of delivering power to the wheels, the inverter commands the motor to resist rotation. As the wheels continue spinning due to the vehicle’s momentum, they drive the motor.
This causes the motor to generate electricity.
The energy flow is therefore reversed:
Wheels → Motor (generator mode) → Inverter → Battery
This recovered electricity can then be used later for propulsion.
Benefits of Regenerative Braking
Research from the National Renewable Energy Laboratory suggests that regenerative braking can recover 10–25% of the energy normally lost during braking, particularly in urban driving environments.
Key benefits include:
- improved overall vehicle efficiency
- extended driving range
- reduced brake wear
- smoother deceleration
In many modern EVs, regenerative braking is strong enough to enable one-pedal driving, where the vehicle slows significantly simply by lifting off the accelerator.
FAQ: Regenerative Braking
Does regenerative braking fully replace traditional brakes?
No. Mechanical friction brakes are still required for emergency stopping and very low speeds.
Why is regenerative braking more effective in city driving?
Frequent acceleration and deceleration create more opportunities to recover energy.
Read more: Why EV Range Drops in Real Indian Conditions: A Clear, Research‑Backed Explanation
A clear, research‑based look at why EV range drops in real Indian conditions, covering heat, traffic, road quality, and everyday driving patterns.
Behind the visible components of the EV powertrain lies a sophisticated network of power electronics that manages energy flow, system coordination, and electrical safety.
Power Electronics: The Hidden Control Layer of EVs
While the motor, inverter, and gearbox form the visible core of the EV powertrain, an equally important layer exists behind the scenes: power electronics.
Power electronics systems manage the flow of electrical energy between various high-voltage components within the vehicle.
These systems ensure that energy moves safely and efficiently between:
- the battery pack
- the traction motor
- charging systems
- low-voltage vehicle electronics
Without these systems, modern EVs would not be possible.
DC-DC Converter
Although EVs operate on high-voltage battery systems—typically between 300 and 800 volts—many vehicle components still rely on the traditional 12-volt electrical system.
This includes:
- headlights
- infotainment systems
- power steering
- control modules
The DC-DC converter steps down high-voltage battery power to the required 12-volt level.
On-Board Charger (OBC)
Another key power electronics component is the on-board charger.
When an EV is connected to an AC charging source—such as a home wall charger—the onboard charger converts AC electricity into DC power suitable for charging the battery.
Typical onboard charger ratings include:
- 3.3 kW
- 7.2 kW
- 11 kW
- 22 kW
The battery can be recharged through AC or DC fast charging depending on the vehicle’s charging architecture.
(Read more: Charging Infrastructure in India (2026)
Written for people who actually need to charge — on weekdays in the city and on highways over the weekend.
As these electrical and electronic systems operate at high voltages and power levels, effective thermal management becomes essential to maintain performance, efficiency, and long-term reliability.
Battery Management System (BMS)
Among all power electronics components, the Battery Management System (BMS) plays the most critical role in ensuring safety and reliability.
The BMS continuously monitors the condition of every battery cell and performs several important tasks:
- monitoring voltage and temperature
- balancing charge between cells
- preventing overcharging or deep discharge
- estimating state of charge (SOC)
- estimating battery health (SOH)
According to research from the China Automotive Technology and Research Center, the BMS is one of the most critical systems governing EV battery safety.
The electric motor receives energy from the battery pack, which is the primary energy storage system in an electric vehicle. Modern EV batteries use advanced lithium-ion chemistry to achieve high energy density and long driving range.
(Read more: Complete Guide to EV Batteries in India)
FAQ: EV power Electronics
Why do EVs still have a 12-volt battery?
Because many automotive electronics are standardized around the 12-volt architecture.
What happens if the battery management system detects a fault?
The system may limit power output or shut down the vehicle to prevent damage.
Thermal Management: Keeping EV Systems Within Safe Limits
As electric vehicles operate at high voltages and power levels, effective temperature management becomes essential for both performance and safety.
Several critical EV subsystems generate heat during operation, including the battery pack, traction motor, and power electronics. If these components overheat, their efficiency decreases and long-term durability can be affected. Therefore, modern EVs employ sophisticated thermal management systems.
Types of EV Cooling Systems
Air Cooling
Early EV designs sometimes relied on passive air cooling. While simple and lightweight, air cooling provides limited thermal control.
Liquid Cooling
Most modern electric vehicles use liquid cooling systems to regulate battery and motor temperatures.
A coolant loop circulates through the battery pack and power electronics, transferring heat to a radiator where it is dissipated.
Refrigerant-Based Cooling
High-performance EVs may also use refrigerant-based thermal systems, integrating the vehicle’s air-conditioning system with battery cooling.
This approach enables precise temperature control during:
- fast charging
- high-power acceleration
- extreme climates
FAQ: Thermal Management
Why is battery temperature control so important?
Excessive heat accelerates battery degradation and reduces lifespan.
Does thermal management affect charging speed?
Yes. Effective cooling allows batteries to accept higher fast-charging power levels safely.
Having explored the key components and supporting systems of an EV powertrain, it becomes easier to understand how this architecture differs fundamentally from traditional internal combustion powertrains.
EV powertrain vs Internal Combustion Powertrain
After examining the individual components of an EV powertrain, it becomes easier to understand why electric vehicles behave so differently from traditional cars.
The fundamental difference lies in how energy is converted and transmitted.
| Feature | Electric Vehicle | Internal Combustion Vehicle |
| Energy Conversion Efficiency | 85–90% | 25–30% |
| Moving Parts | ~10–20 | 200+ |
| Torque Delivery | Instant | Delayed |
| Maintenance | Low | High |
| Noise | Near silent | High |
| Tailpipe Emissions | Zero | CO₂, NOx, PM |
Note: Studies from NITI Aayog highlight that large-scale EV adoption could significantly reduce urban air pollution in Indian cities.
While current EV powertrains already offer substantial efficiency and performance advantages, ongoing technological advancements continue to reshape the design of next-generation electric vehicles.
The Future of EV powertrains
Despite significant progress in recent years, EV powertrain technology continues to evolve rapidly as manufacturers pursue higher efficiency, improved integration, and reduced system cost. Automakers and research institutes are currently exploring several innovations that could dramatically improve efficiency and performance.
One of the most significant trends in modern EV development is the increasing integration of multiple drivetrain components into compact modular systems.
Integrated e-Axles
Many manufacturers are now integrating the motor, inverter, and gearbox into a single compact module known as an e-axle.
This architecture:
- reduces weight
- simplifies vehicle assembly
- improves efficiency
Highly integrated 8-in-1 Powertrain System
A compelling example of this high level of system integration can be seen in the advanced electric powertrain architecture used in the BYD Seal.
BYD 8-in-1 Electric Powertrain System
The BYD Seal features a state-of-the-art 8-in-1 electric powertrain system, which integrates multiple critical components into a single, highly compact package. This advanced level of integration not only reduces the need for separate housing, wiring, and fluid pipelines but also enhances efficiency, reliability, and cost-effectiveness.
The system consolidates the following units:
Image: Exploded view of a BYD integrated 8-in-1 powertrain which combines several power electronic subsystems in a single unit, adapted from, Source Link
- Drive Motor – Provides propulsion with high efficiency and performance.
- Inverter – Converts DC power from the battery into AC power for the motor.
- Transmission – Ensures optimal torque delivery and smooth power transfer.
- On-board Charger (OBC) – Enables convenient charging from external AC sources.
- DC-DC Converter – Steps down high-voltage battery output to low-voltage systems.
- Power Distribution Unit (PDU) – Manages and distributes electrical energy across subsystems.
- Vehicle Control Unit (VCU) – Oversees system coordination and operational logic.
- Battery Management System (BMS) – Monitors and regulates battery performance, safety, and longevity.

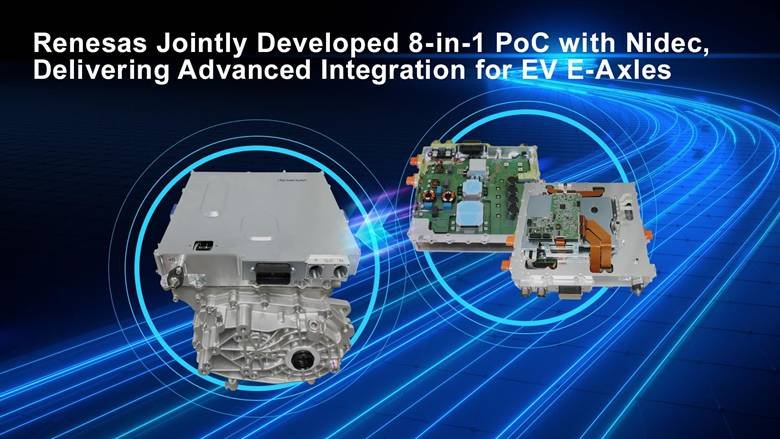

Renesas-Nidec BYD 8-in-1 Electric Powertrain System
In 2024, Renesas Electronics—a global leader in semiconductor solutions—unveiled an 8‑in‑1 electric vehicle e‑Axle proof‑of‑concept. The system was demonstrated live at electronica 2024 in Munich, Germany (November 12–15). Developed in collaboration with Nidec, the Japanese motor manufacturer renowned for producing “everything that spins and moves,” this concept highlights the growing integration of power electronics, motor control, and inverter technologies within next‑generation EV drivetrains.
In addition to system integration, improvements in electrical architecture are also playing a crucial role in advancing EV powertrain performance.
800-Volt Architectures
High-performance EVs are increasingly adopting 800-volt electrical systems, which allow faster charging and lower electrical losses.
Examples include:
- Hyundai Ioniq 5
- Kia EV6
If you’ve been tracking the electric‑vehicle (EV) industry closely, you’ve probably noticed a growing shift—not just toward bigger batteries or more powerful motors, but toward fundamental changes in the underlying electrical architecture.
(Read more: Why Sic + 800V Platforms Matter More Than We Think)
Alongside higher voltage platforms, advances in semiconductor materials are enabling more efficient and compact power electronics systems.
Silicon Carbide Power Electronics
Advanced semiconductor materials such as silicon carbide (SiC) are enabling more efficient inverters and faster switching speeds.
Research from the U.S. Department of Energy indicates that SiC-based power electronics can improve EV efficiency and extend driving range.
Researchers are also exploring alternative motor technologies aimed at reducing dependence on rare-earth materials used in conventional permanent magnet motors.
Magnet-Free Motor Designs
To reduce dependence on rare earth materials, researchers are exploring alternative motor technologies such as:
- switched reluctance motors
- advanced induction motors
- axial flux motors
These designs could reshape EV powertrain architectures in the coming decade.
Taken together, these technologies illustrate how rapidly electric powertrain engineering continues to evolve across the global automotive industry.
Conclusion: Understanding the Engineering Behind Electric Mobility
Although electric vehicles appear mechanically simple on the surface, the technology that powers them is the result of decades of advancements in electrical engineering, materials science, and power electronics.
At the center of this innovation lies the EV powertrain—a tightly integrated system where the motor, inverter, gearbox, and power electronics work together seamlessly.
The motor converts electrical energy into motion, the inverter precisely controls that motion, and the reduction gearbox ensures the resulting torque is delivered efficiently to the wheels. Surrounding these components are sophisticated control systems responsible for energy management, safety, and thermal stability.
Together, these technologies create a vehicle that is not only more efficient than traditional automobiles but also fundamentally different in the way it delivers performance.
As battery technology, semiconductor materials, and vehicle architectures continue to advance, the EV powertrain will become even more efficient, compact, and powerful—cementing electric mobility as the future of transportation.
Discover what truly drives Indian EV buyers in 2026—key insights, trends, and shifting preferences.
Read more: The full analysis to stay ahead in the rapidly evolving EV market!
