EV Inverter Explained: The Powerful Brain Switching 30,000 Times a Second Inside Every EV

Reading Time: 15 minutes

Electric Vehicle Inverter: Your battery speaks DC. Your motor demands AC. The inverter translates between them — with microsecond precision, every single moment you drive.

Ask most people how an electric vehicle works and the answer usually sounds simple enough: a battery powers a motor. That’s true—but it skips over the one component without which an EV is nothing more than a very expensive paperweight.

Hidden between the battery pack and the motor is a device that quietly governs power, performance, efficiency, and even driving feel. It’s called the inverter, and despite its low public profile, it is one of the most critical pieces of hardware in any electric vehicle.

The Value This Article Delivers

This article takes you inside the inverter’s world—starting with why EV batteries produce DC while motors demand AC, and how sophisticated techniques like pulse‑width modulation and field‑oriented control translate raw electricity into smooth, instant torque. We’ll also decode regenerative braking, explain how modern power semiconductors are stretching driving range without bigger batteries, and explore how different manufacturers implement this technology in practice.

From China’s BYD and Xiaomi to India’s Tata and Ather, we examine how inverter design choices shape real‑world efficiency, performance, and long‑term ownership costs—and why understanding this “silent operator” matters far more to EV buyers than they might realize.

EV Inverter Design and Safety: The EV inverter design shall comply with all relevant safety requirements, including functional safety standards in accordance with ISO 26262.

What an EV Inverter Is — and Why Nothing Works Without One

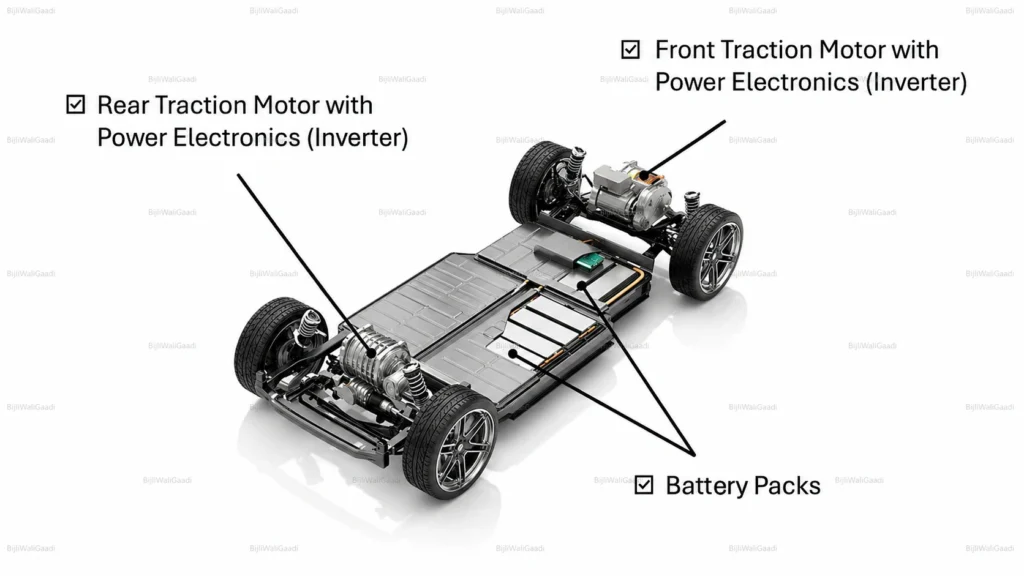

The inverter sits between the high-voltage battery pack and the traction motor. Its primary job: convert the battery’s direct current (DC) into the three-phase alternating current (AC) the motor needs to spin. But that description barely scratches the surface of what it actually does.

Think of the inverter as a conductor of an orchestra. The battery supplies the energy (the musicians), the motor produces the motion (the music). Without the conductor coordinating every note in precise timing, you get noise — not a symphony. The inverter controls motor speed, torque, direction, and smoothness in real time, responding to pedal input within milliseconds. It also manages energy recovery during braking, communicates with the BMS and vehicle control unit, and protects everything from electrical faults.

🚗  Indian EV Context In the Tata Nexon EV, MG ZS EV, Ather 450X and Ola S1, the inverter is typically integrated in the drive unit alongside the motor and gearbox — what engineers call the e-axle. When a spec sheet says ‘3-phase PMSM motor,’ the three-phase AC that motor runs on is precisely what the inverter produces.

EV Inverter — Quick Technical Reference

Parameter	Specification	2026 Industry Context
Input	High-voltage DC from battery pack	350V – 930V (800V+ is now the premium standard).
Output	3-phase Alternating Current (AC)	High-fidelity sine waves to drive the traction motor.
Core Role	DC→AC Conversion + Control	Uses AI-driven algorithms for real-time speed and torque.
Secondary Role	AC→DC Rectification	Recovers kinetic energy during Regenerative Braking.
Switching Device	SiC MOSFET or Si/SiC Fusion	Silicon Carbide is now mainstream; “Fusion” tech targets budget EVs.
Control Method	SVPWM + AI-FOC	Space Vector PWM combined with Adaptive Field Oriented Control.
Switching Speed	10,000 – 30,000 Hz (10–30 kHz)	Optimized for SiC to balance heat and noise.
Peak Efficiency	98.5% – 99.6%	Achieved in flagship models like the Xiaomi SU7 Ultra.
Thermal Limit	Up to 200°C	Modern SiC modules handle higher heat than older 150°C IGBTs.

The DC vs AC Problem: Why an Inverter Must Exist

Batteries produce direct current — electrons flow in one direction only, always from negative to positive terminal. That is the nature of electrochemistry. Meanwhile, almost every modern EV motor (Permanent Magnet Synchronous Motor or AC Induction Motor) fundamentally requires three-phase alternating current — three separate AC waves, each shifted 120° from the others — to create the rotating magnetic field that spins the rotor.

DC motors with physical brush commutators do exist, but they wear out, spark at high currents and cannot sustain the power levels modern EVs demand. AC motors have none of these problems. The inverter exists precisely to bridge this incompatibility — and it does so not with mechanical parts, but with electronic switches firing at inhuman speeds.

💡  Why It Is Called an ‘Inverter’ The name is literal: it inverts the polarity of the DC supply, rapidly and repeatedly, to synthesise an alternating output. The word predates EVs — power electronics engineers have used it since the 1960s to describe any device that converts DC to AC.

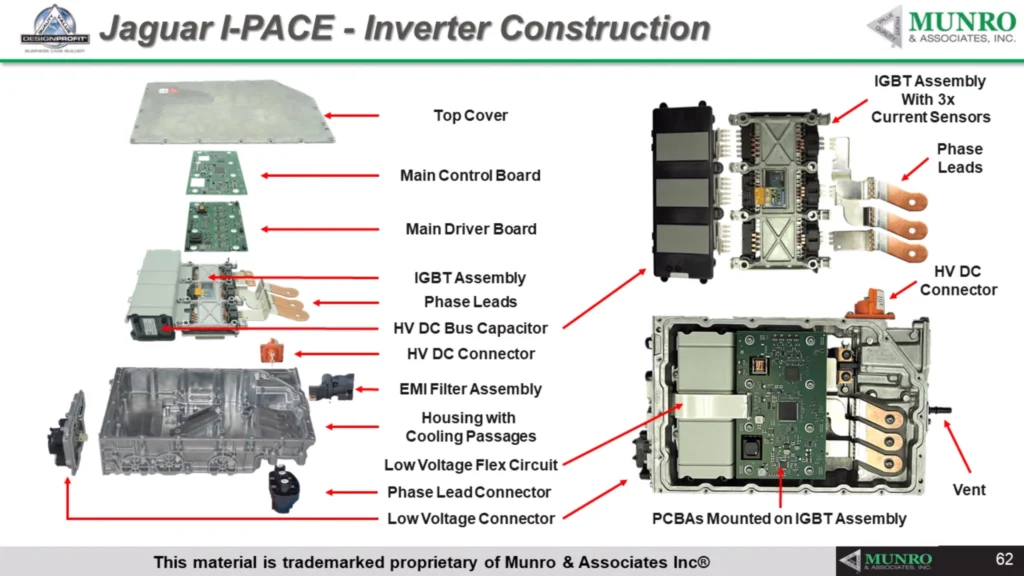

Inside the Inverter: Key Components Explained

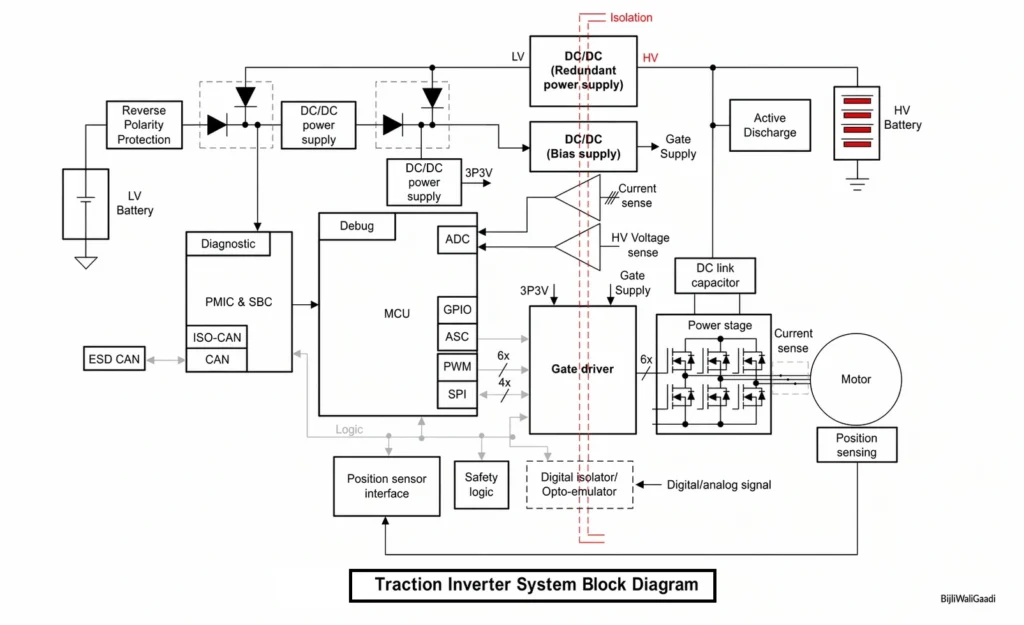

A modern EV inverter is a compact assembly of power electronics, sensing, cooling and control. Six power transistors are the heart — they switch the DC bus on and off at high frequency to synthesise AC. A DC bus capacitor smooths voltage ripple and absorbs transient spikes. Gate driver circuits amplify low-power control signals to the voltages needed to switch the transistors cleanly and safely. Hall-effect current sensors measure phase currents in real time, feeding a closed-loop control system. A microcontroller or DSP runs the PWM and FOC algorithms. NTC thermistors monitor junction temperatures and trigger power de-rating before damage occurs. A liquid-cooled baseplate removes heat from the transistors continuously, and a discharge resistor safely drains the capacitor when the inverter powers down — a safety requirement, since that capacitor stores enough energy to cause a serious electric shock.

How It Works: The Complete Power Conversion Process

Every time you touch the accelerator, this sequence runs inside your EV’s inverter—completing in under a millisecond:

Step	Action	2026 Technical Context
1	Pedal → Torque Demand	The pedal sensor sends the position to the VCU, which calculates torque demand and forwards it to the inverter.
2	AI-Enhanced FOC	Modern FOC now uses Machine Learning to adjust for motor age and temperature, calculating the perfect current phase.
3	SVPWM Signal Generation	Space Vector PWM generates six switching signals with duty cycles that vary to “draw” the AC voltage waveform.
4	Transistors Switch	Update: Modern SiC transistors now switch up to 30,000 times/sec ($30\text{ kHz}$) in traction applications to maximize efficiency.
5	3-Phase AC → Motion	Output phases carry AC shifted 120° apart, creating a rotating magnetic field that physically drags the rotor.
6	High-Speed Feedback	Sensors measure phase currents up to 50,000 times/sec, allowing the controller to correct any deviation instantly.

---

Pulse Width Modulation inside EV Inverter — The Clever Core

An EV inverter’s transistors have only two states: fully on, or fully off. PWM synthesizes a smooth AC sine wave by varying how long the switch stays on versus off in each tiny time slice.

• The Logic: Switch on 90% of the time → average output is 90% voltage. Vary this duty cycle sinusoidally, and the output traces a perfect sine wave.

• The 2026 Upgrade: While high-end chargers hit MHz speeds, 2026 traction inverters have standardized around 20 – 30 kHz. This “sweet spot” provides a near-silent drive and massive heat reduction without overstressing the motor’s insulation.

Field Oriented Control — AI Joins the Loop

FOC (Vector Control) is the math that translates “the driver wants 80 Nm” into specific current values. It uses complex transforms to treat rotating AC quantities as simple DC values ( i_d and i_q ), making torque management instantaneous.

What’s New in 2026?

Traditional FOC used “Fixed Maps”—pre-set rules that never changed. 2026 inverters (like those in the Mahindra BE 6 or Xiaomi SU7) use Adaptive AI FOC. (While both use Field-Oriented Control (FOC), the Xiaomi SU7 uses AI to actively optimize torque for road conditions, whereas the Mahindra BE 6 focuses AI adaptation on cabin experience and chassis dynamics via its MAIA architecture.)

• Real-Time Tuning: If the motor is running hot in an Indian summer or the magnets are aging, the AI re-tunes the control parameters on the fly.

• The Result: You get the same linear, punchy torque response whether the car is brand new or 10 years old. This is why 2026 EVs feel consistently “sharp” throughout their entire lifespan.

Quick Note on Frequency:

The switching frequency 30kHz limit is as per the inverter used into production vehicles in this year. While laboratory SiC can switch much faster, automotive engineers cap traction inverters at this level to balance switching losses with electromagnetic interference (EMI), ensuring your car’s radio and sensors don’t get “noisy” while you drive.

Regenerative Braking: When the Inverter Runs Backwards

An electric motor and an electric generator are physically identical. When you lift off the accelerator, the vehicle’s momentum spins the motor shaft, inducing AC power in the stator. The inverter’s job is to instantly rectify that AC back to DC and push it into the battery.

In 2026, this process is no longer just “on or off.” Modern inverters use Adaptive Blending, where the FOC algorithm uses radar and navigation data to decide exactly how much “electronic braking” to apply versus mechanical friction brakes. Some premium EVs like the Nio ET7 and Hyundai IONIQ 6 have pushed city recovery rates to as high as 40%, thanks to more efficient Silicon Carbide (SiC) inverters that lose less power during the AC-to-DC conversion.

Feature	Motor Mode (Driving)	Generator Mode (Regen)
Direction	Battery → Inverter → Motor → Wheels	Wheels → Motor → Inverter → Battery
Current Type	Inverter produces 3-phase AC	Motor generates 3-phase AC
Inverter Role	Synthesizes AC waveform	Rectifies AC back to DC
Torque	Forward Torque (Acceleration)	Negative Torque (Deceleration)

The 2026 Indian Context: “Free” Range in the City

In Indian city driving—with its constant speed breakers, traffic signals, and stop-and-go congestion—regenerative braking has become the ultimate range extender.

• City Efficiency: While older systems recovered ~20%, 2026 SiC-based inverters (like those in the Mahindra BE 6 and Tata Harrier EV) can recover 30–40% of total energy consumed in dense traffic.

• Highway Efficiency: At a steady 100 km/h, the gain remains lower (5–10%) because there is less deceleration to “harvest.”

• The “One-Pedal” Standard: By 2026, most Indian EVs have adopted One-Pedal Driving as a default. This allows the inverter to bring the car to a complete standstill without ever touching the brake pedal, significantly reducing brake pad wear.

Quick Note: Tata Nexon EV and Harrier EV owners in hilly cities like Pune or Bengaluru routinely find that their “Efficiency Score” improves on the way home. This is the inverter at work, turning a downhill descent into a partial battery recharge.

Real EVs, Real Inverter Technology: Who Uses What

Inverter technology is a meaningful performance differentiator between EVs. Here is what leading models actually use in 2026—and why it matters to buyers.

Chinese EVs: Setting the 800V Pace

Chinese manufacturers have scaled Silicon Carbide (SiC) faster than anyone. BYD’s e-Platform 3.0 Evo (Seal, Atto 3 Evo) uses a world-first 12-in-1 integrated drive unit, reducing wiring losses and weight while pushing system efficiency to 92%. The Xiaomi SU7 Ultra has reset the benchmark with a 925V SiC architecture and a massive 1,138 kW (1,548 PS) output. Meanwhile, Xpeng and NIO (ET9) have made 800V-900V SiC standard, enabling “5-minute charging” for the mass market.

Model	Manufacturer	Inverter Tech	Architecture	Peak Power
Xiaomi SU7 Ultra	Xiaomi	SiC MOSFET	897V	1,138 kW
BYD Seal 08	BYD	SiC MOSFET	800V	390 kW
Zeekr 001 FR	Zeekr	Quad-SiC	800V	1,265 kW
AITO M9	Huawei	SiC MOSFET	800V	390 kW

Global EVs: The SiC Standard

Global giants have largely abandoned Silicon IGBTs for their 2026 flagships. Volkswagen finally moved the ID.4 and ID.7 to SiC with the APP550 drive unit, boosting range without increasing battery size. Tesla continues to lead in volume-efficiency with its proprietary SiC modules, while Lucid holds the voltage crown with its 924V Sapphire inverter.

Model	Inverter Tech	Bus Voltage	Peak Power	Note
Tesla Model 3	SiC MOSFET	350V	393 kW	The benchmark for SiC efficiency
Porsche Taycan	SiC MOSFET	800V	700 kW	Dual-SiC for sustained track use
Hyundai IONIQ 6	SiC MOSFET	800V	239 kW	E-GMP platform; 800V booster tech
VW ID.4 (2026)	SiC MOSFET	400V	250 kW	New APP550 unit replaces older IGBT

Indian EVs: The High-Performance Shift

India’s EV market has split: entry-level models stick to reliable IGBTs, but the new performance leaders have moved to SiC to handle Indian summers. The Mahindra BE 6 uses a Valeo SiC inverter for massive efficiency gains, while the Harrier EV has introduced a dual-motor QWD setup with an “acti.ev” pulse inverter capable of 291 kW (390 bhp).

Model	Inverter Tech	Architecture	Peak Power	Status
Mahindra BE 6	SiC MOSFET	400V	231 kW	97% efficiency; SiC by Valeo
Tata Harrier EV	SiC-Ready	400V	291 kW	QWD Dual-motor; 504 Nm torque
Tata Nexon EV 45	Si IGBT	350V	110 kW	Updated 2026 thermal logic
Ola S1 Pro	Custom MOSFET	72V	11 kW	Most powerful 2W inverter in India

Silicon vs Silicon Carbide: The Technology Gap That Changes Everything

The Efficiency Leap: Why SiC is Winning

The move from Silicon IGBTs to Silicon Carbide (SiC) MOSFETs is the biggest jump in EV tech since we ditched brushed motors. SiC isn’t just a minor tweak; it switches significantly faster and loses nearly 70% less energy every time it clicks on or off.

While Tesla’s 2018 move to SiC in the Model 3 was the “shot heard ’round the world,” by 2026, the technology has matured into its 4th generation. We’ve even seen the rise of “Fusion” switches that combine low-cost Silicon with high-efficiency SiC to give budget EVs a performance boost without the premium price tag.

Peak Inverter Efficiency by Generation

Technology Generation	Peak Efficiency	Typical Era
Early IGBT (Silicon)	91%	Pre-2015
Modern IGBT (Refined Si)	94%	2016–2023
1st-Gen SiC	96%	2018–2021
Current Gen-4 SiC	98.5%	2024–2026
Next-Gen GaN	~99.6%	2027+ (In Testing)

IGBT vs. SiC MOSFET: The 2026 Comparison

Parameter	Silicon IGBT	SiC MOSFET	The Winner
Switching Frequency	5–10 kHz	10–50 kHz	SiC — Smoother, quieter motor control
Energy Loss	High	70% Lower	SiC — Stays cool, wastes less
Max Temp (Junction)	~150°C	~200°C	SiC — Massive for Indian summers
Reverse Recovery	Significant	Near Zero	SiC — Crucial for highway efficiency
800V Support	Limited/Inefficient	Native	SiC — Enables ultra-fast charging
Cost	Baseline	Narrowing Gap	IGBT — Still the “Value” king

Why 4% Matters: The “Free” Range Math

A 4.5% jump in efficiency (94% to 98.5%) might sound small on paper, but in the real world, it’s a game-changer. On a standard 50 kWh battery, you’re saving roughly 2.25 kWh per charge that would have otherwise just turned into useless heat.

In Indian driving conditions, that is an extra 18–22 km of range for absolutely “free”—no bigger battery, no extra weight, just smarter silicon. Over the 150,000 km life of a car, you’re looking at over 20,000 km of extra distance just by choosing a better inverter.

SiC Adoption Across the EV Industry: Where the Market Stands

SiC inverters have gone from a Tesla exclusive in 2018 to a mainstream choice for premium and performance EVs globally. The Chinese market — driven by BYD, Xpeng, NIO and new entrants like Xiaomi — has been the fastest adopter by volume. Here is the current adoption picture across major EV segments:

EV Inverter Technology Market Share by New Production Vehicle

Technology Type	Market Share Data	Trend / Status
SiC MOSFET (Premium/Perf)	42.1%	Increasing: Accelerated by 800V architectures in China and Europe.
IGBT Silicon (Mainstream)	46.8%	Decreasing: Still dominant in sub-400V and budget EVs, but losing share.
SiC MOSFET (Budget/Emerging)	8.5%	Steady: Slow adoption in budget tiers due to cost vs. IGBT.
GaN / Other	2.6%	Stable/Pivoting: Expanding into traction inverters (previously limited to OBC).

Efficiency at Real-World Operating Conditions

Peak efficiency only occurs at the ideal combination of power, speed and temperature. Real driving cycles cover a wide range of conditions — and Indian driving is particularly demanding given the thermal environment. This comparison table reflects typical measured values across published automotive engineering data:

EV Inverter Technology Performance Across Real-World Conditions

EV Model	Inverter Tech	Peak Eff.	Bus Voltage	Power Output
Xiaomi SU7 Ultra	SiC MOSFET	~99.6%	897V (High 800V)	1,138 kW
BYD Seal AWD	SiC MOSFET	~97%	569V (Nominal)	390 kW
Hyundai IONIQ 6	SiC MOSFET	~97%	800V	239 kW
Tesla Model 3 LR	SiC MOSFET	~96%	350V	393 kW
Mahindra BE 6	SiC (Valeo)	~97%	400V	210-231 kW
VW ID.4 AWD	SiC MOSFET	~96%	800V	250 kW
Tata Nexon EV 45	Si IGBT	~94%	350V	110 kW
MG ZS EV	Si IGBT	~92%	350V	115 kW

Thermal Management and the Indian Climate Challenge

Even at 98% efficiency, an inverter delivering 150 kW loses 3,000 watts as heat — concentrated into a package the size of a thick hardback book. Every production EV inverter uses liquid cooling: coolant channels machined into the aluminium baseplate carry the same coolant loop that cools the battery pack and motor, maintained at 60–70°C by a pump and radiator. Power transistors are mounted directly on this cold plate with thermally conductive paste.

When temperatures approach limits despite cooling, the controller triggers thermal de-rating — deliberately reducing peak output to reduce heat generation. This is why you might notice slightly softer acceleration after a long hard drive or back-to-back fast-charging sessions. It is not a fault. It is the system protecting your most expensive components, and full performance returns within minutes.

🌡  India-Specific Design Requirement Well-engineered EV inverters for Indian conditions are rated for continuous operation at 55°C ambient or higher — not just the 25°C test conditions used in European certification. When shopping for an EV in Rajasthan, Telangana or Maharashtra, inverter thermal design quality is a real differentiator. A vehicle that de-rates heavily in peak summer reflects insufficient thermal headroom, not a software setting.

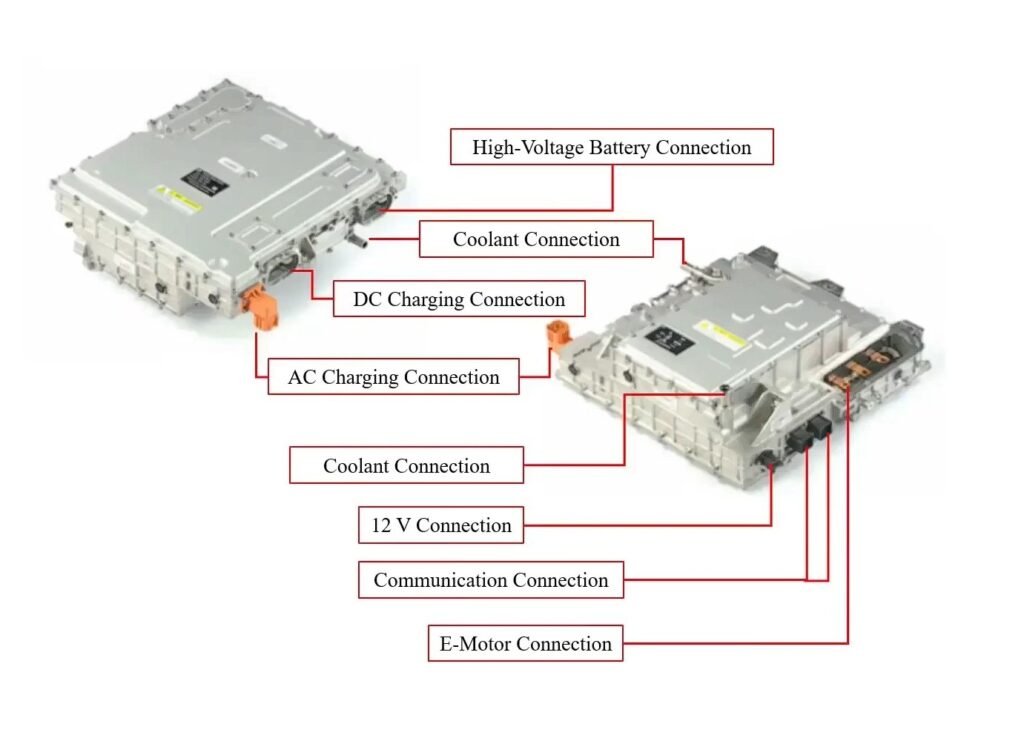

Inverter vs On-Board Charger: The Confusion Cleared Up

One of the most common things people get wrong about EVs is thinking the inverter is what controls how fast your car charges at home or at a station. It actually doesn’t.

Think of the Traction Inverter as the “Engine Manager”—it’s only interested in energy when the car is moving or slowing down (regen). Meanwhile, the On-Board Charger (OBC) is the “Gatekeeper” for your home AC socket, converting that power into a form the battery can swallow.

However, there is one modern “twist” to this rule. For new 800V cars (like the BYD Seal or Hyundai IONIQ 6 and other), if you plug into an older, slower 400V DC charger, the battery can’t “see” the energy because the voltage is too low. In this specific case, the car actually wakes up the Traction Inverter to act as a “Voltage Booster,” stepping that power up so the battery can accept it.

Quick Look: Inverter vs. OBC

Feature	Traction Inverter	On-Board Charger (OBC)
Main Job	DC (Battery) → AC (Motor) while driving	AC (Wall) → DC (Battery) while charging
Power Level	Huge (150–1,000+ kW)	Small (3.3–22 kW typical)
Active When	Driving OR DC Charging (on 800V cars)	Plugged into AC charger only
DC Fast Charge	Acts as a Voltage Booster for 800V cars	Bypassed entirely

Efficiency at Real-World Operating Conditions

Peak efficiency numbers from a brochure are like EPA range—they only happen in a perfect lab. In the real world, especially in the heat of an Indian summer or during heavy stop-and-go traffic, the hardware is pushed to its limit.

Silicon Carbide (SiC) is the new gold standard because it handles heat better and loses less energy during the “switching” process. While a Silicon IGBT (like in the Nexon) is reliable and cheaper, it generates more waste heat, which is why you see the efficiency gap in the table below.

EV Inverter Performance: 2026 Comparison Table

EV Model	Inverter Tech	Peak Eff.	Bus Voltage	Power Output
Xiaomi SU7 Ultra	SiC MOSFET	~99.6%	897V	1,138 kW
BYD Seal AWD	SiC MOSFET	~97%	569V	390 kW
Mahindra BE 6	SiC (Valeo)	~97%	400V	231 kW
Hyundai IONIQ 6	SiC MOSFET	~97%	800V	239 kW
VW ID.4 (2026)	SiC MOSFET	~96%	800V	250 kW
Tesla Model 3 LR	SiC MOSFET	~96%	350V	393 kW
Tata Nexon EV 45	Si IGBT	~94%	350V	110 kW
MG ZS EV	Si IGBT	~92%	350V	115 kW

Note: Models highlighted as SiC MOSFET generally offer better range in city traffic because they are significantly more efficient at “partial loads” (low speeds) compared to older IGBT tech.

The Future of EV Inverters: What Comes After SiC

While Silicon Carbide (SiC) is currently the gold standard for efficiency, the next leap is already unfolding. Gallium Nitride (GaN), the tech behind ultra-fast phone chargers, is finally moving into the “big leagues.”

As of early 2026, we’ve seen the first successful pilot production of high-current GaN traction inverters. Because GaN switches even faster than SiC with nearly zero energy loss, we are looking at another 2–3% jump in total vehicle range and significantly smaller, lighter drive units. We expect the first luxury EVs with GaN-powered motors to hit the road by 2027-28.

From 8-in-1 to Total Integration

The trend of “clumping” components together is also accelerating. While BYD’s 8-in-1 unit set the benchmark, 2026 is the year of the “12-in-1” e-Axle. Manufacturers are now integrating the inverter, motor, gearbox, OBC, DC-DC converter, and even the battery management and thermal control systems into a single, compact housing. This doesn’t just save weight; it eliminates meters of heavy high-voltage wiring, which directly reduces “resistive losses” (energy wasted as heat).

The AI Inverter: Self-Healing Performance

Perhaps the most “sci-fi” update is the arrival of AI-driven adaptive control. Companies like Huawei Digital Power, Bosch, and BYD have begun deploying inverters that don’t just follow a fixed program. Instead, they use AI to:

• Predict Wear: Adjust switching frequencies to compensate for motor aging.

• Thermal Intelligence: Re-optimize “Field Oriented Control” (FOC) in real-time based on the weather and your driving style.

• Live Tuning: Essentially “tuning” the car’s efficiency on the fly to squeeze out every possible kilometer from the battery.

What’s Different? (Quick Reference for 2026)

Technology	Status in 2024	Status in 2026
GaN Tech	Limited to small chargers	Pilot production for traction motors started
Integration	8-in-1 systems (BYD)	12-in-1 “Mega-Power” units emerging
Inverter Logic	Static software	AI-driven “Self-Optimizing” control
800V Reach	Premium only	Moving into mass-market ($25k–$30k) EVs

The Bottom Line: We are moving away from “dumb” hardware. The inverter is evolving from a simple power switch into a smart, integrated brain that learns how you drive and adjusts itself to make sure you aren’t wasting a single watt of power.

Conclusion: The Inverter Is Not a Feature — It Is the Foundation

Every time you feel that instant surge of EV torque, you’re feeling the inverter at work—switching twenty thousand times a second with microsecond precision. It rarely gets a shout-out in brochures, but it’s the invisible brain behind every kilometer.

The shift from Silicon IGBTs to SiC MOSFETs—seen in the jump from the early Nexon EV to the BYD Seal and the 1,138 kW Xiaomi SU7 Ultra—is a game changer. This tech is the reason range is growing without adding battery weight, and why 800V ultra-fast charging is finally hitting the mass market in cars like the Mahindra BE 6.

In 2026, we’ve moved past the “early adopter” phase. With AI now optimizing motor efficiency in real-time, the inverter has evolved from a simple power switch into a self-learning brain. To understand the inverter is to understand why EVs are finally winning the race.

FAQs : EV Inverter Technology
