BMW iX5 Hydrogen: Inside BMW’s Gen3 Hydrogen SUV Engineered for 2028
As the 2028 launch window approaches, BMW is rewriting the rules of zero-emission mobility by betting on two technologies simultaneously — battery electric and hydrogen fuel cell — proving that a truly technology-open strategy can redefine what an SUV is capable of delivering.
Table of Contents
What Is the BMW iX5 Hydrogen?
The BMW iX5 Hydrogen is BMW’s hydrogen fuel cell SUV, built on the current X5 platform and engineered toward production-ready status for 2028. It pairs a fuel cell stack, high-voltage battery, and electric motors, giving BMW a second zero-emission powertrain alongside battery electric vehicles within its technology-open lineup.
Why BMW Calls This a Hydrogen Fuel Cell SUV
A hydrogen fuel cell SUV generates its own electricity on board rather than storing it in a battery pack. Inside the BMW iX5 Hydrogen, hydrogen from the tanks combines with oxygen drawn from the air, producing electricity and water vapor as the only emission, while still delivering genuine BMW driving pleasure.
BMW iX5 Specs at a Glance
| Specification | Detail |
| Power Output (Gen2 Pilot Fleet) | 401 horsepower |
| Range (Gen2 WLTP) | 502 km |
| Projected Range (Gen3 Flat Tank) | Up to 750 km |
| Tank Pressure | 700 bar |
| Hydrogen Capacity | ~7 kg |
| Refueling Time | Under 5 minutes |
| Fuel Cell System Size Reduction (Gen3) | 25% smaller than Gen2 |
| Target Production Year | 2028 |
| Gen3 Performance Trajectory | Significant leap in efficiency and power (figures TBC) |
Is the BMW iX5 Hydrogen Pure Electric?
Yes. Despite the misconception, fuel cell vehicles are electric vehicles. The BMW iX5 Hydrogen drives on electric motors at all times, just like a battery electric car. The only difference is how that electricity reaches the motors: generated continuously from hydrogen and oxygen instead of drawn from a charged battery.
How the BMW Hydrogen Flat Storage System Saves Space

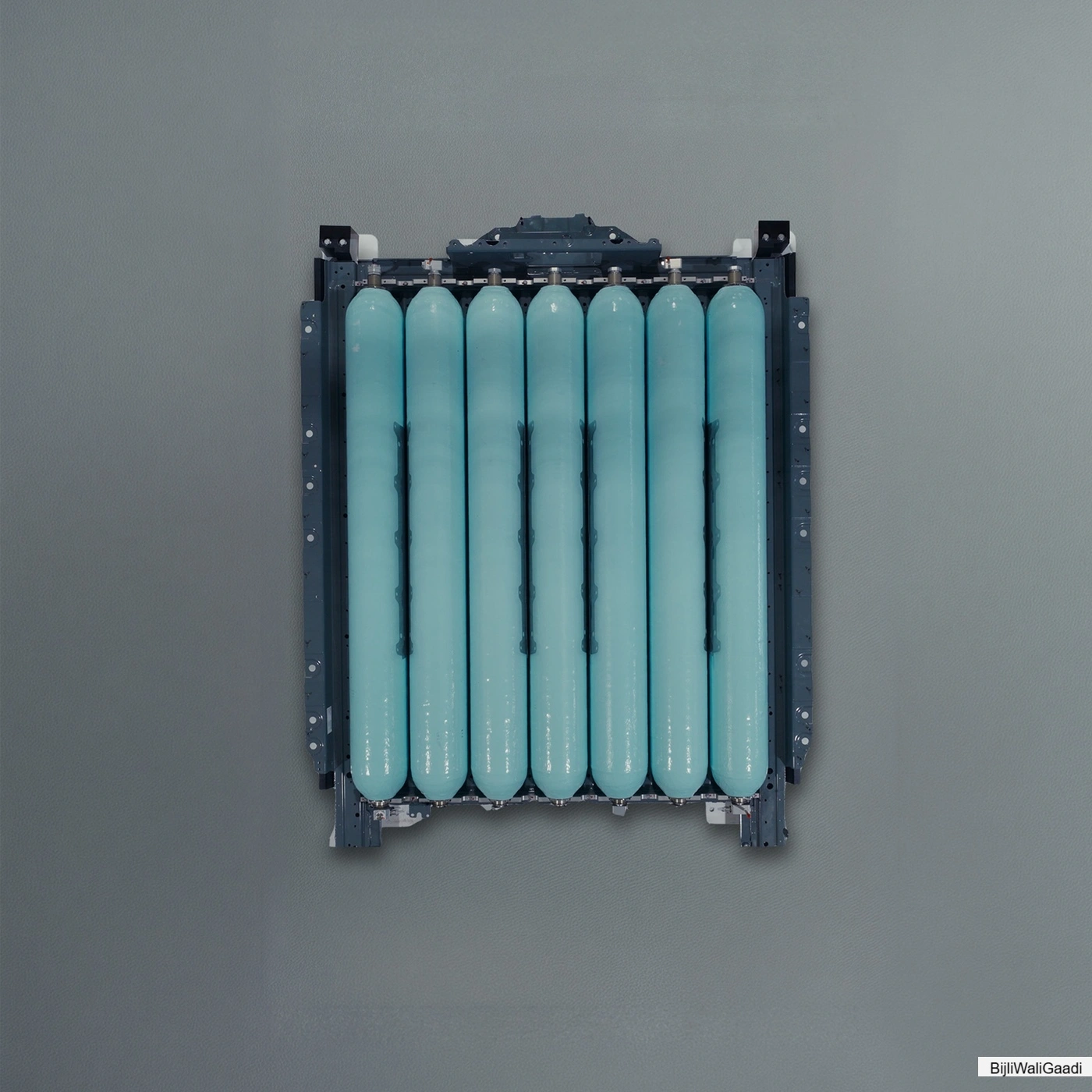

The BMW Hydrogen Flat Storage system is engineered to occupy the same design space as the Gen6 battery pack used in BMW’s electric models. By reshaping and reorienting the pressure vessels, engineers fit a complete hydrogen tank package into the underfloor area without compromising cabin or cargo room.

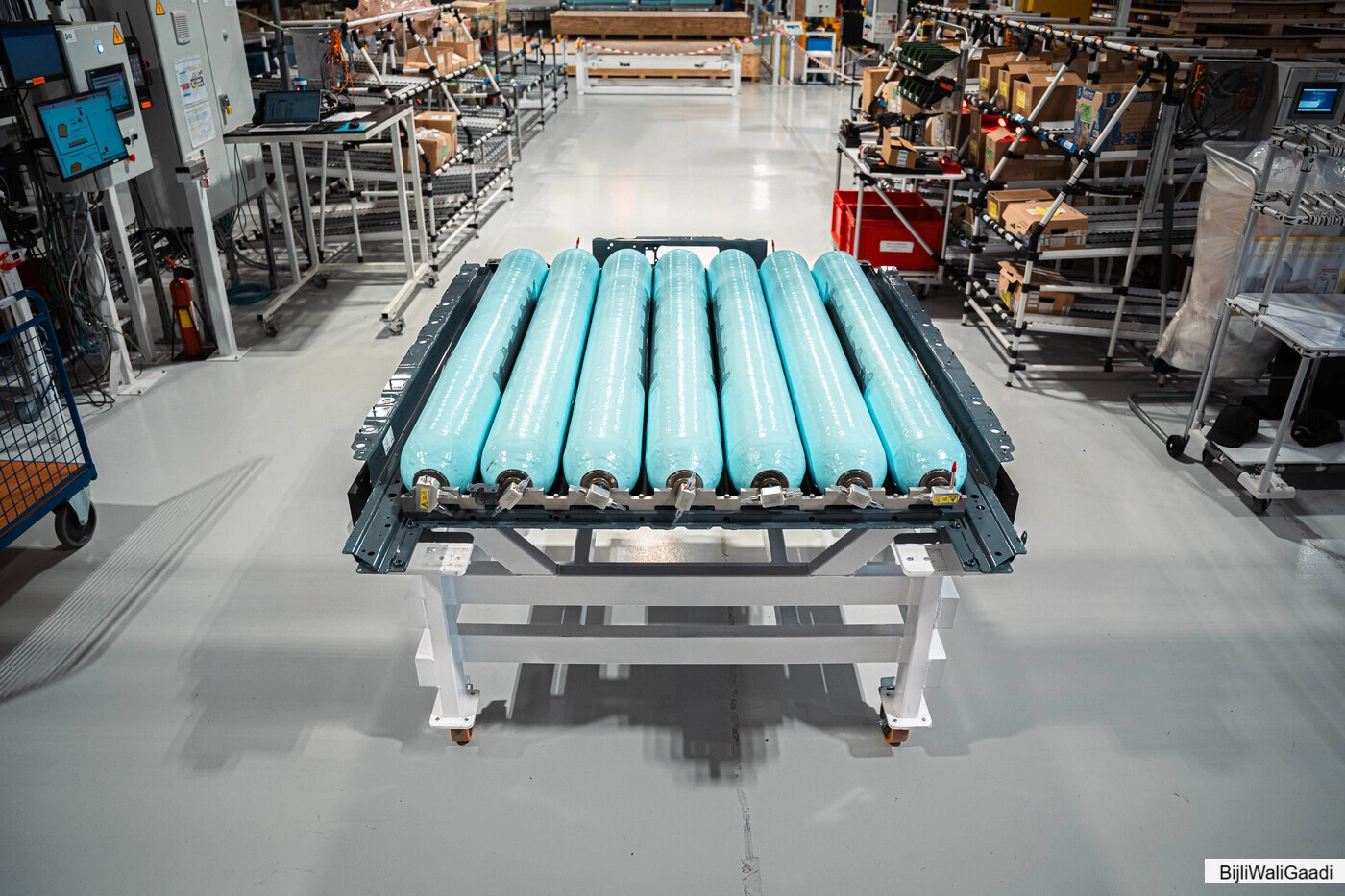

Seven Pressure Vessels, One Central Main Valve

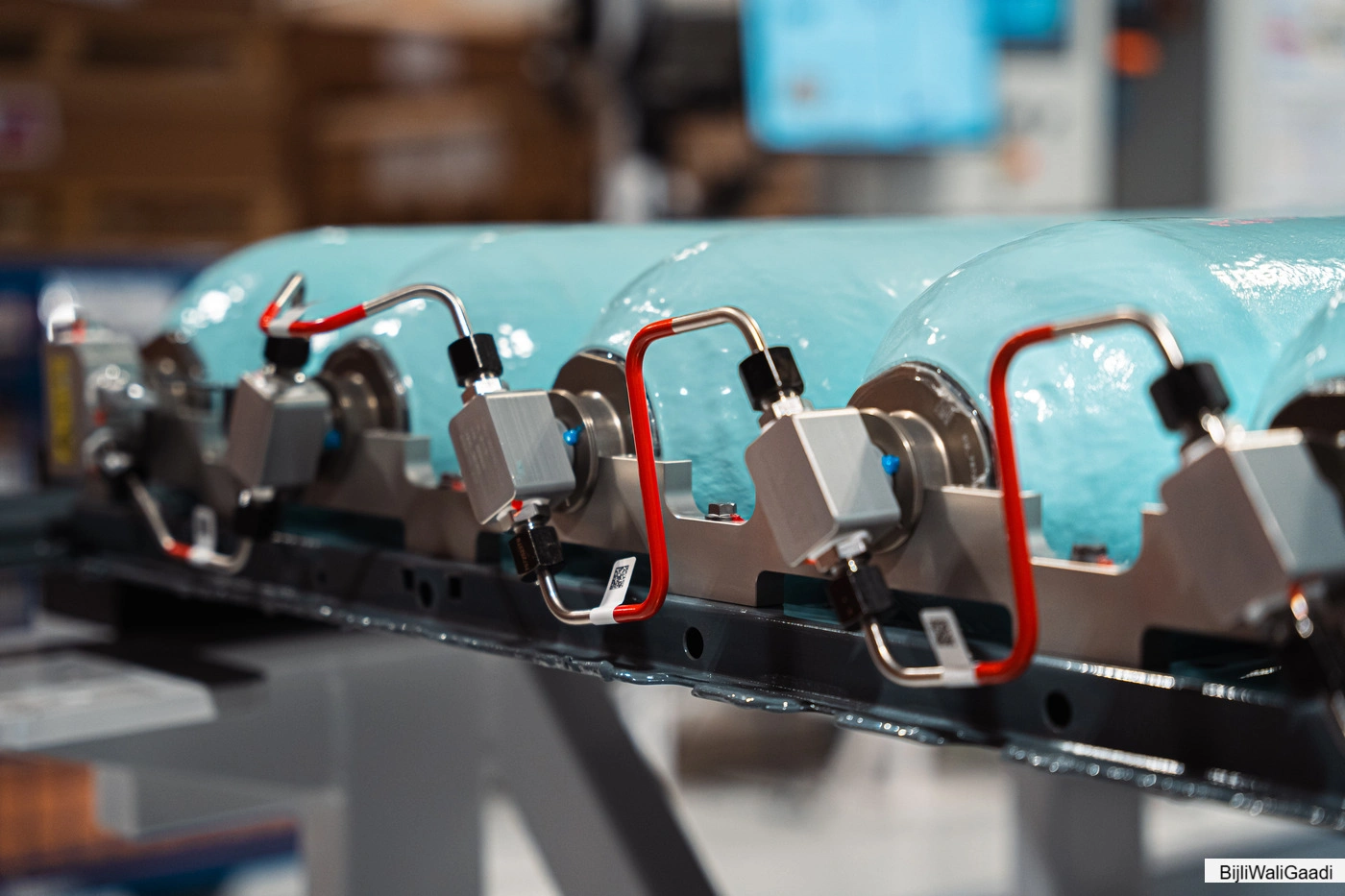

Rather than fitting several independent tanks, BMW connects seven carbon fiber composite pressure vessels into a single chamber design. This arrangement allows one central main valve to serve the entire system, reducing complexity, increasing the hydrogen volume stored, and allowing the overall tank length to grow within the same footprint.
BMW iX5 Tank Pressure 700 Bar Explained
Hydrogen is stored as a compressed gas, and the BMW iX5 tank pressure 700 bar standard is what allows roughly seven kilograms of hydrogen to fit within the seven carbon fiber vessels. This pressure level is common across hydrogen passenger vehicles and is engineered to meet the highest documented safety requirements.
BMW iX5 Hydrogen Range: How Far Can It Go
The new flat storage tank design enables a BMW iX5 Hydrogen range of up to 750 km, a clear step beyond the 502 km WLTP figure recorded by the current Gen2 pilot fleet. That improvement comes from the larger hydrogen capacity made possible by the seven connected pressure vessels.

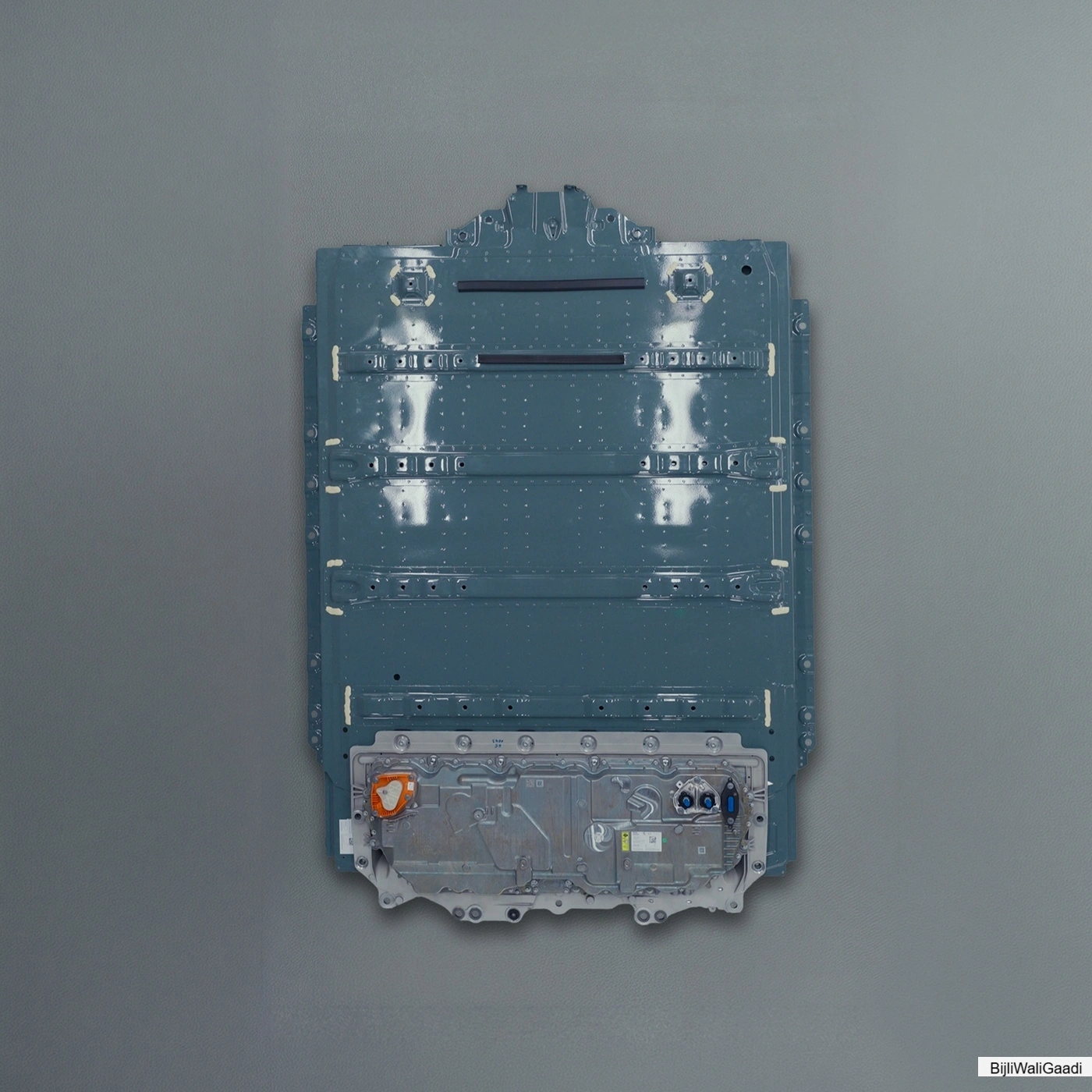

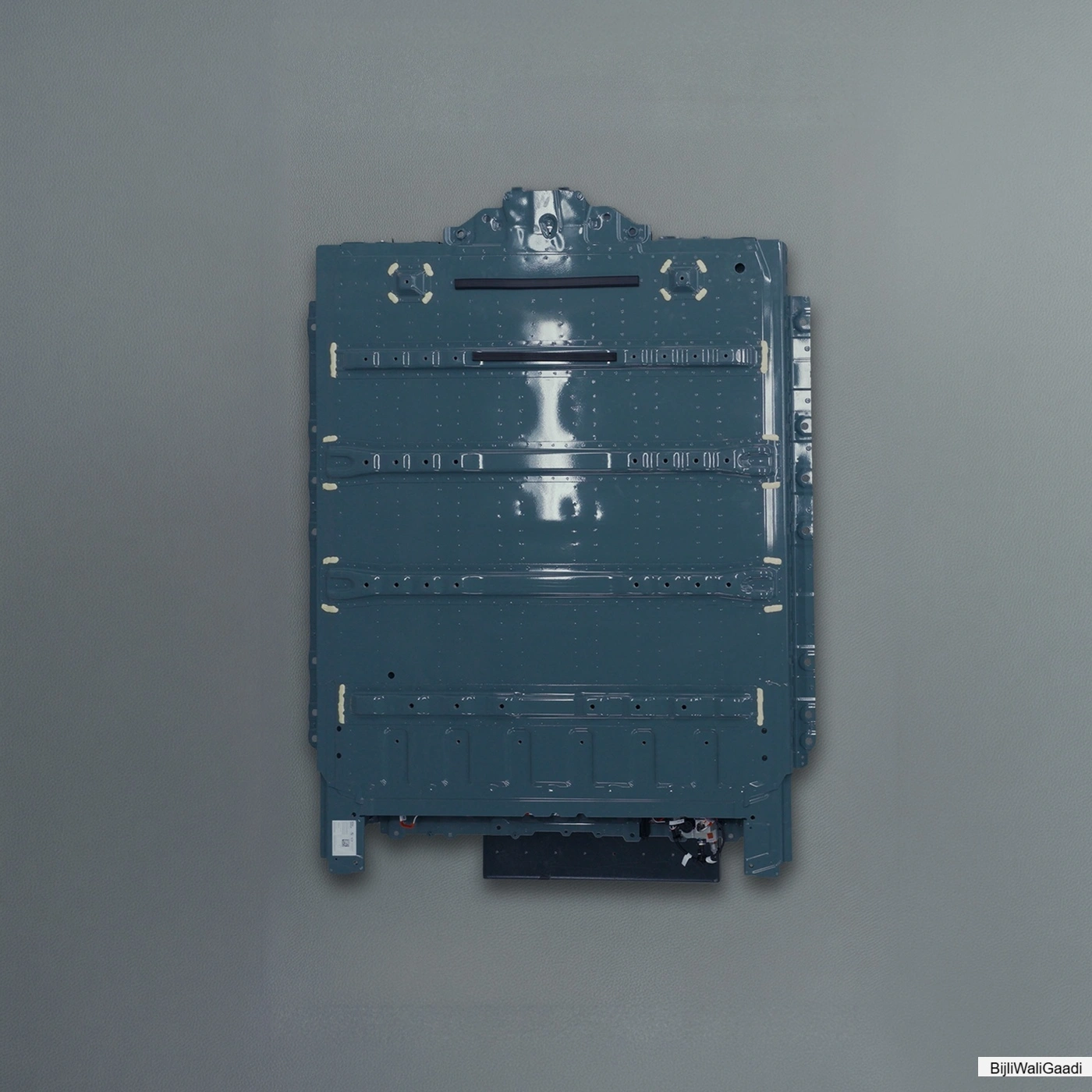

The Metallic Frame: Safety Built Around the Tanks
The flat storage tanks sit inside a metallic frame that serves two roles at once. It contributes to overall body stiffness, helping protect the pressure vessels in a crash, while also shielding the tanks from fire and environmental loads. BMW says the vessels meet the highest documented safety standards.
Inside BMW’s Gen3 Fuel Cell Technology
BMW Gen3 fuel cell technology represents a major redesign over the Gen2 system used in the current iX5 Hydrogen pilot fleet. Engineers reduced the overall footprint by 25 percent while increasing power and efficiency. The result is a more compact unit aimed at fitting flexibly into standard production vehicles from 2028.

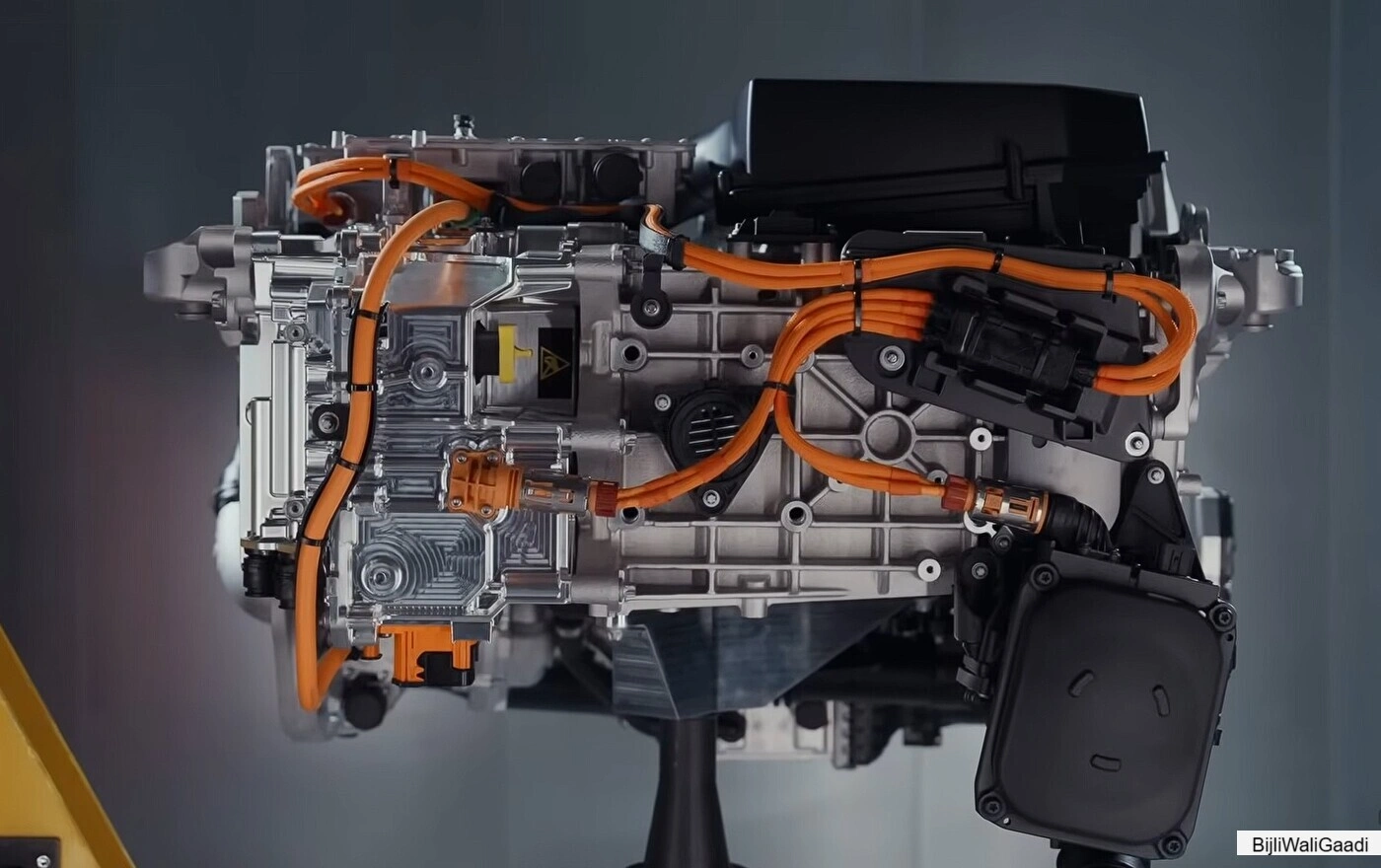

Fuel Cell Stack, DC/DC Converter, and Air Compressor Explained
At the heart of the system sits the fuel cell stack, where hydrogen and oxygen combine to generate electricity while driving. A DC/DC converter then steps that current up to the vehicle’s operating voltage, while an air compressor draws outside air through a filter and presses it into the stack.
Intercooler and Humidifier: Conditioning the Air Supply
Before reaching the fuel cell stack, compressed air passes through an intercooler and a humidifier. The intercooler lowers the air’s temperature after compression, while the humidifier adjusts moisture levels to the precise humidity the fuel cell membranes need, protecting performance and durability inside BMW’s Gen3 fuel cell technology.
The BMW Energy Master Drivetrain Explained

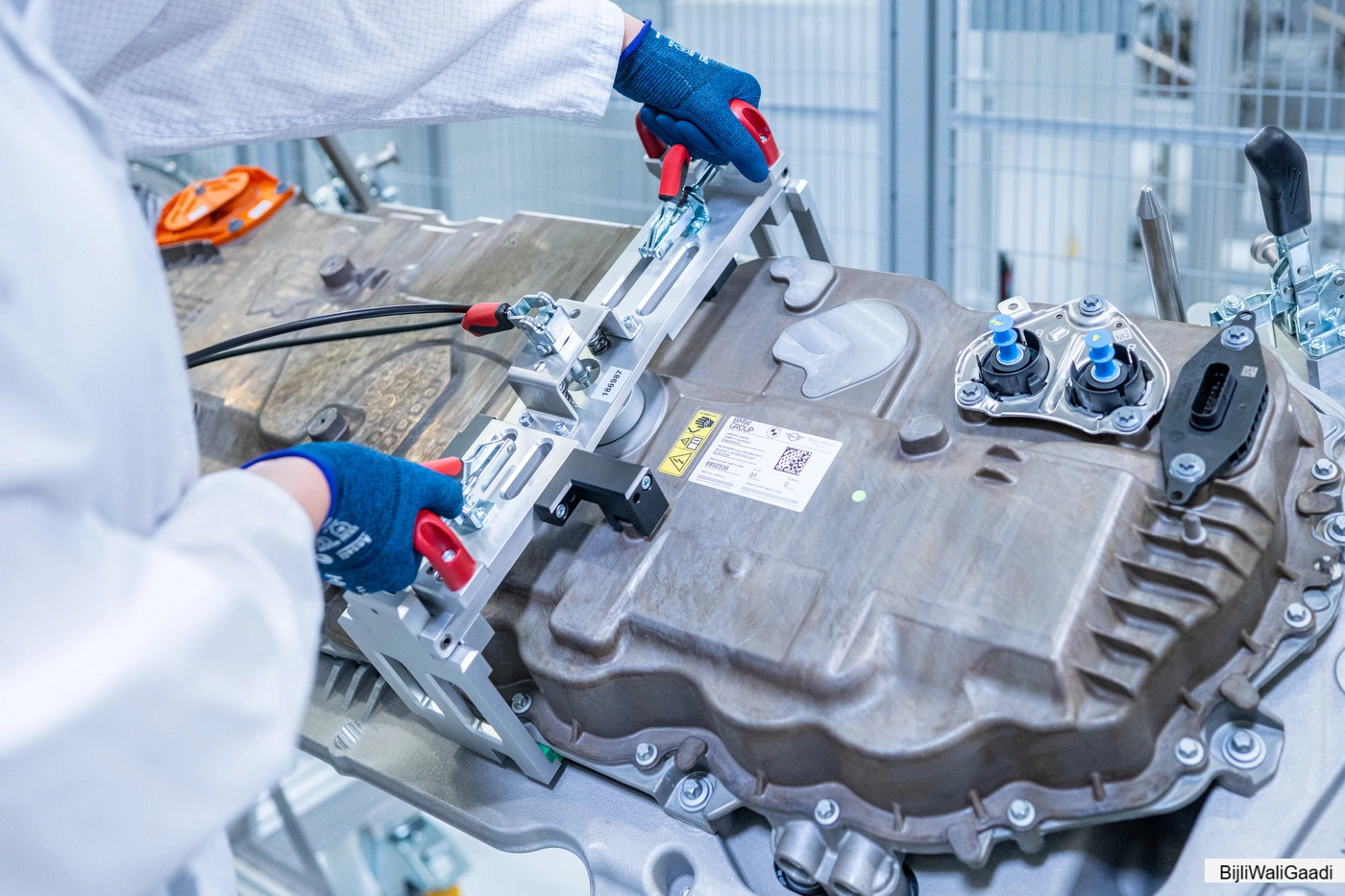

The BMW Energy Master drivetrain is a dedicated control unit that manages how power moves between the fuel cell system and the high-voltage battery, operating across a 400 to 800 volt range. New hardware for series production is being installed at BMW’s Landshut site, with prototypes also built in Dingolfing.
BMW Toyota Hydrogen Partnership: A Decade of Collaboration
The BMW Toyota hydrogen partnership began in 2014, when Toyota supplied the first-generation fuel cell drive used in the BMW 535iA. For Gen2, BMW designed the overall system while Toyota supplied individual cells. For Gen3, the two companies are jointly developing the entire system together for 2028.
From the 535iA to the iX5: BMW’s Hydrogen History
BMW’s hydrogen story stretches back to the 1970s oil crisis, when Germany rationed fuel and looked for alternatives. In 1979, seven years after the Munich Olympics introduced an electric 2002, BMW built its first hydrogen vehicle: a 5 Series fitted with a hydrogen combustion engine, a pre-development prototype.
The 7 Series Hydrogen Pilot Fleet and the H2R Speed Record
About twenty years later, BMW ran a pilot fleet of hydrogen-powered 7 Series cars using a 6.0-liter V12 combustion engine running on liquid hydrogen. Alongside it, the H2R prototype set an FIA speed record of over 300 km/h, proving hydrogen could deliver sporty performance as well as environmental benefits.
Why BMW Moved from Combustion to Fuel Cells
The 7 Series hydrogen program taught BMW two key lessons: burning hydrogen directly is not the most efficient way to use the gas, and liquid hydrogen never became standard at filling stations. Both findings pushed BMW toward fuel cell electric technology, which converts hydrogen to electricity far more efficiently.
Why BMW Chose the X5 as Its First Hydrogen Model
BMW selected the X5 as its hydrogen fuel cell SUV because it sells across nearly every global market, not only because of its size. Heavier vehicles, longer typical driving distances, and frequent towing all make fuel cell electric technology more advantageous, which is exactly the use case the X5 represents.
Can Hydrogen Cars Be Built on EV Assembly Lines?
Yes, and BMW has designed for it deliberately. Because the flat storage tank occupies the same space as the Gen6 battery, the iX5 Hydrogen can share a production line with battery electric and hybrid models. Asking whether hydrogen cars can be built on EV assembly lines is central to BMW’s plan.
Five Drivetrains, One Flexible Production Line
BMW’s flexible vehicle architecture is designed so the same X5 body can accept multiple drivetrains, not all at once but as needed per market. This boosts manufacturing flexibility, simplifies the integration of new technologies, and underpins the planned 2028 introduction of the iX5 Hydrogen into BMW’s production network.

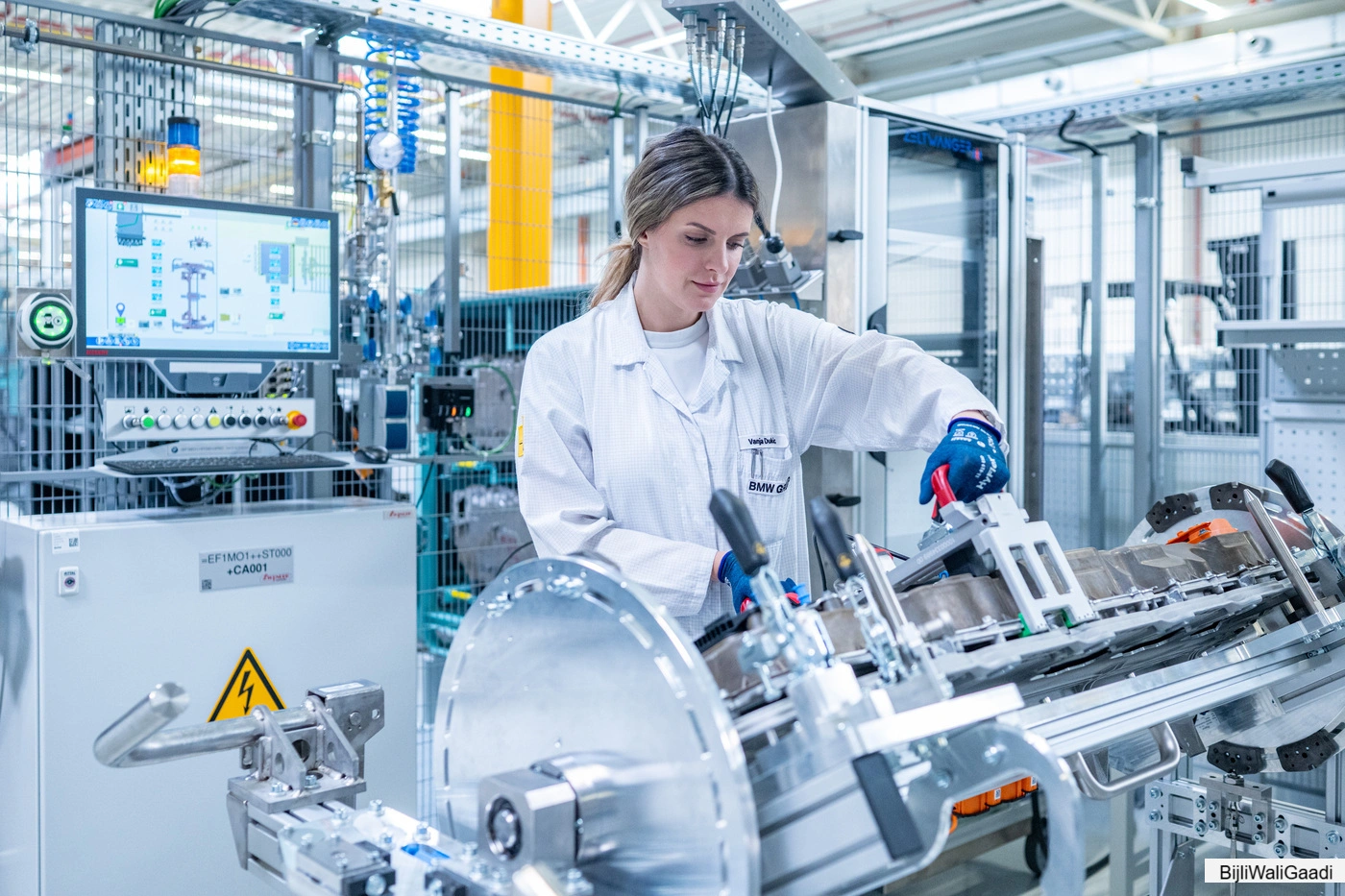

BMW Steyr Plant Hydrogen Conversion: From V8 Engines to Fuel Cells
The BMW Steyr plant hydrogen conversion repurposes a former V8 engine hall in Austria, where V8 production ended in late 2025, into a fuel cell assembly line. BMW is investing around €50 million, with pre-series production targeted for 2027 ahead of full Gen3 series production starting in 2028.
BMW Group Plant Landshut to Produce Key Component for Hydrogen Drivetrain

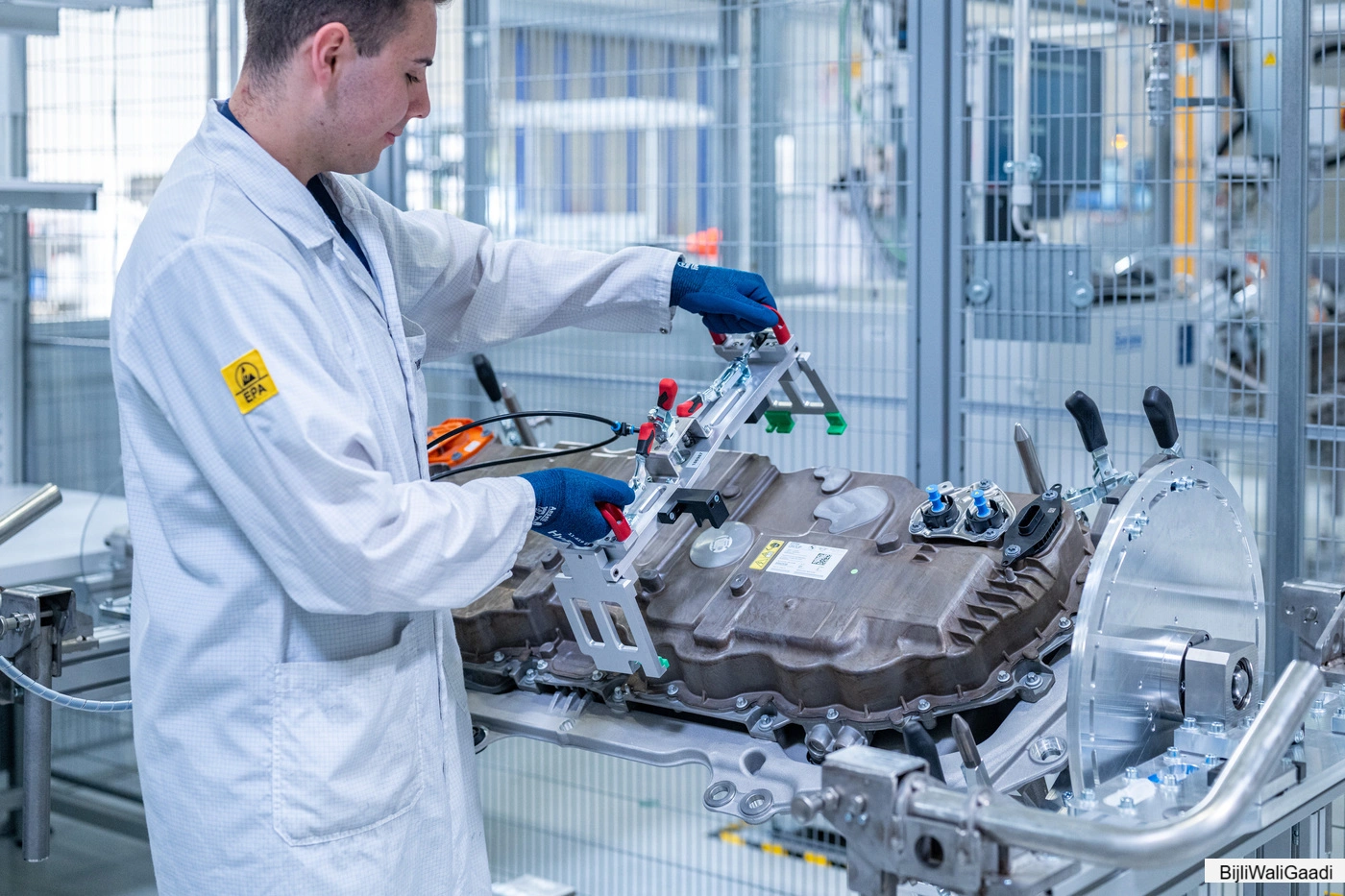

BMW Group Plant Landshut, which already builds the current iX5 Hydrogen pilot fleet, will continue producing key components for the Gen3 drivetrain. Its scope includes the sand-cast aluminum housing for the fuel cell stack, covering media intake and anode and cathode connections, plus housings and pressure plates.
Munich and Steyr: BMW’s Hydrogen Competence Centers
Full-scale prototypes of the Gen3 fuel cell system are currently being built at BMW’s hydrogen competence centers in Munich and Steyr. Munich remains the engineering base for development, testing, and sign-off, while Steyr’s facilities are being adapted with new test rigs ahead of series production starting in 2028.
BMW Hydrogen Car 2028: What Changes from Gen2 to Gen3
For the BMW hydrogen car 2028, the headline changes are a 25 percent smaller fuel cell system, a new flat storage tank delivering up to 750 km of range, and the BMW Energy Master managing power flow. Together, these upgrades aim for a meaningful jump over the Gen2 pilot fleet’s figures.
BMW Hydrogen SUV vs. Battery Electric: Why BMW Wants Both
BMW does not see this as a competition between technologies. The company expects battery electric vehicles to play a dominant role overall, but argues that a BMW hydrogen SUV adds a second zero-emission option, reduces reliance on battery raw materials, and gives customers fast refueling instead of charging stops.

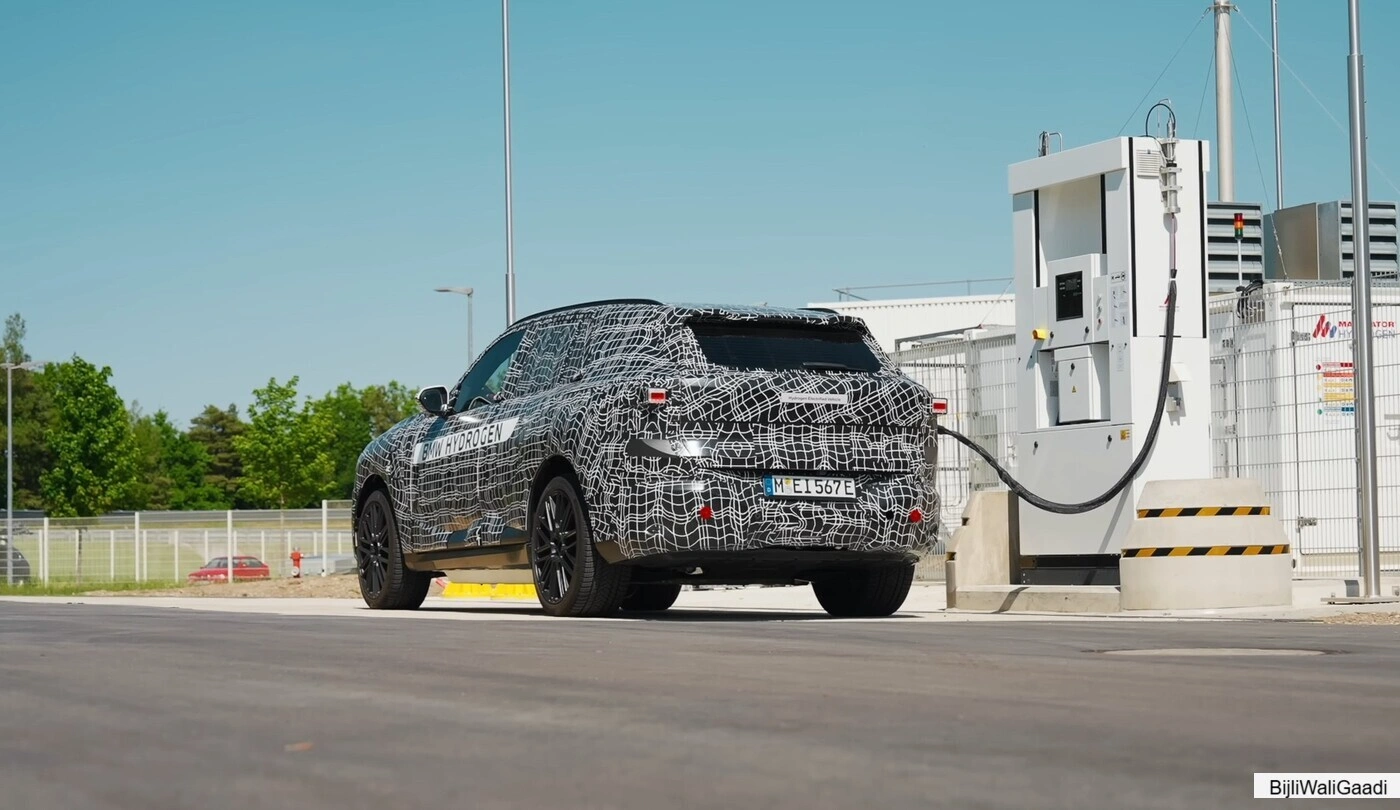

Hydrogen Refueling Infrastructure: Japan, Korea, and California
Fast refueling only matters if stations exist. Japan already has a relatively dense hydrogen refueling network, and South Korea and California also operate stations, though global coverage remains limited. BMW has pointed to this gap as one reason it targeted 2028 for the iX5 Hydrogen’s market launch.
Driving Pleasure: BMW’s Promise for the Hydrogen SUV
BMW engineers are adamant that hydrogen technology will not dilute the brand’s driving character. As one BMW hydrogen lead put it, the company would not be BMW if even a hydrogen vehicle were not genuinely fun to drive, promising a real BMW experience without compromise once the iX5 Hydrogen arrives.
What Comes Next for the BMW iX5 Hydrogen Program
BMW is currently testing Gen3 prototypes on real-world test tracks ahead of the 2028 launch. With production tooling underway at Steyr, components arriving from Landshut, and Munich coordinating development, the BMW iX5 Hydrogen is moving steadily from pilot fleet toward becoming BMW’s first series-produced hydrogen fuel cell SUV.
Frequently Asked Questions (FAQs)
-
How Far Can the BMW iX5 Hydrogen Drive on One Tank?
The BMW iX5 Hydrogen is engineered for up to 750 km on a single fill of roughly seven kilograms of hydrogen at 700 bar — a clear improvement over the Gen2 pilot fleet’s 502 km WLTP figure, enabled by the new seven-vessel flat storage tank system.
-

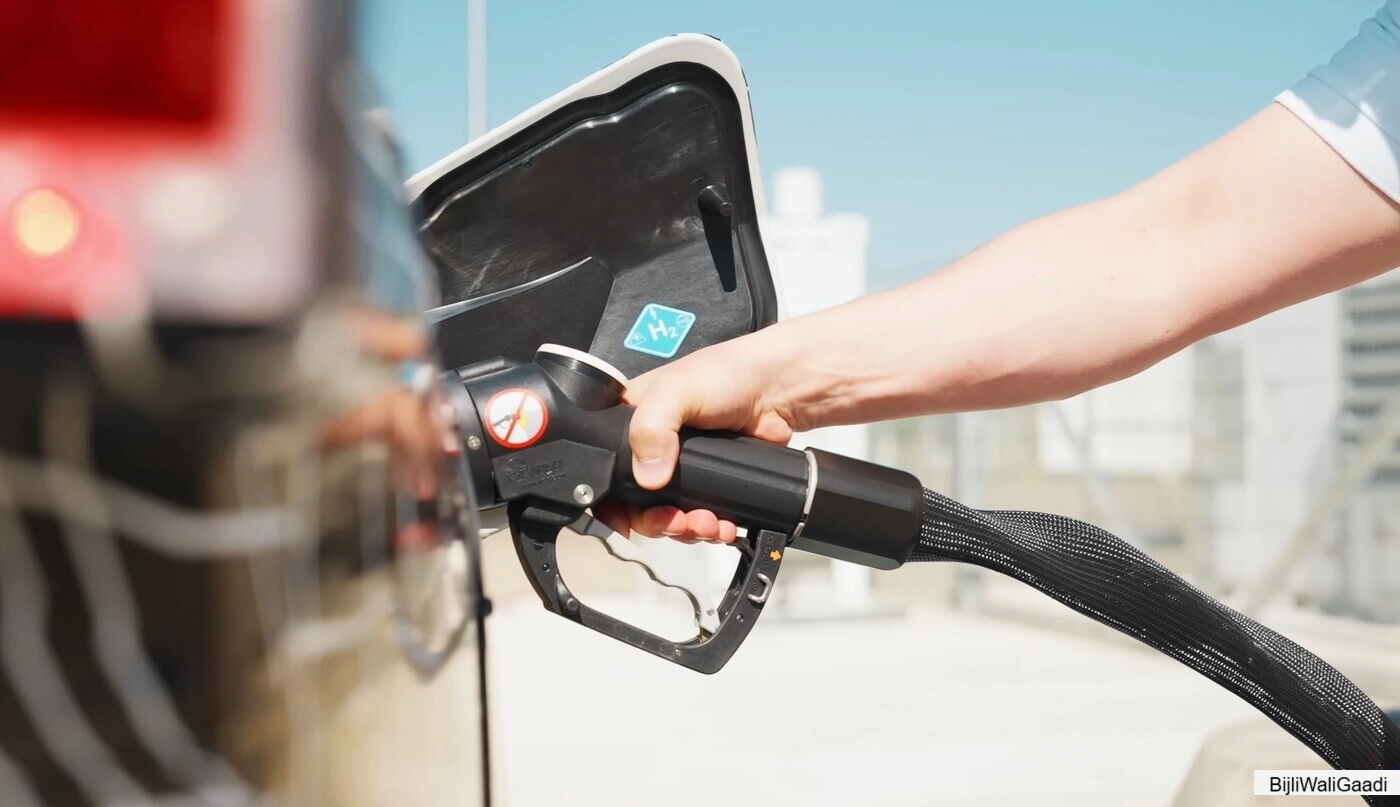

How Long Does It Take to Refuel a BMW iX5?
Refueling the BMW iX5 Hydrogen takes under five minutes, comparable to filling a petrol vehicle. This makes it dramatically faster than battery charging and is one of hydrogen’s strongest practical advantages, provided a hydrogen refueling station is accessible nearby.
-
When Can You Buy the BMW iX5 Hydrogen?
BMW has confirmed series production begins in 2028, making the iX5 Hydrogen BMW’s first production hydrogen fuel cell model. Final order books have not yet opened, but 2028 is BMW’s firm public target for market availability across key hydrogen-infrastructure regions.
-
What Is the BMW iX5 Tank Pressure?
The BMW iX5 stores hydrogen at 700 bar pressure inside seven carbon fiber composite vessels. This high-pressure standard — common across hydrogen passenger vehicles — allows roughly seven kilograms of hydrogen to fit within the underfloor flat storage system without compromising cabin space.
-
Is the BMW iX5 Hydrogen a Pure Electric Vehicle?
Yes. The BMW iX5 Hydrogen is a fully electric vehicle driven entirely by electric motors. Electricity is generated on board from hydrogen and oxygen via the fuel cell stack, with water vapor as the only emission — no combustion, no CO₂ at the tailpipe.
