Hairpin windings achieve a slot fill factor of 70–80% versus 40–50% for conventional round wire stators, packing significantly more copper into the same stator volume, reducing DC resistance, and unlocking power densities up to 4.5 kW/kg. The trade-off is genuine: the larger rectangular conductor cross-section amplifies skin and proximity effects at high speed, increasing AC copper losses and introducing high-frequency harmonic noise that demands deliberate PWM tuning to suppress. Every serious EV OEM — from Porsche to Hyundai to Tata — has made this trade, and understanding exactly why reveals the engineering logic driving modern traction motor design.

Critically, while first-generation hairpin technology was optimised for moderate urban-cycle speeds, the architecture has successfully evolved — through aggressive slot sub-division into 8, 10, and 12 conductor layers — to master the 20,000 RPM performance envelope now demanded by ultra-high-density PMSMs in the next generation of EV traction platforms.

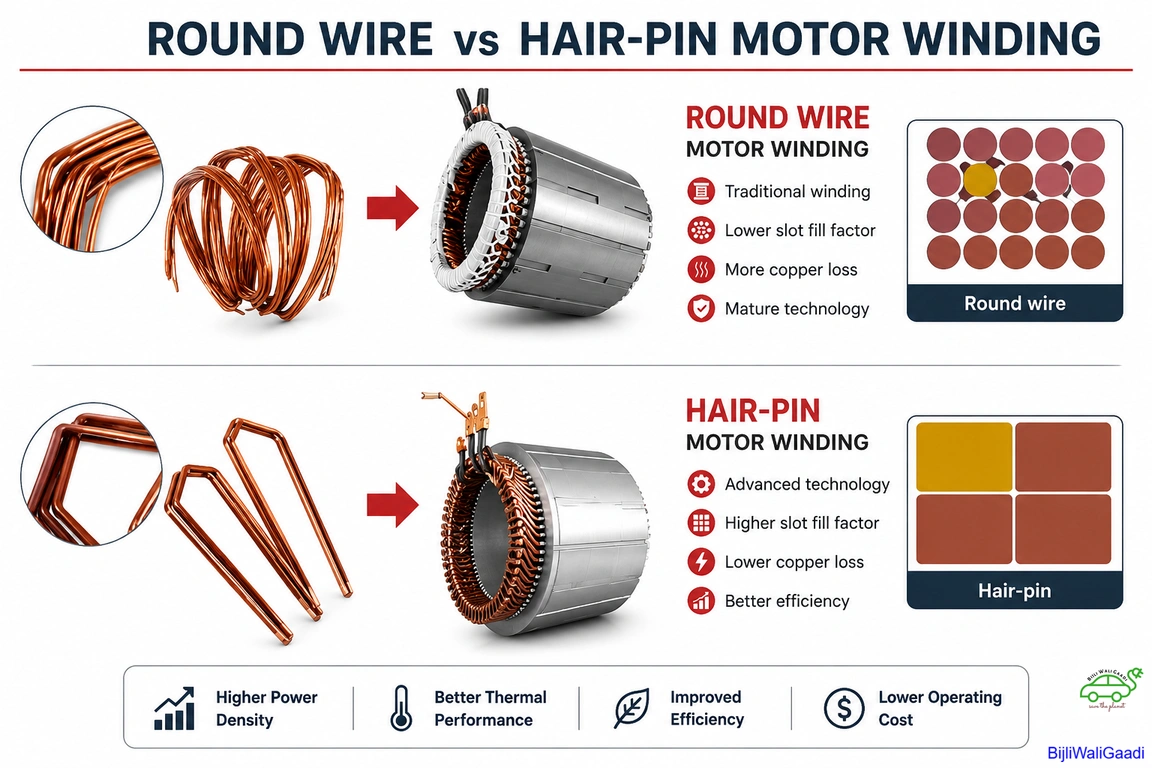

1. What Is a Hairpin Winding and How Does It Differ from Round Wire?

The Geometry Problem: Why Circles Cannot Pack Efficiently Into Rectangular Slots

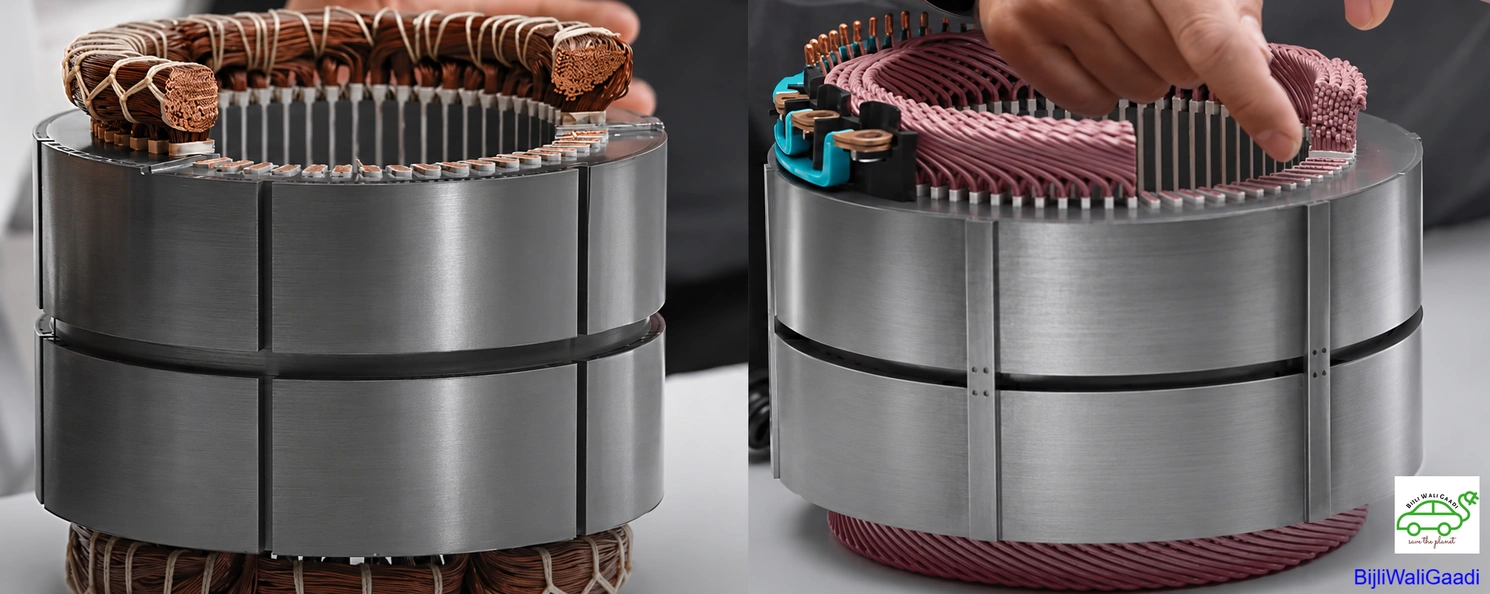

A hairpin winding replaces bundles of thin circular copper strands with solid, pre-formed rectangular conductors inserted into stator slots, twisted at one end, and welded at the other — replacing the random, air-gap-heavy packing of round wire with a deterministic, tightly ordered copper geometry that directly matches the rectangular slot profile.

In a conventional round-wire PMSM, circular strand cross-sections create unavoidable air gaps between wires when bundled in a rectangular slot, typically reducing usable copper area to just 40–50% of total slot area. Insulation layers compound this further, and no amount of winding tension changes the fundamental geometry of circles packing into rectangles. Hairpin conductors are solid rectangular copper bars — typically 2–4 mm wide and 1.5–3 mm tall — bent into a U-shape outside the stator, then inserted from one end of the lamination stack in precise, defined layer positions. According to Wikipedia‘s Hairpin Technology reference, fill factors reach 73% with standard hairpin windings; ResearchGate (2022) prototype stators have achieved 80.5% with optimised rectangular conductors.

Shorter End-Turns: Less Copper, Less Resistance, Less Weight

Hairpin windings also produce significantly shorter end-turn geometry compared to round wire designs. Round wire stators require long looping end turns at each end of the lamination stack — these contribute DC resistance and parasitic inductance without generating torque. A hairpin stator typically reduces end-turn axial length by 20–30% versus a comparable round wire design, directly reducing copper mass and overall motor length. This shorter end-turn also reduces the total winding resistance that contributes to I²R losses at the high currents of EV traction duty. The geometric precision of the pre-formed rectangular conductor makes this end-turn length repeatable to within fractions of a millimetre across millions of production stators.

Figure — Slot Fill Factor Comparison
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Round wire (stranded):   ████████████░░░░░░░░░░  45–50%
Hairpin (standard):       ██████████████████░░░░  70–73%
Hairpin (optimised):      ████████████████████░░  78–80%
░ = air gap + insulation void in slot cross-section
Source: Wikipedia Hairpin Technology; ResearchGate 2022
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

2. The Efficiency Case: DC Loss Reduction, Power Density, and Thermal Conduction

Hairpin motors show measurably higher efficiency across the base-speed operating region — the zone that dominates real-world EV driving duty cycles — because DC copper loss governs winding performance at low-to-moderate speeds, and hairpin’s 20–35% lower DC resistance directly reduces I²R losses at the 300–500A currents typical of EV traction motors.

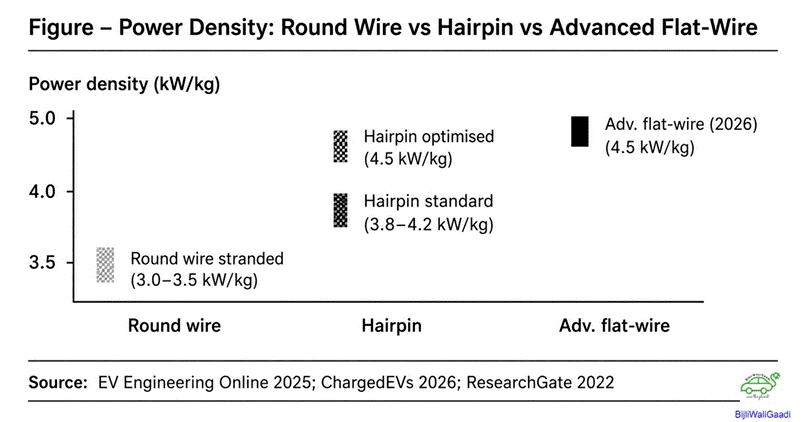

Power Density Advantage: Up to 4.5 kW/kg vs 3.5 kW/kg for Round Wire

The Ansys Blog (2024) comparison of a stranded versus hairpin stator designed for identical voltage, current, and slot current density showed the hairpin motor enabling a larger bore diameter with a shorter stack length — simultaneously increasing power density and reducing iron volume and iron losses. Power density numbers are concrete: hairpin motors reach up to 4.5 kW/kg, compared to approximately 3.5 kW/kg for round-wire motors — a 28% advantage that means either a lighter motor for the same output or higher output from the same underbody package envelope.

At the thermal limits of a liquid-cooled stator, the lower I²R loss also means more thermal margin available for sustained high-torque operation, which matters enormously in India’s high-ambient-temperature environment. This efficiency advantage is most pronounced in the constant-torque base-speed region — from zero to peak torque at rated current — which is precisely where most urban driving energy is consumed. According to EV Engineering Online (2025), Hyundai and Kia’s hairpin E-GMP motors achieve approximately 10% greater efficiency than conventional motors across this operating region.

Why Flat Conductors Run Cooler: Direct Cu-to-Steel Thermal Conduction

Rectangular conductors create a fundamentally better thermal conduction path compared to round wire bundles. In a round wire winding, interior strands are surrounded by other strands and trapped air — heat generated in the bundle’s core must conduct through multiple strand-to-strand contact points, each with thermal resistance, before reaching the stator lamination stack and the cooling jacket. The flat wires of a hairpin stator sit flush against each other and against the slot walls, eliminating inter-strand air gaps and creating a direct Cu-to-steel thermal pathway. This structural difference explains why oil-cooled hairpin stators, with direct oil contact on the end-turn weld joints, can sustain higher continuous current density than any comparably sized round wire stator.

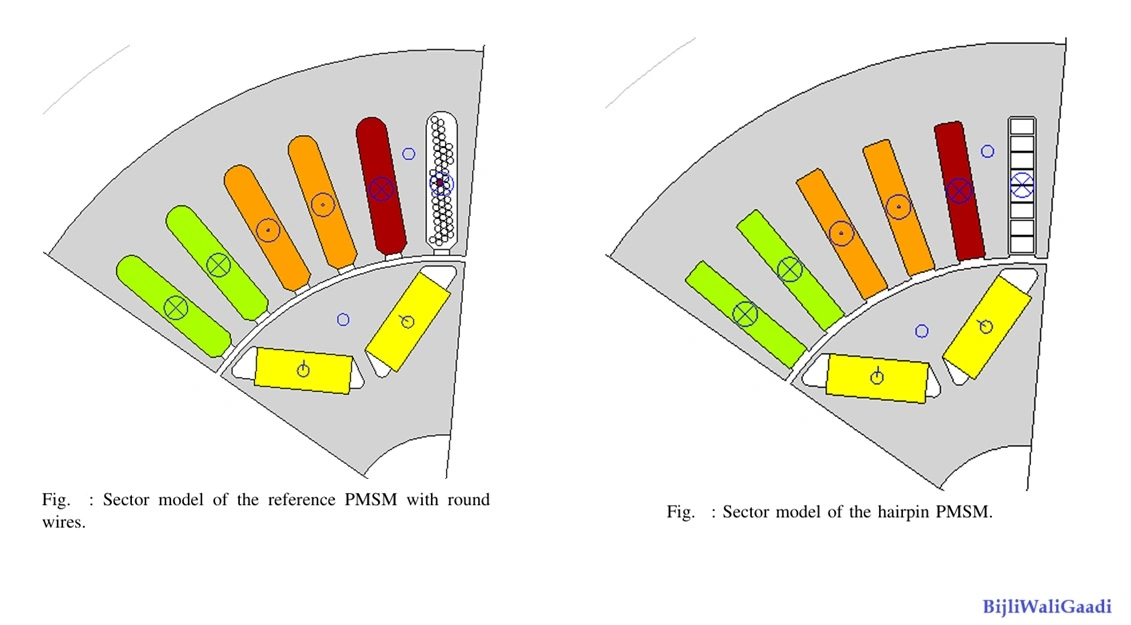

Figure — Stator Slot Cross-Section: Round Wire vs Hairpin
━━━━━━━━━━━━━━━━━━━━━━━━━━
ROUND WIRE SLOT             │  HAIRPIN SLOT
 ○○○○○○ ○○○○○○               │  ████████████████
○○○○○○○○○○○○○○               │  ████████████████
○○○○○○○○○○○○○○               │  ────────────────
○○○○○○○○○○○○○○               │  ████████████████
 ○○○○○○ ○○○○○○                │  ████████████████
Inter-strand air gaps         │  Zero air gap between layers
reduce fill to ~45%          │  Fill reaches 70–73%
Poor internal heat path       │  Direct Cu→Steel conduction
━━━━━━━━━━━━━━━━━━━━━━━━━━

3. The NVH Problem: Skin Effect, Proximity Effect, and PWM Harmonic Losses at High Speed

The same large rectangular conductor cross-section that enables hairpin winding’s low DC resistance becomes a liability at high electrical frequencies — skin and proximity effects force current toward the conductor surface, reducing effective conduction area and generating AC copper losses that can exceed DC copper losses by a factor of 2–5 at 6,000+ RPM.

Skin Effect: How Large Conductor Cross-Sections Become a High-Speed Liability

The skin effect causes alternating current to concentrate on a conductor’s surface as frequency increases, reducing the effective cross-sectional area available for current flow. In copper, skin depth at 1 kHz is approximately 2.1 mm — comparable to the full width of a typical hairpin conductor — and rectangular conductors exhibit a more pronounced skin effect than circular conductors with the same cross-sectional area because their surface-to-cross-section ratio is higher.

By 5–10 kHz (the harmonic frequencies generated by a SiC inverter switching at 10–20 kHz), the skin depth in copper falls below 1 mm, confining current to a thin surface shell and substantially elevating effective AC resistance. The result is a winding whose copper appears electrically much smaller at high speed than its physical cross-section would suggest — precisely the opposite of the slot fill advantage that makes hairpin attractive at low speed.

At 20,000 RPM — the operating ceiling of the next-generation ultra-high-density PMSMs now entering development — the fundamental electrical frequency of a typical 8-pole motor exceeds 1.3 kHz. Combined with 10–20 kHz SiC inverter switching harmonics and their high-order sidebands, the effective skin depth in copper drops below 0.5 mm. A first-generation thick-gauge U-pin hairpin conductor at that operating point sees the AC-to-DC resistance ratio K_ac = R_ac/R_dc scale drastically beyond the 2–5× baseline factor observed at moderate RPM — current crowding and intensified slot leakage flux in multi-layer slots compound the skin loss into a regime where the winding’s thermal and efficiency performance degrades sharply without active mitigation.

Proximity Effect and PWM Harmonics: The Two Compounding Loss Mechanisms

The proximity effect adds a second loss mechanism on top of the skin effect. The alternating magnetic field generated by current in adjacent conductors induces eddy currents in neighbouring conductors, causing uneven current distribution and additional losses that scale with both conductor area and slot leakage flux intensity. In a six-layer hairpin stator, inner-layer conductors are exposed to the combined leakage flux of all conductors above them in the slot — producing a loss gradient where inner conductors dissipate 3–5× the AC power of outer conductors at the same current.

Research published on ResearchGate (2022) quantified that PWM-induced harmonic AC copper losses in hairpin IPMSMs can shift the motor’s efficiency map by 1–4% in the low-speed, light-load region — exactly the zone that dominates Indian urban driving cycles. At high-speed highway profiles — and especially in motors designed to reach 20,000 RPM — this loss gradient is amplified exponentially. Without multi-layer mitigation, the K_ac ratio across the slot depth can span an order of magnitude between outer and inner conductors, making thermal runaway of the inner winding layers the primary reliability constraint at sustained high-RPM operation.

Figure — AC Loss Ratio vs Motor Speed (Hairpin vs Round Wire)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
AC Loss / DC Loss ratio

  5× ┤                                         ╭──── Hairpin 6-layer
  4× ┤                                   ╭─────╯
  3× ┤                             ╭─────╯
      │                      ╭──────╯              ─── Hairpin 2-layer
  2× ┤              ╭────╭──╯
     │       ╭──────╯   ···············Round wire (fine stranded)
  1× ┤·······
     ┼──────────┬──────────┬──────────┬──────
             2,000      4,000      6,000+    RPM

6-layer hairpin has significantly higher AC losses than 2-layer at high speed due to greater slot leakage flux on inner conductors.
Source: MDPI Machines 10.11 (2022); ResearchGate AC Loss Analysis 2024
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

4. Mitigating AC Losses: Transposition, Sub-Division, and Continuous Hairpin (CHP)

The three primary engineering strategies for controlling AC copper loss in hairpin windings are conductor transposition across slot layers, conductor cross-section sub-division, and Continuous Hairpin (CHP) wave winding — and production motors typically deploy all three strategies simultaneously rather than relying on any single approach.

Conductor Transposition and Variable Cross-Section: Equalising Leakage Flux Exposure

Conductor transposition routes each parallel conductor path through multiple slot layer positions — inner layers in some poles, outer layers in others — equalising leakage flux exposure and preventing any single conductor from accumulating disproportionate proximity losses. According to MDPI Machines 2022, a properly transposed 6-layer hairpin winding can reduce AC copper loss by 40–60% compared to an untransposed design at 6,000 RPM, bringing its high-speed performance close to that of a 2-layer design. Research on variable-section hairpin conductors (ResearchGate, May 2024) further demonstrated that grading conductor cross-section from wider at the slot opening to narrower at the slot base reduces proximity-effect losses in inner layers without sacrificing total slot copper area.

The practical manufacturing challenge is that variable-section conductors require multiple conductor geometries per stator, complicating the automated insertion process and adding die-tooling cost — a trade-off being actively resolved by Tier-1 winding suppliers. Conductor sub-division — splitting each rectangular bar into thinner sub-conductors separated by insulation — is no longer merely an alternative for demanding applications; it has become a mandatory standard for any motor designed to operate above 10,000 RPM.

Modern OEMs targeting the 20,000 RPM envelope sub-divide stator slots into 8, 10, or 12 conductor layers of much thinner rectangular bars, deliberately keeping each individual conductor height well below the 0.5 mm skin depth limit at peak operating frequency. This multi-layer architecture keeps K_ac close to 1.0 even at maximum speed — preserving the slot fill advantage of hairpin while simultaneously controlling the AC copper loss that would otherwise make the winding thermally unviable at sustained high RPM.

Continuous Hairpin (CHP) Wave Winding: Eliminating Weld Joints and Reducing End-Turn Height

Continuous Hairpin (CHP), also called wave winding, eliminates the individual U-pin insert-and-weld process entirely by inserting a single rectangular conductor in a continuous wave pattern through all slots. At 20,000 RPM, CHP transitions from a manufacturing preference to a mechanical and thermal necessity: a conventional U-pin stator at this speed carries hundreds of individual end-turn weld joints, each of which acts as a localised high-resistance hot spot and a mechanical fatigue nucleation site under the extreme centrifugal and vibration loads of sustained high-RPM operation. Eliminating these joints via CHP is not optional at the 20,000 RPM envelope — it is a prerequisite for the winding’s mechanical integrity and thermal uniformity across the full operating life.

Each weld point that remains is a potential localised resistance increase compounded by fatigue cracking — particularly under the vibration signatures of Indian road conditions — making CHP’s zero-weld architecture the correct baseline for any high-RPM traction motor programme. Tier-1 suppliers including Bosch, Schaeffler, and Valeo are actively commercialising CHP stators as the production technology that follows the current U-hairpin generation (ScienceDirect, 2022). CHP also reduces end-turn height by allowing tighter bend radii than individual U-pins, compressing axial machine length by an additional 5–10 mm and directly recovering active stack length.

This dimensional saving is convertible into higher torque output within the same motor housing envelope — making CHP both the reliability and the performance upgrade over standard U-hairpin.

5. Head-to-Head Engineering Comparison: Hairpin vs Round Wire

11-Parameter Breakdown — Which Technology Wins on Each Design Axis

The table below compares round wire (stranded) and hairpin winding across eleven engineering parameters directly governing EV traction motor performance, reliability, and manufacturing economics. Green cells indicate a clear engineering advantage; amber indicates adequate performance with caveats; red indicates an inherent structural disadvantage of that conductor type.

The verdict is not absolute — the correct winding technology depends on duty cycle, operating speed range, and cost constraints, not on a single-axis ranking. Use this table as a structured starting point for motor selection, not as a definitive design guide.

Engineering Parameter	Round Wire (Stranded)	Hairpin Winding	Advantage
Slot fill factor	40–50%	70–80%	Hairpin
DC copper resistance	Baseline	20–35% lower	Hairpin
Power density	~3.5 kW/kg	Up to 4.5 kW/kg	Hairpin
Base-speed efficiency	Lower	Higher (larger high-η zone)	Hairpin
AC copper loss (>4,000 RPM)	Moderate (Litz/stranded retains high-freq. advantage)	High in 4–6 layer designs; advanced 8–12 layer sub-divided hairpin claws back to near-parity (Kac ≈ 1.0–1.3 at 10,000–20,000 RPM)	Round wire/Litz at 4–6 layers; Adv. hairpin (8–12L) at high RPM
PWM harmonic sensitivity	Low (fine strands average out)	High (large conductor area)	Round wire
End-turn axial length	Longer	20–30% shorter	Hairpin
Thermal conduction to core	Poor (inter-strand air gaps)	Good (flat Cu-to-steel contact)	Hairpin
NVH at high speed	Lower harmonic whine	Higher (needs active tuning)	Round wire
Weld joint reliability	No welds required	End-turn welds (risk point)	Round wire
Manufacturing automation	Good	Excellent (deterministic geometry)	Hairpin

6. Which Production EVs Use Hairpin Motors — and Why It Is Now the Industry Default

Hairpin winding has become the default stator technology for mass-market EV traction motors because its slot fill, power density, and manufacturing automation advantages outweigh the high-speed AC loss penalty across the duty cycles that matter most — urban and suburban driving at 40–80 km/h where motor electrical frequencies stay moderate and the DC resistance advantage is fully realised.

Porsche, Hyundai E-GMP, BYD e-Platform 3.0: Hairpin Is Now Table Stakes

The Porsche Taycan features dual hairpin motors achieving nearly 70% copper fill factor, with its PMSMs converting over 90% of electrical energy into propulsion. Hyundai and Kia’s Electric Global Modular Platform (E-GMP) uses hairpin-wound rear traction motors, confirmed to achieve approximately 10% greater efficiency than conventional motors (EV Engineering Online, 2025).

 BYD‘s e-Platform 3.0 — used in the BYD Seal — employs flat-wire hairpin stators in both front and rear motors, and General Motors’ Ultium platform, Toyota‘s bZ series, and BMW’s fifth-generation eDrive all standardise on hairpin stators. The technology is no longer a competitive differentiator; it is the minimum viable stator design for any OEM targeting credible power density and efficiency in a 2025-onwards EV motor.

The Manufacturing Argument: Automated Insertion, Dimensional Repeatability, Higher Yield

The manufacturing case sealed hairpin’s dominance alongside the electromagnetic case. The flat-conductor-based stator production is becoming accepted by almost all automotive manufacturers worldwide and is expected to largely replace classic round wire winding for electric traction motors during this decade (ScienceDirect, 2022). Automated hairpin insertion machines from Grob, MATIC, and Gehring achieve stator insertion cycle times under 30 seconds with superior dimensional repeatability — no post-insertion settling variability, no random strand placement.

This deterministic conductor geometry means every stator in a production batch has measurably the same resistance, inductance, and turn-to-turn capacitance — process consistency that round wire winding cannot achieve at comparable throughput. Quality defect rates and assembly yield are both superior to comparable round wire winding lines, making hairpin the manufacturing engineer’s choice as well as the electromagnetics engineer’s.

7. India Conclusion: Hairpin Motors and the Indian EV Operating Reality

For Indian EV platforms — defined by sustained low-speed urban traffic, 35–45°C ambient temperatures, compact SUV underbody packaging, and a market price band where every gram and every rupee of BOM cost is scrutinised — hairpin winding’s advantages in power density, thermal management, and low-speed efficiency are precisely aligned with Indian duty cycle requirements.

Which Indian EVs Already Use Hairpin Motors — and Why Buyers Don’t Know It

The Tata Curvv EV (launched August 2024, ₹17.49–21.99 lakh) uses a PMSM on Tata’s acti.ev Generation 2 platform delivering 110–123 kW. The Hyundai Creta Electric (launched January 2025, 135 kW, 473 km ARAI range) uses the E-GMP hairpin motor across its full variant lineup. The BYD Seal uses a dual-motor hairpin configuration on e-Platform 3.0. The first two represent India’s most aspired-to EVs in the ₹15–30 lakh segment — Indian buyers are already experiencing hairpin motor technology every single day; they just rarely know it.

45°C Ambient and Stop-Go Traffic: Why India’s Duty Cycle Favours Hairpin

At 40–45°C ambient — routine across North India in May–June — the thermal headroom between operating winding temperature and insulation class limit narrows by 15–20°C compared to the 25°C European test conditions at which most motor thermal models are validated. A Class H insulation system (rated 180°C maximum) at 45°C ambient leaves a winding thermal budget of only 135°C, versus 155°C at 25°C ambient — a 13% reduction in the temperature margin available for electromagnetic losses.

A hairpin stator’s direct Cu-to-steel thermal conduction preserves 20–30°C more thermal margin versus a round wire stator across the same conductor-to-core path, making hairpin meaningfully better suited to Indian summer operating conditions. India’s dominant stop-and-go urban driving also keeps motor speeds in the 500–3,000 RPM zone where hairpin AC losses are low and harmonic whine is minimal — the worst-case NVH operating region for hairpin motors is precisely the one Indian EV users engage least frequently. This alignment is not coincidental — hairpin motor technology was developed for exactly the combination of power density, moderate-speed efficiency, and automated manufacturing that Indian EV platforms at the ₹15–30 lakh price point demand.

PLI Scheme, Localisation, and the ₹12 Lakh Price Point: The Manufacturing Imperative

India’s domestic motor manufacturing ecosystem — Sona BLW Precision Forgings, Tata AutoComp Systems, and Mahindra Electric’s in-house engineering division — is actively investing in hairpin winding production capability as a direct lever for EV component localisation under PLI scheme targets. The Automotive PLI scheme creates financial incentives for OEMs to increase domestic value-add in electric drive units, and the stator winding is one of the highest-value, most automatable subassemblies in that supply chain.

A domestic hairpin winding line capable of 500,000 stators per year is achievable with approximately ₹80–120 crore in winding and welding automation investment — within reach of India’s large Tier-1 suppliers under the current PLI cycle. Successfully localising hairpin stator production would reduce India’s EV motor import dependence and support the cost trajectory needed to bring EVs below the ₹12 lakh price point where true mass-market adoption begins.
