What Is BYD DM-i Hybrid Technology — and How Does It Actually Work?
BYD’s DM-i (Dual Mode intelligent) is a fifth-generation PHEV architecture with one governing priority: keep the petrol engine off unless it can operate at peak efficiency, and get it off the drivetrain entirely unless doing so wastes energy. The system integrates a 1.5L Atkinson-cycle engine, a Blade LFP battery, and a Dedicated Hybrid Transmission (DHT) into a single co-engineered assembly — no conventional gearbox, no torque converter, no belt-driven variator.
In pure city driving, the engine is off; the traction motor draws directly from the Blade battery. When SoC drops below ~20%, the engine starts but stays decoupled from the drivetrain, spinning the onboard generator in series mode while the motor drives the wheels. Above 75–80 km/h, a single wet multi-plate clutch locks the engine shaft mechanically to the drivetrain — eliminating all generator and inverter conversion losses on the main power path. The TCU manages this transition within milliseconds, adjusting fuelling and ignition timing in real time to synchronise engine RPM with drivetrain speed before the clutch engages, preventing any driveline shunt.
DM-i ships in two battery configurations: a ~10 kWh Blade LFP pack (EV range ~80 km) and a ~15~18 kWh pack (EV range up to 120+ km). BYD’s cell-to-pack architecture eliminates the intermediate module layer, raising volumetric energy density and the structural thermal ceiling versus conventional NMC packs. The DM-i badge is efficiency-specific — the DM-p (performance) sub-brand on models like the Han and Tang uses a power-prioritised architecture with higher peak output but lower thermal efficiency.
[TECHNICAL BRIEF]: BYD DM-i vs. BYD “Super Plug-in Hybrid” DM-i — Decoding the Nomenclature
In global automotive literature, readers will often encounter the terms “BYD DM-i” and “BYD Super Plug-in Hybrid DM-i” used interchangeably. Mechanically, they are not competing systems; rather, they represent an engineering philosophy and its generational evolution:
THE SYSTEM CONCEPT (DM-i):
“DM” stands for Dual Mode (BYD’s umbrella term for Plug-in Hybrid technology), and “i” stands for intelligent (signaling an efficiency-first calibration). Generically, DM-i refers to the structural framework: an Atkinson-cycle engine acting primarily as a generator, a traction motor driving the wheels, and a single-speed clutch box bypassing a traditional transmission gearset.

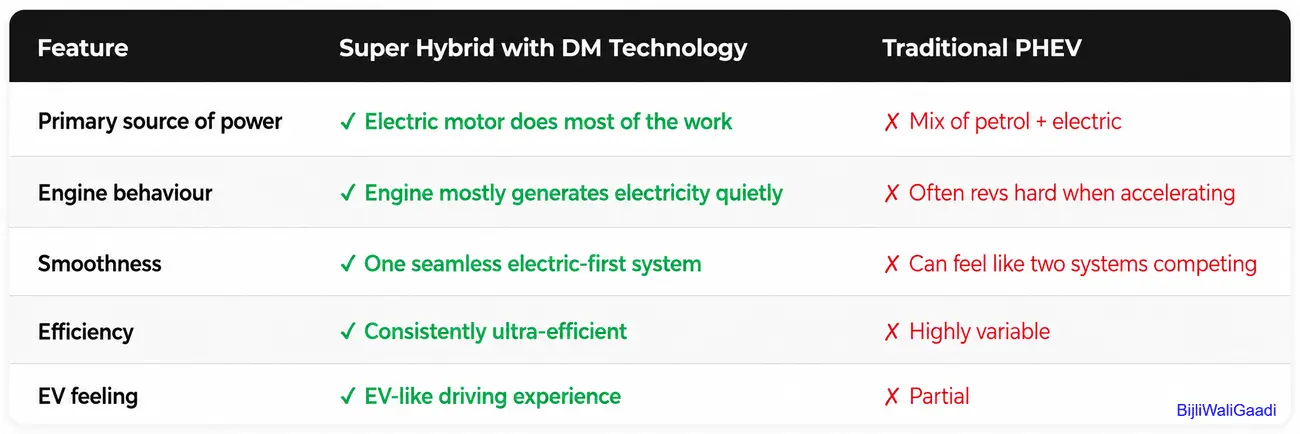

THE PHILOSOPHICAL SHIFT (“Super Plug-in Hybrid” DM-i):
BYD officially brands the production hardware as “Super Hybrid DM-i” to denote a complete inversion of traditional PHEV architecture. While standard European or Japanese PHEVs use a dominant gasoline engine assisted by a small electric motor, a “Super Hybrid” architecture scales up the electric motor and battery so that the vehicle operates as a pure EV for 80-90% of drive cycles, reserving the internal combustion engine (ICE) strictly as a secondary power plant or high-speed direct-drive tool.
THE GENERATIONAL GAP (DM-i 4.0 vs. DM-i 5.0):
When evaluating BYD’s latest vehicles, the true technological leap lies in the generation of the Super Plug-in Hybrid system:
- DM-i 4.0: Leveraged the Xiaoyun 1.5L engine with a 43.04% thermal efficiency, paired with an EHS145/EHS160 transaxle.
- DM-i 5.0 (The Latest Evolution): Upgrades to an ultra-high 16:1 compression ratio engine pushing an unprecedented 46.06% thermal efficiency. The integration of new-generation power semiconductors boosts power control density by 70%, allowing a downsized packaging constraint while extending real-world combined hybrid cruising ranges past 2,000 km on a single tank/charge.
Which BYD Vehicles Use the DM-i Hybrid System in 2026?
| Model | Segment | DM-i Battery (approx.) | EV Range |
| BYD Seal 5 DM-i | Compact SUV | 15.8 kWh | ~100 km |
| BYD Sealion 6 DM-i | Mid-size SUV | 18.3 kWh | ~120 km |
| BYD Song Plus DM-i | Mid-size SUV | 8.3 / 15.0 kWh | ~80–110 km |
| BYD Song Pro DM-i | Compact SUV | 8.3 kWh | ~80 km |
| BYD Qin Plus DM-i | Compact Sedan | 10.1 / 15.0 kWh | ~80–120 km |
| BYD Han DM-i | Executive Sedan | 15.0 kWh | ~100 km |
| BYD Tang DM-i | Large SUV | 21.5 kWh (AWD) | ~100 km |
| BYD Destroyer 05 DM-i | Sedan | 10.1 / 15.0 kWh | ~80–120 km |
| BYD Frigate 07 DM-i | Large SUV | 19.0 kWh | ~100 km |
| BYD Atto 5 / Seal U DM-i | Compact SUV | 15.0 kWh | ~100 km |

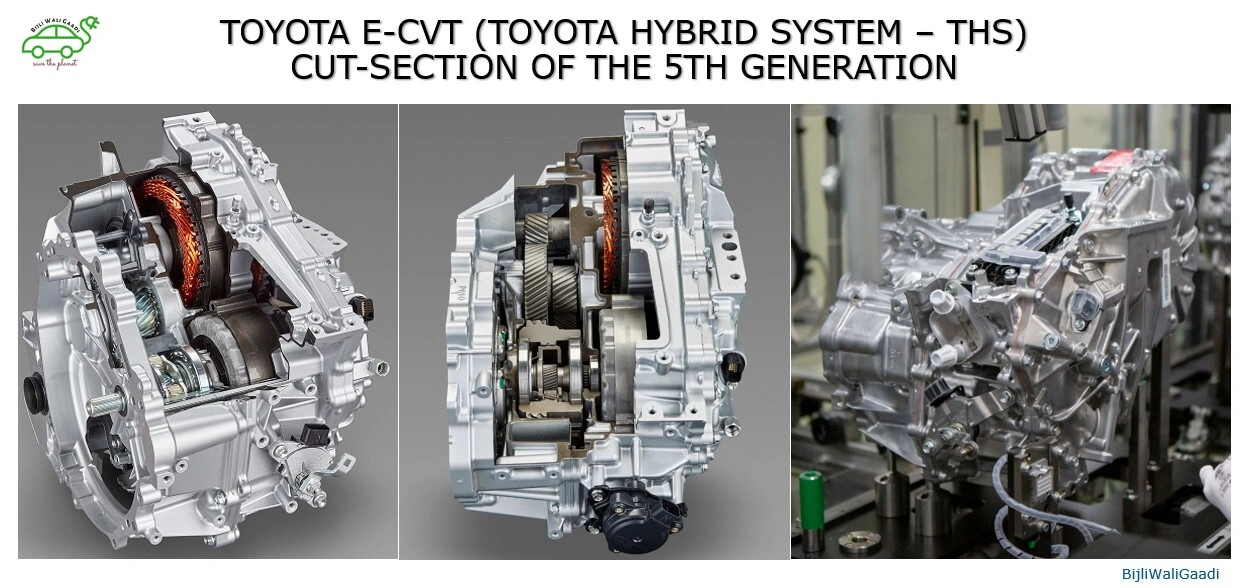

What Is Toyota’s 5th-Gen THS 5 Hybrid System — and What Has Actually Changed From THS-II?
Toyota’s 5th-Generation Hybrid System (THS 5), still marketed externally as the e-CVT, is the most significant structural evolution of the planetary power-split architecture since THS-II debuted in 2004. The system (THS – Toyota Hybrid System) retains the same three-element planetary gear set — engine on the planet carrier, MG1 on the sun gear, MG2 and output shaft on the ring gear — but every electrical component has been redesigned around reduced switching losses and higher continuous power density.
The headline hardware change is the Power Control Unit (PCU) relocated directly above the transaxle, eliminating the long high-voltage cabling run between the inverter and the motor windings that contributed measurable resistive and switching losses in THS-II. Co-location shortens the current path, reduces parasitic inductance, and allows the PCU to operate at higher switching frequencies with lower thermal penalty. Alongside this, both MG1 and MG2 have been uprated with higher-torque, lower-inertia winding geometries — the result is faster electrical torque response that eliminates the well-documented “rubber-band effect” of earlier e-CVT calibration and allows genuine sustained EV cruising at speeds that previously required ICE intervention. MG2 peak torque output is up roughly 10–15% in the current generation, depending on the application.
The critical battery constraint remains: standard THS 5 strong hybrid variants carry 1.3–2 kWh of usable storage — enough for regen absorption and acceleration assist, not for meaningful EV-only range. On THS 5 PHEV variants (RAV4 Prime, Prius Prime), a larger traction battery enables 65–70 km of EV operation before the system reverts to charge-sustaining strong hybrid mode. The planetary set topology remains clutch-free — torque blending is continuous through MG1’s variable reaction speed — which is simultaneously the source of THS 5’s refinement and its residual parasitic loss floor during nominally EV-mode operation.
How Is THS 5 Deployed in the Indian Market — and Which Vehicles Use It?
India is now a primary THS 5 volume market. Toyota’s TNGA platform brings the system to three distinct application tiers, each with battery chemistry calibrated to its specific duty cycle:
Innova Hycross (and Maruti Suzuki Invicto): Uses the 2.0L TNGA 5th-Gen Hybrid paired with a 201.6V Nickel-Metal Hydride (NiMH) battery pack — a deliberate engineering choice, not a cost compromise. NiMH chemistry is retained specifically for this platform because it delivers superior power cycling stability under high continuous payload loads and outperforms lithium-ion in sustained high-temperature charge/discharge environments typical of an 8-seater MPV operating in Indian tropical conditions. The Invicto is mechanically identical, sharing Toyota’s TNGA-C platform under a Maruti body.
Camry Hybrid: Uses the 2.5L Dynamic Force engine with THS 5 and a Lithium-ion battery — the global-standard chemistry for this sedan platform, where payload demands are lower and the Li-ion pack’s higher energy density enables a more responsive urban electric assist profile.
Urban Cruiser Hyryder / Maruti Suzuki Grand Vitara: These compact SUVs leverage THS 5’s high-density component packaging on a 1.5L architecture — the PCU-over-transaxle integration and compact MG packaging that THS 5 enables are critical to fitting a full planetary hybrid system into the B-SUV package envelope. Both use a Li-ion battery in the strong hybrid configuration.
| Model | Market | System Generation | Engine | Battery Chemistry | EV-only Range |
| Toyota Innova Hycross | India | THS 5 (Strong Hybrid) | 2.0L TNGA Atkinson | NiMH 201.6V | ~None (HEV) |
| Maruti Suzuki Invicto | India | THS 5 (Strong Hybrid) | 2.0L TNGA Atkinson | NiMH 201.6V | ~None (HEV) |
| Toyota Camry Hybrid | India / Global | THS 5 (Strong Hybrid) | 2.5L Dynamic Force | Lithium-ion | ~None (HEV) |
| Toyota Urban Cruiser Hyryder | India | THS 4-derived (Strong Hybrid) | 1.5L Atkinson | Lithium-ion | ~None (HEV) |
| Maruti Suzuki Grand Vitara | India | THS 4-derived (Strong Hybrid) | 1.5L Atkinson | Lithium-ion | ~None (HEV) |
| Toyota Vellfire Hybrid | Global / India | THS 5 (Strong Hybrid) | 2.5L Atkinson | Lithium-ion | ~None (HEV) |
| Toyota RAV4 Hybrid | Global | THS 5 (Strong Hybrid) | 2.5L Dynamic Force | Lithium-ion | ~None (HEV) |
| Toyota RAV4 Prime | Global | THS 5 (Plug-in Hybrid) | 2.5L Dynamic Force | Lithium-ion | ~68 km |
| Toyota Highlander Hybrid | Global | THS 5 (Strong Hybrid) | 2.5L Dynamic Force | Lithium-ion | ~None (HEV) |
| Toyota Prius | Global | THS 5 (Strong Hybrid) | 2.0L Dynamic Force | Lithium-ion | ~None (HEV) |
| Toyota Prius Prime | Global | THS 5 (Plug-in Hybrid) | 2.0L Dynamic Force | Lithium-ion | ~69 km |
| Toyota Corolla Hybrid | Global | THS 5 (Strong Hybrid) | 1.8L / 2.0L Atkinson | Lithium-ion | ~None (HEV) |
| Toyota Crown / Crown Signia | Global | THS 5 (Strong Hybrid) | 2.5L Dynamic Force | Lithium-ion | ~None (HEV) |
| Toyota Sienna Hybrid | Global | THS 5 (Strong Hybrid) | 2.5L Atkinson | Lithium-ion | ~None (HEV) |
[ENGINEER’S NOTE ON EV-ONLY RANGE]: Toyota’s THS 5 (e.g., Innova Hycross) is a Strong Hybrid (HEV) with a compact 1.3–1.6 kWh buffer battery designed only for low-speed micro-bursts (parking, heavy traffic) before engaging the petrol engine after 4–5 km. It cannot be plugged in. Its older THS Gen 4 variant (e.g., Maruti Grand Vitara) uses an even smaller ~0.6 kWh battery with a max auto-EV range of 2.6 km. Conversely, BYD’s DM-i is a true Plug-in Hybrid (PHEV) with a massive traction battery delivering 60–100+ km of full-speed, pure electric commuter driving on grid power.
How Do BYD’s DHT and Toyota’s THS 5 Actually Differ in Mechanical Architecture — and Where Does Each System Lose Energy?
The two systems are built on opposing mechanical philosophies. THS 5’s planetary set keeps the engine, MG1, and output shaft in continuous mechanical contact — torque blends infinitely by varying MG1’s reaction speed. The PCU-over-transaxle integration in THS 5 reduces inverter losses versus THS-II, but the fundamental topological constraint remains: MG1 must absorb planetary reaction forces even during EV-mode operation, creating an irreducible parasitic loss floor that cannot be calibrated away within the planetary architecture.
BYD’s DHT eliminates this by physically decoupling the engine from the drivetrain at all speeds below the lock-up threshold. Below 75–80 km/h, the engine-to-drivetrain path is mechanically open; only the traction motor and Blade battery are in the power chain. The single wet multi-plate clutch closes only when the TCU confirms RPM synchronisation — at that point, the engine connects to the wheels with zero conversion step, no generator, no inverter, no motor in the main path. This is not a refinement of a planetary concept — it is a topologically different architecture that achieves its highway efficiency by removing intermediate conversion stages entirely rather than optimising them.
BYD DM-i DHT vs Toyota THS 5 (e-CVT): Side-by-Side Architecture Breakdown
| Parameter | BYD DM-i DHT | Toyota THS 5 (e-CVT) |
| Core Architecture | Series-Parallel DHT, EV-first | Power-split planetary, engine-first |
| Primary Propulsion (City) | Traction motor via Blade LFP battery | Blended ICE + MG2 via planetary set |
| Clutch Mechanism | Single wet multi-plate clutch | Clutch-free; continuous planetary coupling |
| PCU / Inverter Location | Integrated in DHT assembly | Mounted directly over transaxle (THS 5 upgrade) |
| Motor Torque Response | High — direct motor drive, no planetary lag | High — THS 5 MG2 uprate eliminates rubber-band effect |
| Peak Thermal Efficiency | 43.04% (Atkinson 1.5L) | ~41% (2.5L Dynamic Force); ~43% (2.0L Prius PHEV) |
| Real-world Fuel Target | ~4.8 L/100 km (combined, PHEV depleted) | ~5.0–5.4 L/100 km (strong hybrid, combined) |
| EV-only Range | 80–120 km (PHEV: Seal 5, Sealion 6 DM-i) | ~0 km (HEV trims) / 65–70 km (Prime PHEV trims) |
| Engine Engagement | Speed-threshold lock-up (≥75–80 km/h) | Continuous planetary torque blending |
| Battery Chemistry (India) | Blade LFP, 10–18 kWh | NiMH 201.6V (Hycross/Invicto); Li-ion (Camry, Hyryder) |

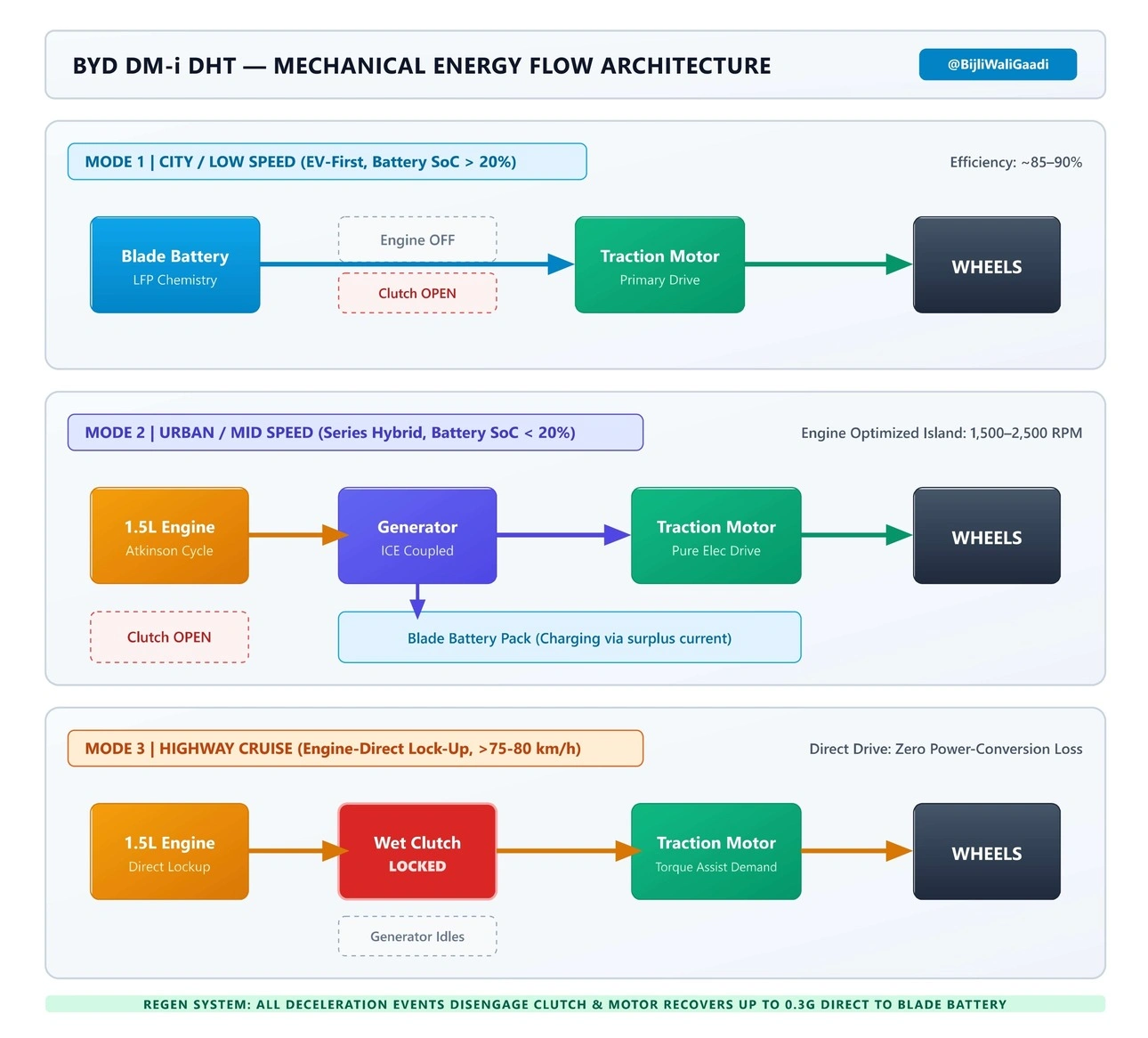

BYD DM-i Energy Flow Diagram
How Does BYD’s 43.04% Thermal Efficiency Compare to Toyota’s Dynamic Force Engine — and Where Does the Gap Come From?
BYD’s 1.5L Atkinson-cycle engine achieves 43.04% peak thermal efficiency through four co-dependent mechanisms. The extended Atkinson expansion ratio extracts more work per combustion event before exhaust valve opening. A water-cooled EGR circuit recirculates exhaust gases into the intake, lowering peak combustion temperatures to suppress knock — allowing a high effective compression ratio without premium fuel. The integrated exhaust manifold, cast directly into the cylinder head, accelerates catalyst light-off and recovers exhaust heat into the engine cooling circuit. Critically, the DHT architecture enforces a 1,500–2,500 rpm operating band by decoupling the engine from the drivetrain whenever vehicle load would push it outside that window — the transmission is doing thermal management work, not just power management work.
Toyota’s 2.5L Dynamic Force engine in the Camry Hybrid and global THS 5 applications peaks at approximately 41% thermal efficiency — a 2-point gap attributable partly to the larger displacement’s higher thermal mass (slower catalyst light-off, more cold-start fuel consumed per trip) and partly to the planetary set’s need to run the engine at a broader operating range to balance MG1 reaction loads.
In Toyota’s revised 2.0L Dynamic Force in the 9th-generation Prius PHEV does reach ~43%, closing the gap precisely — but that engine is not yet deployed in Indian-market THS 5 applications as of mid-2026. For the Innova Hycross and Camry Hybrid buyer in India, the 2-point efficiency gap over the 1.5L DM-i engine is real, measurable, and most pronounced on short urban trips where cold-start penalty is highest.
Why Does BYD’s Blade LFP Battery Give DM-i a Structural Edge — and Why Did Toyota Choose NiMH for the Hycross?
BYD’s Blade LFP pack delivers two compounding efficiency advantages. Its flat discharge voltage curve across 20–80% SoC holds the motor-inverter input voltage stable across the operating range, reducing inverter switching losses that otherwise increase as cell voltage sags under load. LFP chemistry also sustains no exothermic thermal runaway below ~270°C versus ~150–180°C for NMC — in Indian ambient conditions regularly reaching 40–45°C, this meaningfully cuts active cooling parasitic load.
Toyota’s battery chemistry choices in India are application-specific rather than generational. The Innova Hycross and Invicto retain NiMH (201.6V) because high-payload MPV duty cycles involve sustained high-current discharge under full-occupancy loads in high-ambient-temperature conditions — precisely the operating regime where NiMH’s proven charge acceptance rate, lower internal resistance under deep continuous cycling, and absence of lithium-plating risk at elevated temperatures outweigh its lower energy density. The Camry Hybrid and Hyryder, operating at lower sustained loads in sedan and compact-SUV duty, use Li-ion, where the energy density advantage is more useful and thermal stress is lower. Toyota’s chemistry differentiation by application is a calibrated engineering decision; BYD’s LFP-across-the-range strategy reflects confidence in Blade architecture’s thermal properties at scale.
How Does Regenerative Braking Capacity Differ — and Why Does Battery Size Define the Real-World Gap?
BYD’s regen system is motor-dominant to ~0.3g deceleration before friction brakes blend in, with predictive regen on equipped models using navigation data to pre-condition the SoC window ahead of known deceleration zones. The 15–18 kWh Blade pack absorbs complete urban deceleration cycles without approaching saturation.
THS 5’s regen hardware is mechanically capable, but the 1.3–2 kWh HEV buffer saturates rapidly in dense stop-start traffic — surplus kinetic energy beyond that threshold dissipates through the resistor network as waste heat. This is not a THS 5 design flaw; it is an inherent consequence of right-sizing the battery for strong hybrid duty rather than PHEV-scale energy storage. The Prius Prime and RAV4 Prime avoid this with larger PHEV packs, but India’s THS 5 market — Hycross, Camry, Hyryder — operates exclusively on HEV buffer sizes. The DM-i’s regen advantage is therefore largest precisely in the urban conditions Indian buyers encounter most.
Is BYD’s Single-Clutch DHT as Reliable Long-Term as Toyota’s Planetary THS 5?
Toyota’s planetary gear set transmits load through fluid film gear mesh contacts with no friction wear surfaces engaged in normal operation — the mechanical reason THS (across all generations) produces documented 400,000+ km drivetrain integrity in India’s high-utilisation Innova Hycross, Camry, and Vellfire fleet applications. THS 5’s PCU-over-transaxle integration reduces thermal cycling on the power electronics, further improving long-term component reliability versus THS-II.
BYD’s DHT carries five to six years of volume production data post its 2020 launch. The wet clutch pack is mechanically simpler than a planetary set, but wet clutches degrade under repeated thermal cycling — and the highway lock-up engagement occurs at every urban-to-highway speed transition. No systemic failure pattern has emerged through 150,000 km in China’s high-density fleet data, but BYD has not yet accumulated the multi-generational, multi-climate reliability dataset Toyota has built over 25 years. That gap compresses annually; as of June 2026, it remains a legitimate consideration for high-mileage Indian buyers.
What Is Toyota’s Engineering Response to BYD’s DHT Efficiency Lead?
Toyota’s technical response is already in production. The 9th-generation Prius PHEV’s 2.0L Dynamic Force engine hits ~43% peak thermal efficiency, matching BYD’s headline figure. More structurally significant: Toyota’s 2024–25 patent filings detail a lock-up clutch element integrated into the planetary set — replicating the DM-i’s zero-conversion-loss highway cruise mode within the THS topology. Should that architecture enter Toyota’s 2027 production cycle, BYD’s clearest mechanical differentiator — the direct-drive highway lock-up — becomes a shared capability rather than a DM-i exclusive. The efficiency gap between these two platforms is compressing faster than either company’s product positioning acknowledges.
[ENGINEER’S VERDICT]
In June 2026, BYD DM-i DHT leads on efficiency and technology — EV-first logic, Blade LFP flat-discharge stability, and a regen buffer that cannot saturate in normal urban use collectively produce the lower per-kilometre cost in Indian metro conditions. Toyota THS 5 leads on long-term reliability, refinement, and application-specific engineering intelligence — the NiMH Hycross and Li-ion Camry are not generic hybrid deployments but calibrated solutions for distinct Indian duty cycles. BYD wins the efficiency argument today. Toyota holds the trust and reliability record. For a metro buyer doing 60+ km daily: DM-i. For a high-payload family MPV or fleet-grade intercity use case: THS 5 still earns every rupee of its premium.
