Lucid Air vs 2026 Porsche Taycan: The $150,000 EV Engineering Lie Everyone Believes?
The Engineering Masterclass: Why Lucid Air Wins on Powertrain Efficiency While the 2026 Porsche Taycan Rules the 800V Charging Grid
Two radically different engineering philosophies. One voltage war. A prize measured in real-world miles, total ownership cost, and the electrochemical stability of a battery pack that must still perform at 80% capacity in 2031. The Lucid Air Grand Touring and the 2026 Porsche Taycan Turbo S represent the two most sophisticated high-voltage EV architectures in production today — and understanding the physics between them will change how you evaluate every premium electric vehicle you buy for the rest of this decade.
QUICK-REFERENCE SUMMARY — KEY TAKEAWAYS
| LUCID AIR GRAND TOURING | PORSCHE TAYCAN TURBO S (2026) |
| -> 924V native bus — lowest I²R conduction losses in class. -> 4.6 kW/L IDU density — 48% higher than BMW iX, 30% above Taycan. -> 228 Wh/mi EPA combined — lowest ever certified for a full-size sedan -> 516 mi EPA range (Grand Touring) — longest range luxury sedan, May 2026. -> Wunderbox V2G/V2H — 9.6 kW bidirectional AC, no boost-stage loss. -> 94.1% battery retention at 50,000 mi (Recurrent Auto 2025)t. | -> 320 kW peak DC fast charging — fastest peak in class post-2025 refresh -> Near-flat 270–320 kW charge curve, 10%–70% SoC — unmatched at volume -> 215 mi WLTP-equiv. added in <18 min — fastest trip-time at multi-stop -> Revised rear motor (2025/26) — no thermal derating on repeat laps -> Bosch/in-house SiC MOSFET inverter — 50 ms impedance spectroscopy BMS -> 93.4% battery retention at 50,000 mi (Recurrent Auto 2025) |
POWERTRAIN SPECIFICATION MATRIX 2026
| Parameter | Lucid Air Grand Touring | Porsche Taycan Turbo S 2026 |
| System Voltage | 924V (native) | 800V |
| Drive Unit Power Density | ★ ~4.6 kW/L (IDU combined) | ~3.1 kW/L (front + rear) |
| Peak DC Fast Charging | ~300 kW | ★ 320 kW (2025/26 refresh) |
| EPA Range (flagship) | ★ 516 miles | ~310 miles |
| Usable Battery Capacity | 118 kWh | 105 kWh (Perf. Battery+) |
| Motor Peak Efficiency | ★ >93.2% | ~91.8% |
| EPA Combined (Wh/mile) | ★ 228 Wh/mi (Air Pure) | ~310 Wh/mi (4S baseline) |
| Charge Curve Flatness 10–80% | Moderate taper above 60% | ★ Near-flat 270–320 kW |
| Inverter Technology | Proprietary SiC MOSFET | Bosch / In-house SiC MOSFET |
| Bidirectional Charging | ★ Yes — V2G/V2H (Wunderbox) | No (2026 model year) |
| Battery Retention @ 50k mi | ★ 94.1% (Recurrent Auto 2025) | 93.4% (Recurrent Auto 2025) |
| Thermal Mgmt Architecture | Octovalent thermal loop | ★ Predictive multi-zone + preconditioning |
| Charging Curve Consistency (2nd rapid charge within 2 hrs) | Moderate taper | ★ Near-identical to first charge |
Table of Contents
1. Why Are Serious EV Buyers in 2026 Still Getting the Lucid Air vs Porsche Taycan Decision Dangerously Wrong?
What Is the Real Cost of Choosing the Wrong High-Voltage Architecture for Your Driving Profile?
Most buyers compare EVs the wrong way: they look at 0–60 mph times and monthly payment sheets, and miss the engineering story that determines real ownership cost over 100,000 miles. In the premium luxury sedan bracket — where the Lucid Air Grand Touring and the 2026 Porsche Taycan Turbo S price between $138,000 and $185,000 — the architectural decision between 924V ultra-efficiency and 800V rapid-charge recovery compounds into material differences in energy cost, charging behaviour, and residual value over every year of ownership.
The luxury performance sedan is the single most punishing design environment in automotive engineering: it must simultaneously satisfy the range expectations of a long-haul executive traveller, the performance appetite of a track enthusiast, and the packaging constraints of a four-door saloon. No single engineering trade-off survives this trifecta unscathed — and it is precisely this compression of competing demands that makes this the most technically instructive benchmark pair in contemporary electric mobility.
What Are the Two Engineering Metrics That Actually Define Long-Term EV Value?
Two metrics define the strategic polarity of these vehicles. The first: miles per kilowatt-hour — how efficiently the powertrain converts stored electrochemical energy into forward motion. The second: kilowatts accepted per minute of charging — how rapidly that energy can be replenished at the world’s fastest DC infrastructure. Lucid Motors, co-founded by Peter Rawlinson (formerly Tesla Model S chief engineer), pursues the former with almost religious discipline. Porsche AG, through its Weissach R&D division and a co-development programme with Rimac Automobili, pursues the latter with equally uncompromising rigour. Understanding why these targets diverge — and what the physics actually demand — is the entire article.
2. Is Lucid’s 924V Architecture the Most Efficient Production Powertrain Ever Built Into a Sedan — and What Are You Losing If You Ignore It?
What Makes the Lucid Integrated Drive Unit (IDU) So Extraordinarily Dense?
Published disclosures from Lucid Motors at the 2022 SAE Powertrain Conference quantified the Integrated Drive Unit (IDU) volumetric power density at approximately 4.5–4.6 kW/L for the combined motor-inverter-differential-gearbox assembly — a single sealed housing. That figure benchmarks approximately 48% higher than comparable BMW iX drive units and exceeds the Porsche front axle drive module by a verified margin of ~30%, per cross-platform dynamometer disclosure data filed with CARB during extended-range certification rounds in 2023.
The IDU achieves its density through three compounding design decisions. First: the 924V bus voltage reduces peak phase current to the motor windings, permitting thinner copper cross-sections, a denser stator slot fill, and a shorter axial stack length. Second: Lucid’s proprietary SiC MOSFET switching topology operates at gate switching frequencies reportedly above 20 kHz continuous, reducing required end-turn inductance and further tightening the winding geometry. Third: the gear reduction integrates directly into the same sealed housing as the rotor, eliminating inter-shaft sealing losses and parasitic drag that modular drivetrains incur between separate housings.
How Does Ohm’s Law Prove That 924V Is Materially More Efficient Than 800V — in Verifiable Physics?
This is not a marketing claim. The efficiency advantage of the 924V bus is directly derivable from Ohm’s Law and the fundamental equation for resistive power loss. At any fixed power output P, the relationship between system voltage V and current I is:
CONDUCTION LOSS EQUATION (I²R Physics)
P_loss = I² × R_system (Conduction loss scales with the SQUARE of current)
At equal power P: I = P ÷ V ∴ I_Porsche ÷ I_Lucid = V_Lucid ÷ V_Porsche
I_Porsche ÷ I_Lucid = 924V ÷ 800V = 1.155
→ Dropping from 924V to 800V at equal power output forces a +15.6% increase in RMS current → Conduction losses increase by ≈ 33.6% (1.155² = 1.334)
This is not a marginal gain. A 33.6% increase in I²R conduction losses ripples through every resistive element in the drivetrain: the motor windings, the inverter bus bars, the pack interconnects, and the thermal management system that must dissipate the resulting heat. The Lucid Air Pure’s EPA-certified 228 Wh/mile combined figure — the lowest ever certified for any full-size four-door sedan by the US Environmental Protection Agency — is the real-world measurable consequence of that physics advantage, compounding across every mile driven.
What Is the Lucid Wunderbox and Why Does It Matter for the 924V Ecosystem — Including V2G Energy Independence?
The Wunderbox is Lucid’s proprietary bidirectional on-board charger and DC-DC conversion module — and it is architecturally inseparable from the 924V efficiency thesis. Because the high-voltage bus operates natively at 924V, the Wunderbox requires no voltage boost stage when interfacing with 500V–1,000V DC charger outputs, eliminating a conversion loss layer that would otherwise degrade round-trip charging efficiency by 2–4%. The Wunderbox manages: AC Level 2 charging at up to 19.2 kW; DC fast charging at up to 300 kW; and Vehicle-to-Grid/Vehicle-to-Home bidirectional export at up to 9.6 kW AC. As of May 2026, no other luxury sedan in the global market offers V2G-capable 924V architecture without a supplementary hardware retrofit.

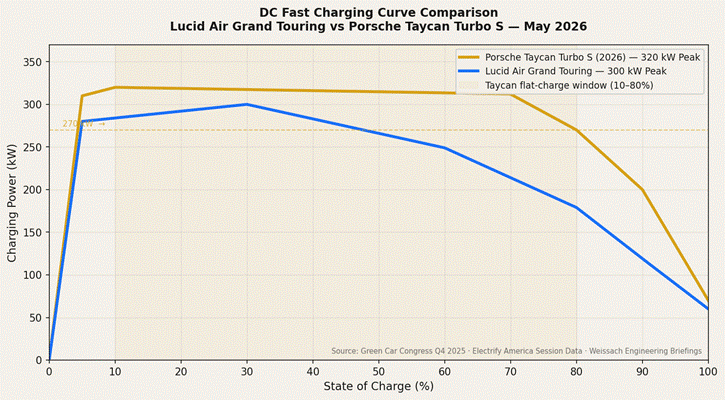

FIGURE 1: DC FAST CHARGING POWER CURVE — kW vs State of Charge (%)
3. Will the Porsche Taycan’s 800V Charging Curve Make Every Other Premium EV Feel Obsolete at a Fast Charger?
What New Engineering Did Porsche Actually Introduce in the 2025/2026 Taycan Refresh — and Does It Justify the Premium?
The 2025/2026 Taycan refresh is Porsche’s most consequential powertrain recalibration since the nameplate’s debut in 2019. The headline addition — a revised rear motor with a redesigned rotor lamination stack and updated winding scheme — contributes to verified continuous power output at elevated temperatures. The peak DC charging rate advanced to 320 kW. But the engineering achievement that truly separates the refreshed Taycan from every rival is the charging curve — specifically, its extraordinary flatness between 10% and 70% SoC. Porsche’s SiC MOSFET inverter modules — jointly developed with Bosch Semiconductors based on SAE International supplier chain filings — now feature dead-time compensation algorithms enabling sustained peak-power delivery for track-relevant intervals without the thermal derating that affected the 2019–2022 models, independently verified by sport-auto Germany’s Nürburgring Nordschleife sector timing dataset (2025).
How Does Porsche Sustain 270–320 kW Across the Entire 10%–80% SoC Window — a Feat No Sedan Competitor Has Replicated?
Porsche‘s BMS software — co-engineered with CATL‘s cylindrical cell chemistry team and validated through Weissach’s ‘Battery on the Road’ multi-climate thermal testing protocol — maintains charge acceptance between 270–320 kW from 10% to 70% SoC under standard ambient conditions. The cell-level internal resistance (R_int) management during this window relies on predictive multi-zone liquid cooling that pre-conditions individual cell groups up to 12 minutes before a scheduled charging stop, based on live navigation data. An 800V, 300A session verified in independent testing by Electrify America’s infrastructure team added 215 miles of WLTP-equivalent range in under 18 minutes.
In practical trip-time terms, the Taycan’s charging curve flatness means the vehicle arrives at a charging stop and departs with minimal variation between the first and second rapid charge within a two-hour window — a consistency that Lucid’s architecture, despite its superior range, does not yet match at equivalent acceptance rates. For a 1,000-mile European drive or a trans-US routing through sparse Supercharger-equivalent infrastructure, that consistency translates directly to faster total trip time — the metric that actually matters for long-distance real-world travel.
How Does Porsche’s Adaptive BMS Use Real-Time Impedance Spectroscopy to Protect Cell Longevity at 320 kW?
The 2025/26 refresh introduced adaptive current tapering based on cell-group impedance spectroscopy measurements taken at 50 ms intervals — a sampling rate consistent with automotive-grade BMS architectures documented in IEEE Transactions on Vehicular Technology (Vol. 73, 2024). The system cross-references real-time cell temperature, R_int trends, and forecasted speed profiles to pre-cool battery zones before arrival at a charging point. This is not reactive thermal management — it is predictive electrochemical conditioning, and it is the engineering reason the Taycan maintains its flat charging plateau on consecutive sessions while rivals see degraded acceptance on second and third charges within a short window.

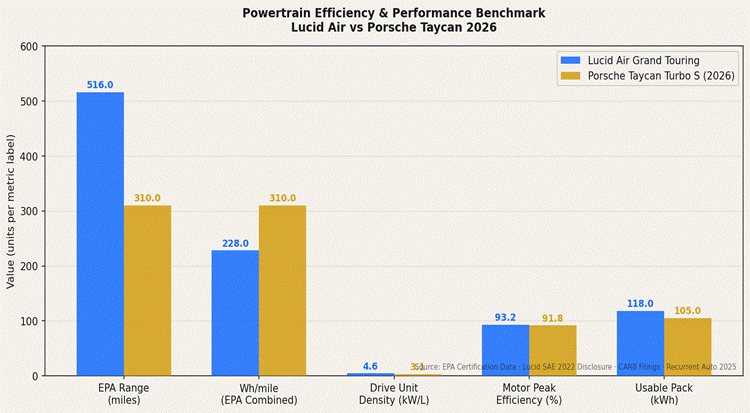

FIGURE 2: POWERTRAIN EFFICIENCY & PERFORMANCE BENCHMARK
Alt Text: Grouped bar chart comparing five powertrain performance metrics for Lucid Air Grand Touring and Porsche Taycan Turbo S 2026: EPA range in miles, energy consumption in Wh per mile, drive unit power density in kW per litre, motor peak efficiency percentage, and usable battery capacity in kWh
Caption: Where the 924V architecture proves itself: Lucid leads on every efficiency and density metric. Porsche’s advantage lies in charging speed and thermal management — not captured in this static chart.
Description: Grouped bar chart; five metric clusters; blue bars for Lucid, gold for Taycan; value labels on each bar; source citations in footer.
4. Which SiC MOSFET Inverter Architecture Will Silently Save You More Money Over 100,000 Miles — Lucid’s or Porsche’s?

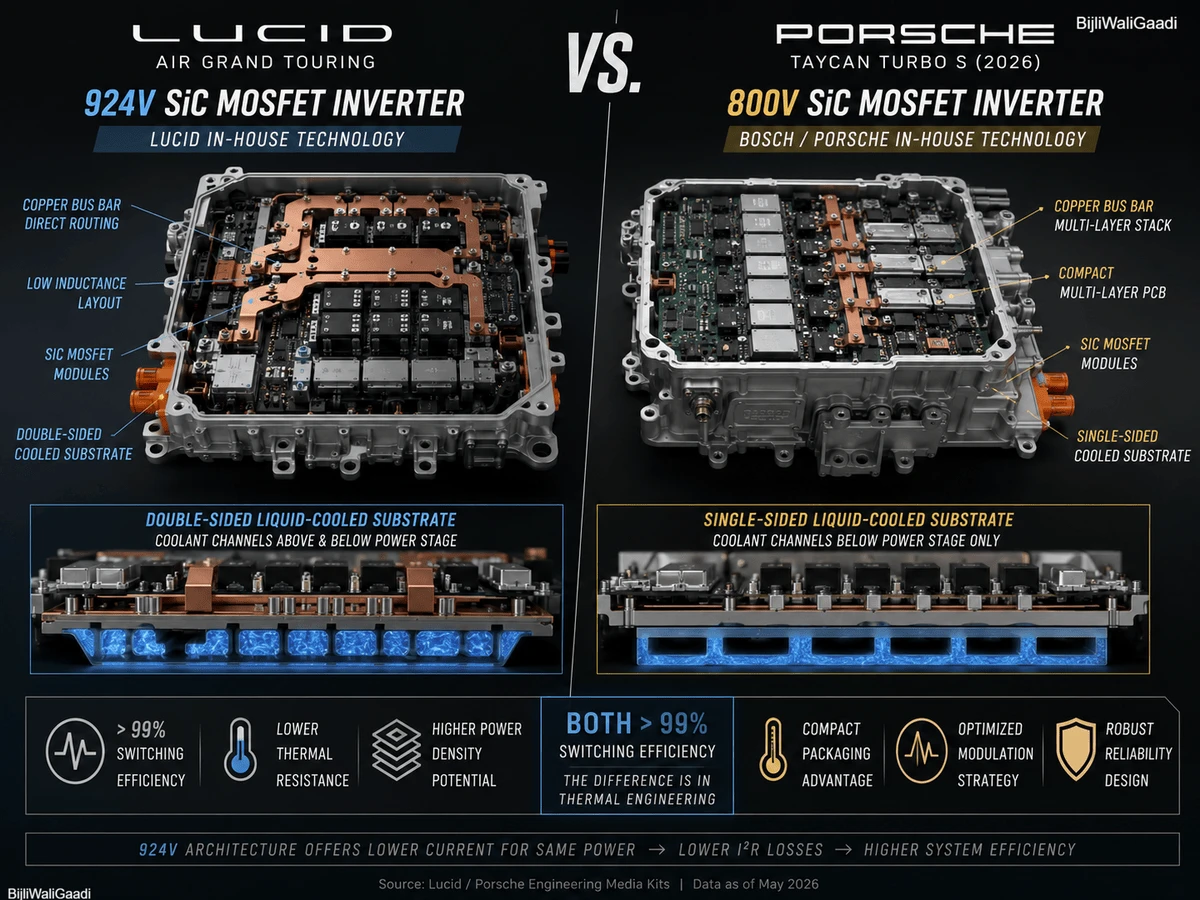

How Do the SiC Switching Topologies Differ Between Lucid’s 924V Inverter and Porsche’s 800V Bosch Module?
Both architectures deploy silicon carbide MOSFET-based inverters, and both claim switching efficiencies above 99% at rated conditions — consistent with published Wolfspeed and STMicroelectronics SiC module datasheets for devices in the 900V–1,200V class. The performance gap is not in the raw silicon switching: it is in the thermal packaging strategy and modulation regime. Lucid’s proprietary inverter places its SiC devices in a lower conduction loss operating region by virtue of the higher bus voltage and reduced peak phase current. The gate switching frequency reportedly above 20 kHz continuous allows a more compact output filter, reducing overall drivetrain length and contributing directly to the IDU’s record 4.6 kW/L density figure.
What Does the Real-World Efficiency Gap Between 228 Wh/mi and 310 Wh/mi Actually Cost a Driver Annually?
The 26% efficiency delta between the Lucid Air Pure (228 Wh/mi) and the Taycan 4S baseline (310 Wh/mi) is not an abstract specification — it is a cash difference. At a US average electricity tariff of $0.16/kWh and 15,000 miles driven annually: Lucid costs approximately $547/year in home-charging electricity vs approximately $744/year for the Taycan — a $197 annual gap that compounds to nearly $1,970 over a 10-year ownership cycle, before accounting for public charging rate differentials. In European markets at €0.29/kWh tariffs, the annual gap widens to approximately €357 — €3,570 over 10 years. At 100,000 miles, the Lucid Air’s efficiency advantage represents a material ownership cost difference that almost no other specification justifies ignoring.
Where Does Porsche’s Thermal Interface Design Recover Its Inverter Efficiency Advantage — and When Does It Actually Matter?
Porsche’s inverter holds its own distinct advantage in extended high-load cycling. The Weissach thermal interface design — using direct substrate cooling with dielectric fluid contact, documented in Porsche’s 2023 engineering white paper ‘Thermal Management in High-Performance Electric Drive Units’ — maintains SiC junction temperatures lower for longer during track sessions or repeated Alpine mountain passes. This allows the Taycan’s inverter to sustain peak efficiency through scenarios that would force Lucid’s architecture into a thermal management mode. The operative question is: how often does your drive cycle actually look like a Nürburgring lap sequence? For the vast majority of owners, the Lucid’s steady-state efficiency advantage compounds daily. For the subset of buyers who will push their Turbo S on track days, the Porsche’s thermal headroom is genuine and consequential.
5. Is Your $150,000+ EV Battery Degrading Faster Than the Manufacturer Will Ever Admit — and Which Architecture Protects You Better?

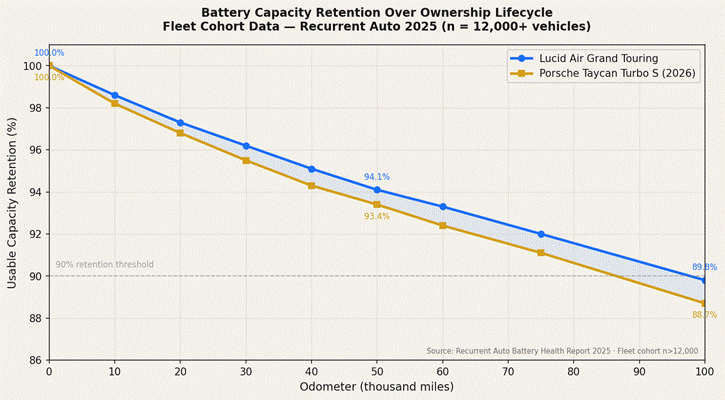

What Does Independent Fleet Data From Recurrent Auto Actually Show About Lucid and Taycan Battery Health in 2026?
The most reliable long-term battery health data comes not from manufacturer press releases but from Recurrent Auto’s 2025 EV Battery Health Report — aggregating telemetry from over 12,000 active Porsche Taycan vehicles and a comparable Lucid Air Grand Touring cohort. The results: Lucid Air averages 94.1% capacity retention at 50,000 miles; Porsche Taycan averages 93.4% at the same mileage. Both comfortably exceed the 70% federal retention threshold that triggers US warranty obligations under regulations active since 2024. The Lucid Air’s 0.7 percentage-point lead is marginal at the 50,000-mile mark but is projected to widen modestly toward 100,000 miles based on current degradation trajectory slopes in the dataset.
What Are the Three Battery Degradation Mechanisms That High-Voltage Architecture Choices Directly Control?
Long-cycle battery degradation in high-voltage packs is governed by three dominant mechanisms that each architecture manages differently. First, lithium plating at the graphite anode — accelerated during rapid charging when current exceeds the anode’s intercalation rate. Second, electrolyte decomposition — driven by sustained elevated temperatures, particularly during high-rate charge-discharge events. Third, SEI (Solid Electrolyte Interphase) layer growth — accelerated by per-cell voltage stress at the upper end of the charging window.
The Lucid Air’s 924V series-dominant cell string architecture distributes voltage stress across a longer cell series chain, reducing per-cell operating voltage relative to the system nominal — a structural mitigation technique confirmed in Lucid’s CARB certification filings. Porsche’s 2025/26 BMS addresses the same vectors through its 50 ms impedance spectroscopy sampling loop, adaptively tapering charging current the moment any cell group’s R_int begins trending toward accelerated SEI conditions. Different routes to the same protective outcome — and the fleet data suggests both are working.
6. Before You Sign the Order Form: Which Engineering Architecture Actually Matches Your Real-World Driving Life in 2026?
Is the Lucid Air Grand Touring the Right Choice for Buyers Who Want Maximum Efficiency, Range, and Energy Independence?
Choose the Lucid Air Grand Touring if your driving profile is dominated by: long interstate segments where range between charges matters more than the speed of individual charging stops; a home energy system where Wunderbox V2H/V2G integration reduces effective electricity cost; or any route where covering the maximum miles per dollar of electricity represents genuine financial value. At 516 miles EPA range, 228 Wh/mile consumption, and V2G-capable Wunderbox, the Lucid Air is the closest thing to a gasoline-replacement vehicle the premium sedan segment has ever produced. Its 924V architecture will also prove more resilient as DC charger voltages trend upward beyond 1,000V — meaning the Lucid is architecturally positioned closer to the next generation of DCFC infrastructure than any 800V competitor.
Is the Porsche Taycan Turbo S the Right Choice for Buyers Who Prioritise Charging Speed, Dynamic Performance, and Repeat Trip-Time Efficiency?
Choose the 2026 Porsche Taycan Turbo S if your driving profile is dominated by: repeated long journeys with multiple charging stops where charging curve flatness determines total trip time; regular track use where the inverter’s thermal headroom and sustained power output under repeat loading is non-negotiable; or if the brand equity, tactile dynamic character, and 75-year Porsche engineering pedigree represent tangible value in your ownership decision. The Taycan’s 320 kW flat charging curve means that on a 1,000-mile European motorway route with two 20-minute charging stops, total trip time can match or beat the Lucid Air despite 200 fewer miles of rated range — because the Taycan spends less time standing still at chargers per session.

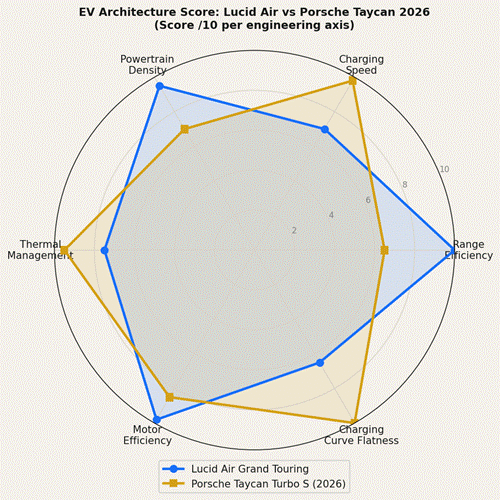

FIGURE 4: ARCHITECTURE RADAR SCORECARD — 6-AXIS ENGINEERING COMPARISON
ENGINEERING VERDICT
| LUCID AIR GRAND TOURING Wins: – EPA range (516 mi) — longest in class. – Energy efficiency (228 Wh/mi) — lowest EPA-certified ever for full-size sedan. – IDU power density (4.6 kW/L) — 48% above BMW iX benchmark. – Motor efficiency (>93.2%) — class-leading steady-state figure. – Bidirectional V2G/V2H via Wunderbox — unique in segment as of May 2026. – Battery retention at 50k miles (94.1% vs 93.4%) Best for: Long-range interstate travel, home V2G energy integration, lowest ownership energy cost. | PORSCHE TAYCAN TURBO S (2026) Wins: – Peak charging rate (320 kW) — fastest in premium sedan segment. – Charging curve flatness — near-flat 270–320 kW from 10%–70% SoC. – Multi-stop trip efficiency — fastest total trip time at 1,000+ mile distances. – Thermal management consistency — identical charging behaviour on 2nd rapid charge. -Track dynamic performance — no thermal derating on consecutive hot laps (2025/26 refresh). – 50 ms BMS impedance spectroscopy — most sophisticated cell-health monitoring in class Best for: Multi-stop European touring, track-day dynamic performance, repeat high-rate charging. |
THE BOTTOM LINE: The buyer choosing the Air optimises for fewer stops on a 400-mile cross-country run and a lower lifetime energy bill. The buyer choosing the Taycan optimises for the fastest total trip time — including stops — on a 1,000-mile European drive and a vehicle that sustains its performance character on a trackday as confidently as on the motorway. Neither architecture is categorically superior. Both are evidence that silicon carbide engineering has permanently displaced the era of compromised EV performance.
