EV Motor Cooling Systems: The Complete Technical Guide

Why Thermal Management Is the New Horsepower — And Why It Matters Most in India : EV Motor Cooling System

Why EV Motor Cooling is the ‘New Horsepower’ for Indian Climates

Picture this. You’re on the Delhi–Agra Expressway, it’s 44°C outside, your Tata Nexon EV is loaded with family and luggage, and you’ve been cruising at 110 km/h for forty minutes. Then you feel it — a subtle but unmistakable loss of punch when you try to overtake a truck. The car isn’t having any issue. The battery isn’t dead.

What’s happening is your motor is quietly throttling its own power to keep itself alive. Engineers call it thermal derating. Most owners call it frustrating.

That experience right there is why motor cooling is arguably the most important engineering conversation in Indian EVs today. It’s not glamorous. It doesn’t show up in showroom brochures. But it’s the invisible wall that separates a great EV from a merely average one.

Quick Summary: The EV Motor Cooling System

If you only have 60 seconds, here are the essential technical insights for the Indian EV market:

• Thermal Derating is the Enemy: In India’s 45°C+ summers, an EV’s “peak horsepower” is meaningless if the cooling system can’t maintain it. Poor cooling leads to derating (power loss) within 10–15 minutes of highway driving.

• The Tech Hierarchy: * Air-Cooled: Best for budget 2W (city use only). High risk of overheating on highways.
  • Liquid Jacket: The current standard for Indian electric cars (e.g., Tata Nexon EV). Reliable but has “thermal lag” during aggressive driving.
  • Direct Oil/Immersion: The gold standard (found in high-end platforms like BYD & Mahindra INGLO). Cools the motor windings directly for 25% better heat dissipation.

• The “India Factor”: Systems designed for Europe often fail in Central India. For Tier-2 and Tier-3 cities with high ambient temperatures, Liquid or Oil cooling is a non-negotiable for vehicle longevity.

• Maintenance Matters: Unlike petrol engines, EV motor cooling relies on specialized dielectric fluids or specific coolants. Check levels every 20,000 km to prevent permanent magnet demagnetisation.

• The Bottom Line: Don’t buy based on 0-100 km/h stats alone. Ask if the motor is Direct Oil Cooled if you plan on frequent long-distance highway travel.

EV Motor Heat Physics: Understanding Efficiency in 45°C Heat

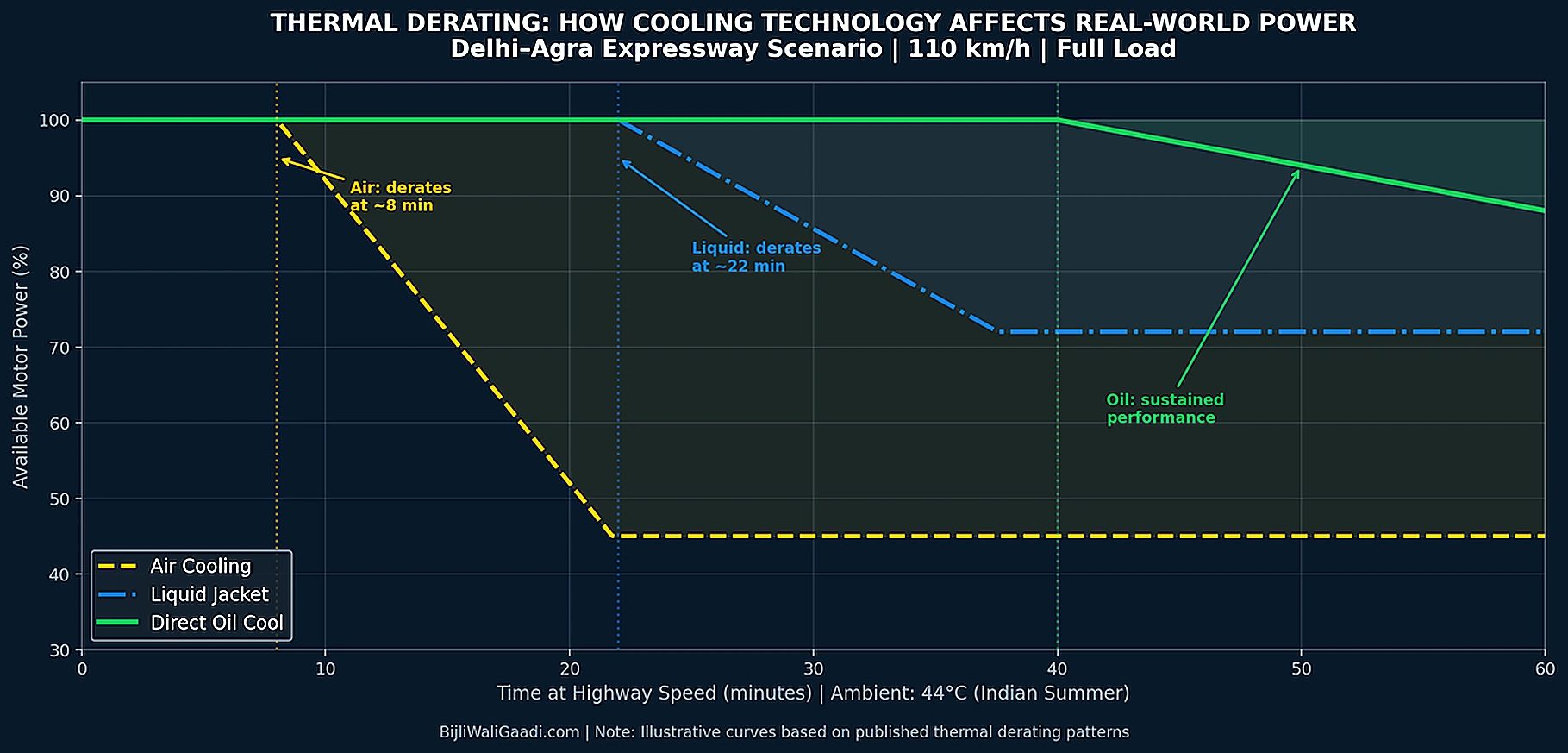

Figure 1: Thermal Derating Simulation — How cooling technology determines sustained power on the Delhi–Agra Expressway at 44°C. Air-cooled systems begin derating at just ~8 minutes.

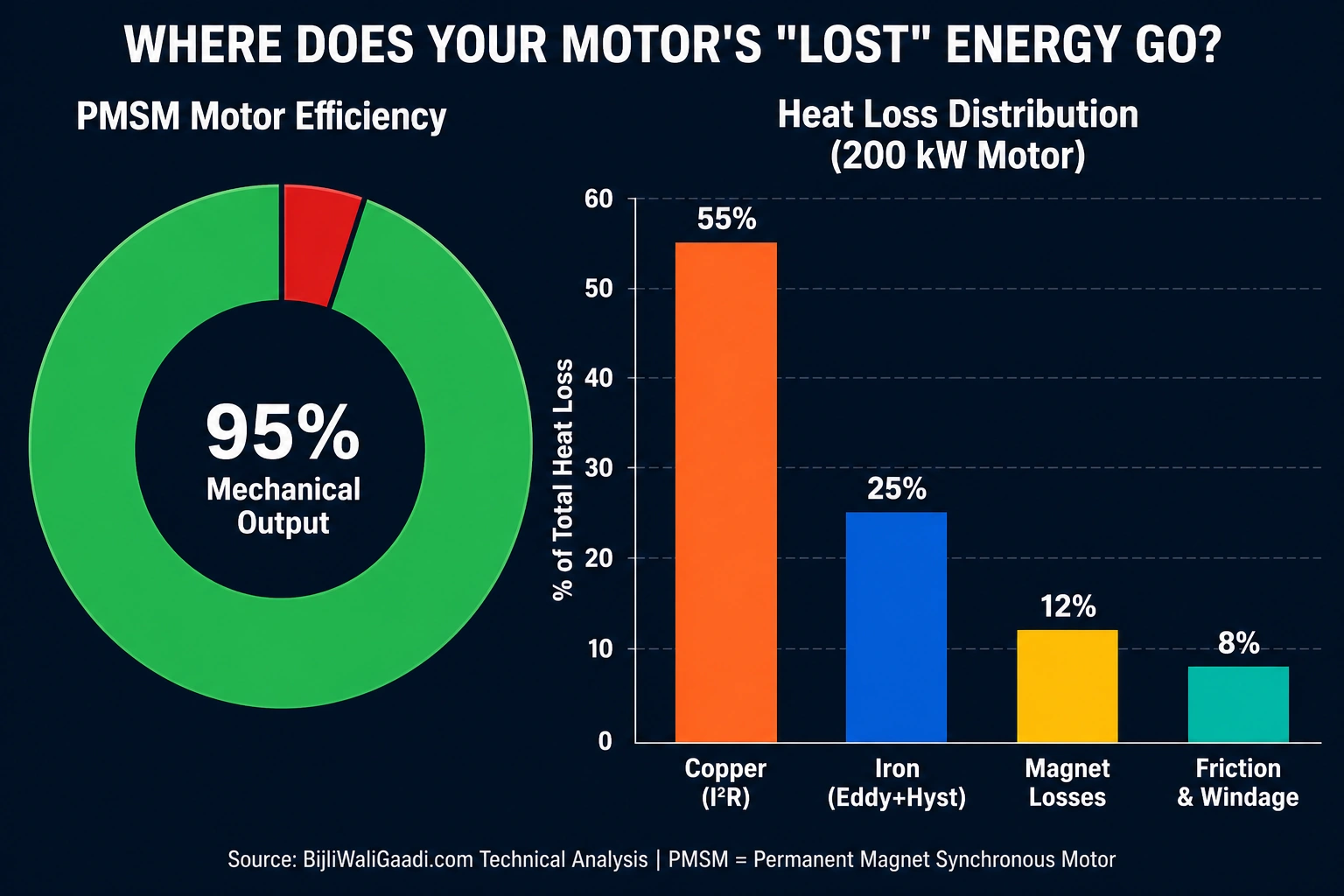

A modern permanent magnet synchronous motor (PMSM) converts roughly 93–97% of electrical energy into motion. But that remaining 3–7%? It doesn’t disappear. It becomes heat. In a 200 kW motor, even 3% waste is 6,000 watts of continuous heat generation — like running six 1,000-watt hair dryers inside your motor casing.

The Three Sources of Motor Heat

• Stator Copper Losses (I²R Losses): The stator is wound with copper coils. Heat is proportional to the square of current — double the current, quadruple the heat. This is why aggressive acceleration is so thermally brutal.

• Rotor & Permanent Magnet Losses: Neodymium magnets begin to demagnetise permanently above 150–180°C. Once that happens, peak torque is gone forever — no software update can fix demagnetised magnets.

• Eddy Current & Hysteresis Losses: These scale with switching frequency. SiC inverters — including those in true 800V systems like the Hyundai Ioniq 5 and Kia EV6 — switch at 50–100 kHz. Outstanding control precision, but they push iron losses higher, making stator cooling even more critical.

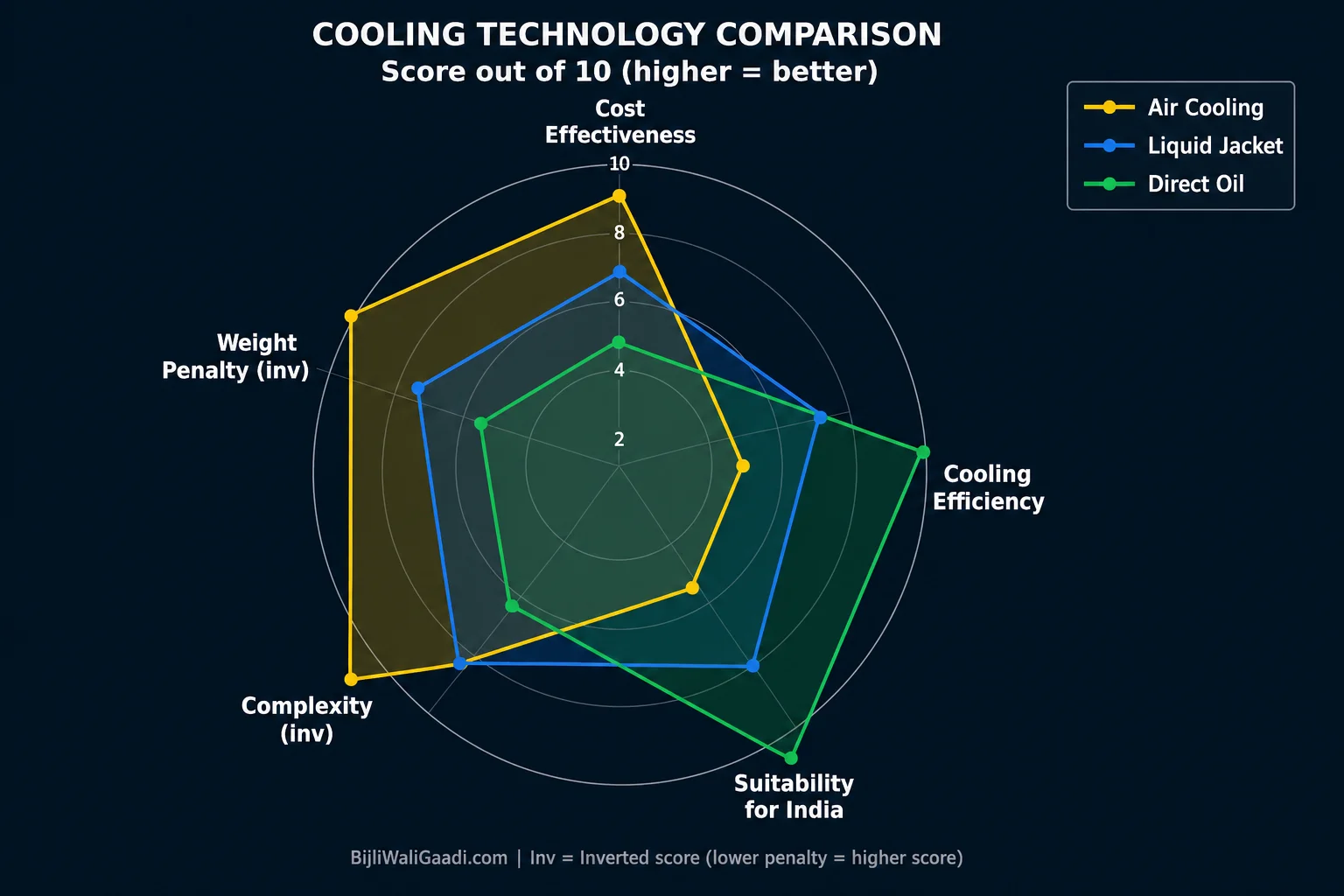

Comparing EV Motor Cooling Tech: Air-Cooled vs. Liquid-Cooled vs. Direct Oil

Not all EV motors are cooled the same way. The method your manufacturer chose tells you exactly what the car can sustain — not just in a showroom test, but on the Jaipur highway in June.

Air Cooling: Why it Works for Ola/Ather but Fails in Electric Cars

Most two-wheelers — your Ola S1 Pro, Ather 450X, TVS iQube — use forced air cooling. It’s light and cheap, and for a scooter doing 40–60 km/h on city roads, it’s adequate. But push it into 45°C Nagpur traffic with continuous stop-start, and you’ll notice range anxiety turning into performance anxiety.

Verdict: Air Cooling Fine for: scooters, e-rickshaws, cargo 3-wheelers under 50 kW. Not suitable for: cars, highway use, sustained loads above 50 kW. Indian example: Ola S1 Pro, Ather 450X, TVS iQube, Hero Vida V1.

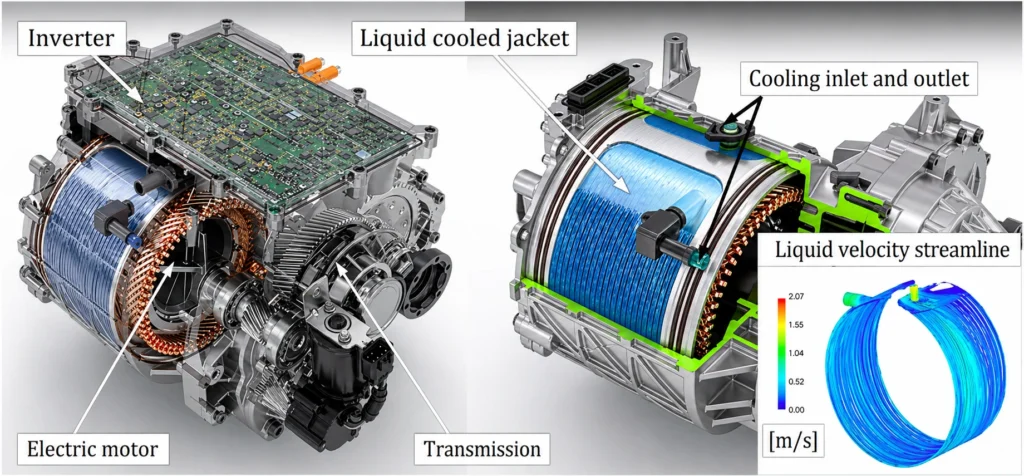

E-motor Liquid Cooling Jackets: The Indian Car Market Standard approach for Motor cooling

The vast majority of Indian EV cars use a water-glycol jacket around the stator housing. It works well for everyday use. But here’s what the spec sheet doesn’t show you: the coolant never actually touches the windings. Heat has to travel copper → insulation → stator iron → housing wall → coolant. Each step adds thermal resistance.

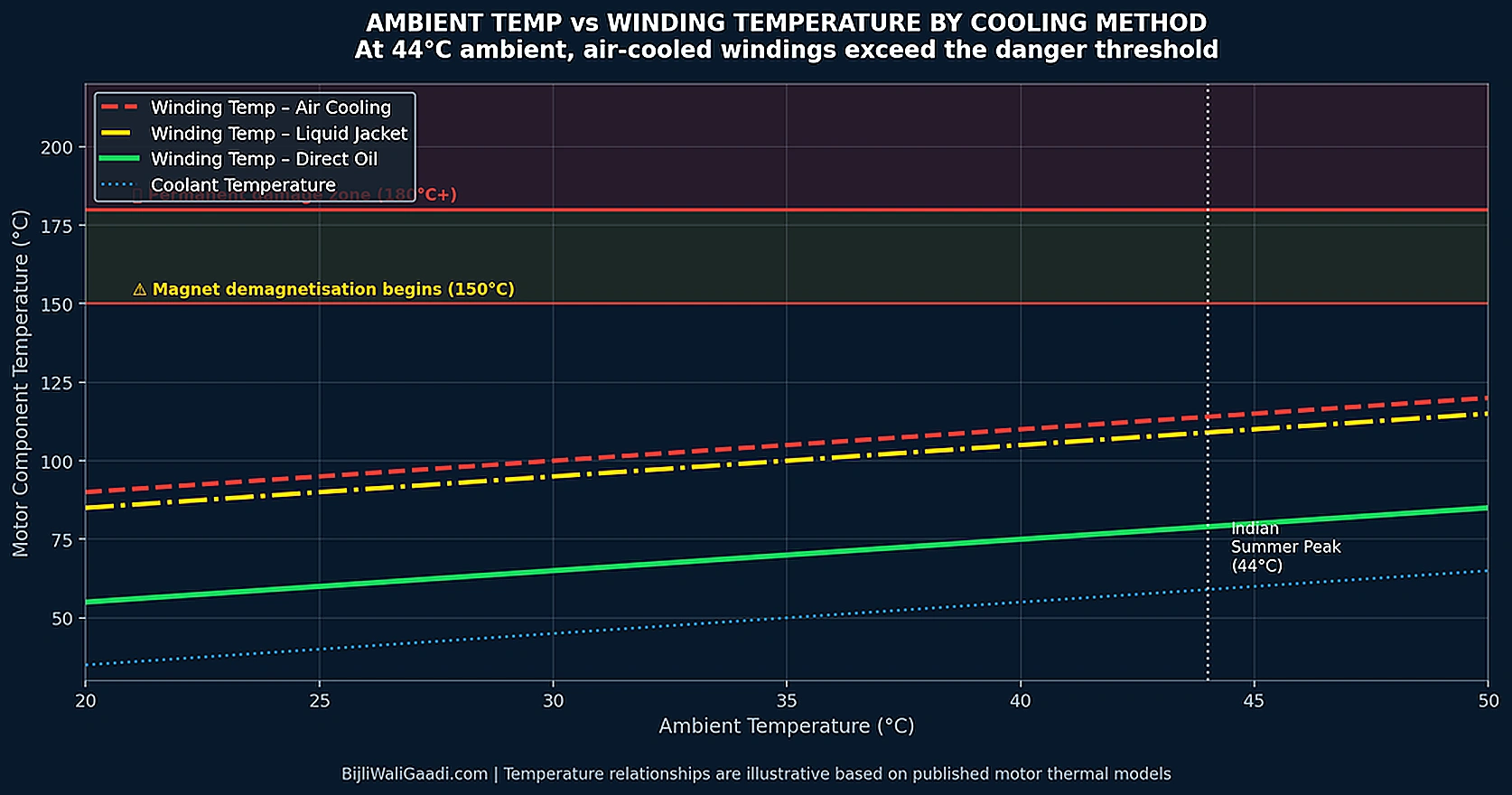

The actual winding temperature can be 40–60°C hotter than what the coolant sensor reads. You’re measuring the pond, not the fire.

Thermal Performance of Tata Nexon EV & MG ZS EV

Tata Nexon EV (Long Range) — most popular, good for Mumbai/Bangalore, adequate for Delhi.
Tata Punch EV — slightly smaller thermal headroom, great for city use.
Tata Tiago EV — entry-level, works well within its urban use case.
MG ZS EV — above-average thermal management for its segment.
BYD Atto 3 — Blade battery + liquid cooling, stronger thermal profile than most.
Mahindra XEV 9e / BE 6e — INGLO platform (400–465V) with 180kW fast charging & active ITMS — thermal score lifts significantly vs standard 400V.

Direct Oil Cooling: The Performance Unlock

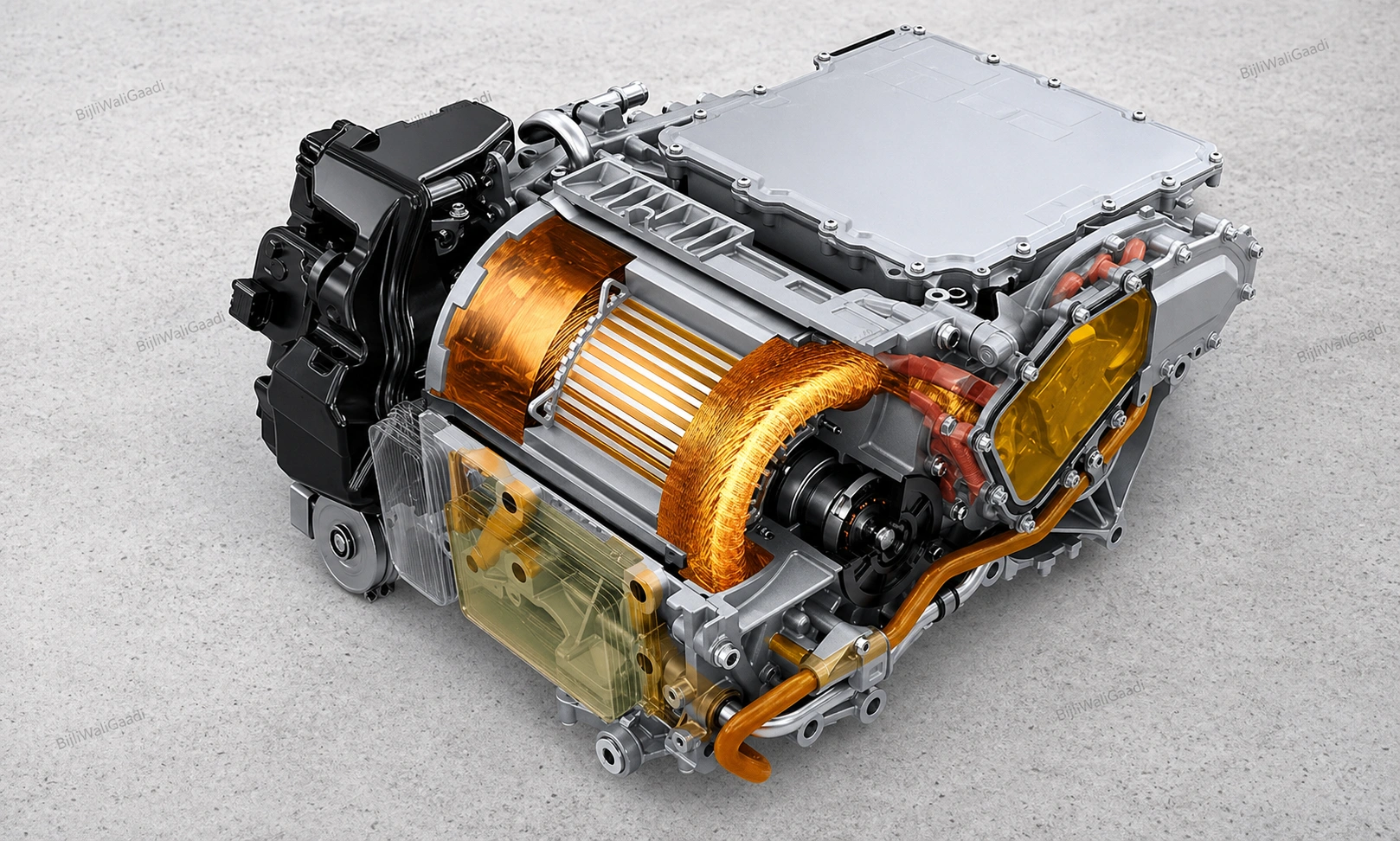

Direct oil cooling routes dielectric oil directly over stator windings and through the hollow rotor shaft. The oil can safely touch live copper — it’s a non-conductor. This eliminates every thermal boundary between heat source and coolant.

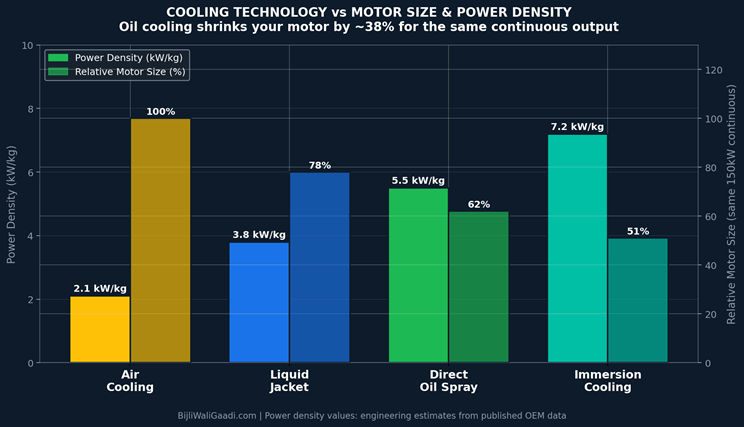

The payoff: motor size drops 15–20% for the same continuous power output. Less weight, better efficiency, more design freedom. And in India’s heat, it’s the difference between a car that derates at minute 18 and one that holds full power past minute 40.

Indian Context: Oil Cooling BYD Seal (available in India at ~₹41 lakh) — uses direct oil cooling, noticeably better thermal stamina. Hyundai Ioniq 5 / Kia EV6 — 800V + sophisticated thermal loop, best thermal scores in Indian market today. Porsche Taycan (premium segment) — benchmark for oil cooling in production EVs.

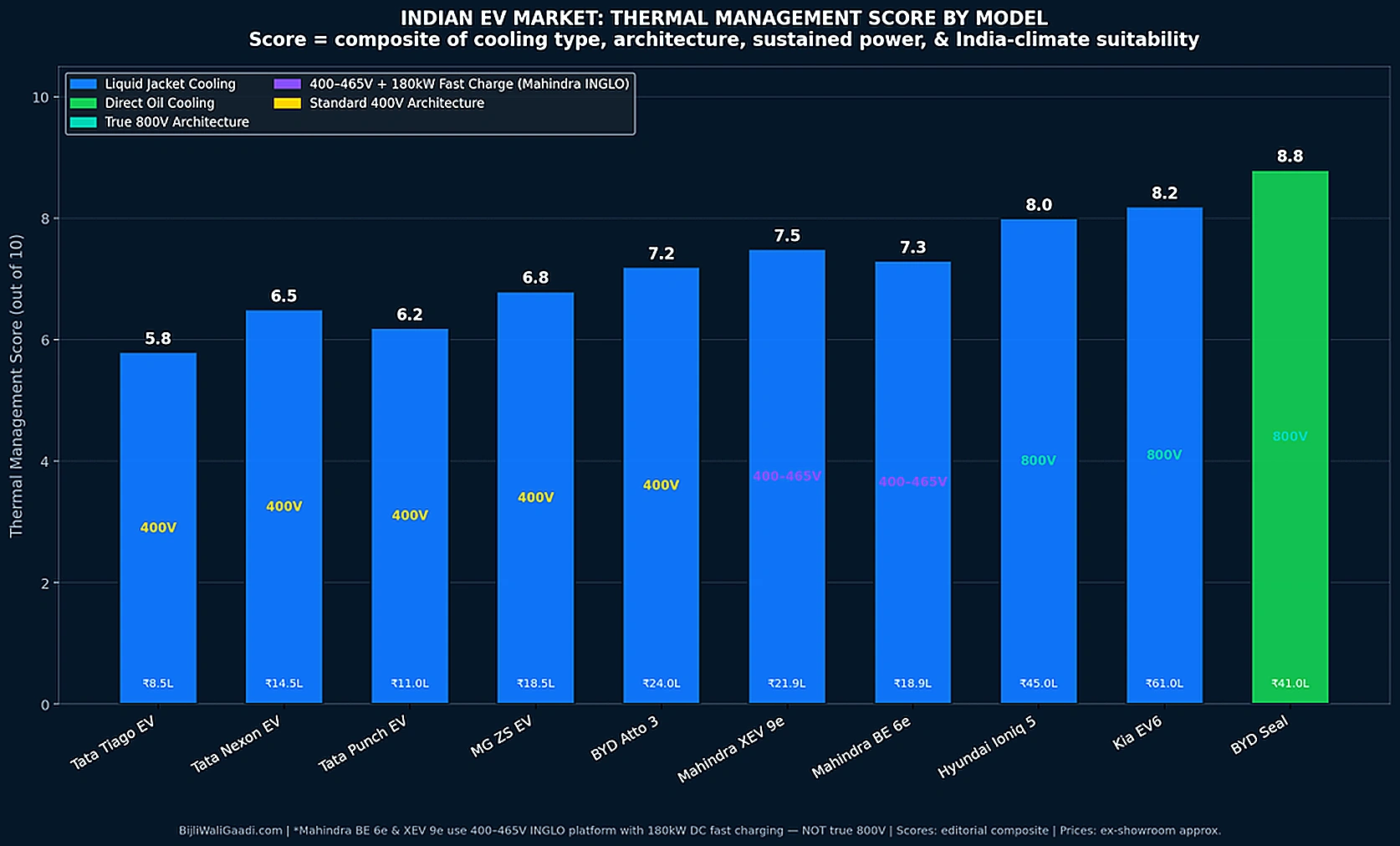

Thermal Management Rankings: Tata Nexon vs. Mahindra BE 6e vs. BYD Seal

We’ve pulled data on the ten most relevant EVs in the Indian market right now — from the ₹8.5 lakh Tata Tiago EV to the ₹61 lakh Kia EV6 — and scored them on a composite thermal management index. Here’s what the data shows.

Mahindra INGLO Platform Deep-Dive: Is it really 800V?

Here’s a fact the internet keeps getting wrong: the Mahindra BE 6e and XEV 9e are NOT 800V EVs. Their INGLO platform operates at 400V to 465V — but with critically important engineering upgrades. They support up to 180 kW DC fast charging, and their active ITMS is significantly more mature than standard 400V competitors. Calling them ‘800V’ would be flattering but technically inaccurate.

What gives them their thermal edge is Mahindra’s optimised inverter design, a dedicated motor cooling loop, and a more sophisticated ITMS — not a voltage step-up. Think of them as high-speed 400–465V architectures with 180kW charging support rather than scaled-down 800V systems. It’s a meaningfully different engineering approach, and it works well for Indian conditions.

Meanwhile, the BYD Seal stands alone in its segment: the only mass-market EV in India right now with direct oil cooling on the motor. At ₹41 lakh, it offers thermal management technology that was exclusive to ₹1 crore+ cars just three years ago.

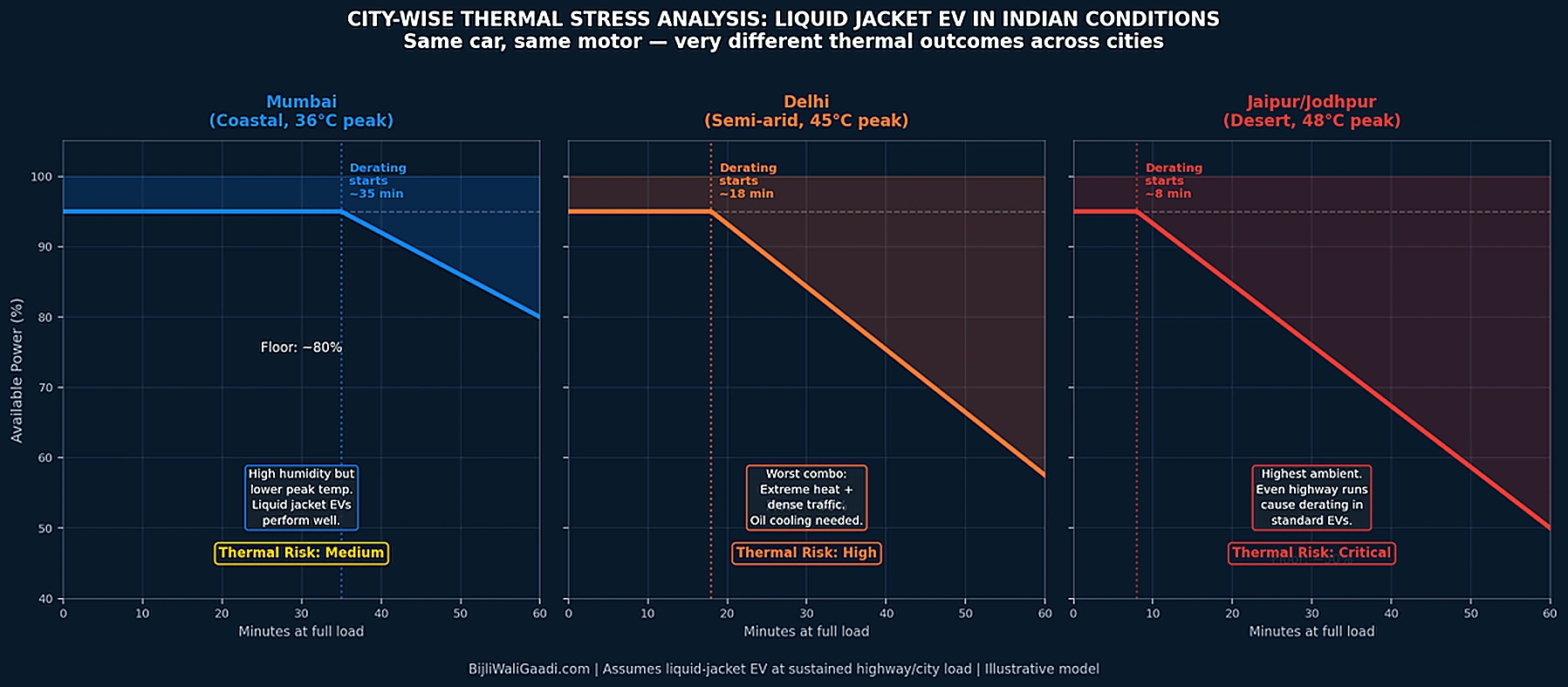

City-Wise Thermal Stress: Same Car, Different Outcomes

Here’s something most EV buyers don’t realise: the same liquid-jacket EV behaves very differently thermally in Mumbai versus Delhi versus Jodhpur. Ambient temperature and traffic density create completely different thermal loading — and your car’s cooling system has to manage all of it.

City-Wise Buying Advice Mumbai/Bangalore/Chennai: Standard liquid jacket EVs handle daily use well. Watch for sustained highway runs. Delhi/NCR: Look for EVs with active thermal management and at least a 7.0+ thermal score. Rajasthan/Vidarbha/ Nagpur /UP interior: Seriously consider the BYD Seal, Ioniq 5, or EV6 for sustained reliability. Hilly terrain (Himachal, Uttarakhand): Motor works harder on climbs — thermal management matters more than flat terrain.

The 2026 Frontier: Immersion Cooling & Integrated Thermal Management

Immersion Cooling

“Cooling of EV Motor is about Power Density (making a small motor act like a big one : solution by implementing Immersion Cooling”

Imagine the entire stator submerged in dielectric fluid. No jacket, no spray — full uniform contact between fluid and every wire, every lamination. Immersion-cooled motors sustain peak power dramatically longer because the fluid’s thermal mass absorbs transient spikes almost instantly. For an Indian highway in June, this is genuinely transformative.

Mahle and Dana are actively developing this for commercial EV platforms. On the two-wheeler side, some Ola Gen-3 prototypes are reportedly testing immersion-adjacent cooling architectures. We’re likely 2–3 years from seeing this in mainstream Indian passenger EVs.

Mahle and Dana are developing systems where dielectric oil is sprayed directly onto the motor’s copper windings or the rotor. Traditional “liquid jackets” only cool the outside of the motor; immersion-adjacent cooling cools the motor from the inside out. This is critical for heavy-duty commercial EVs and high-performance cars.

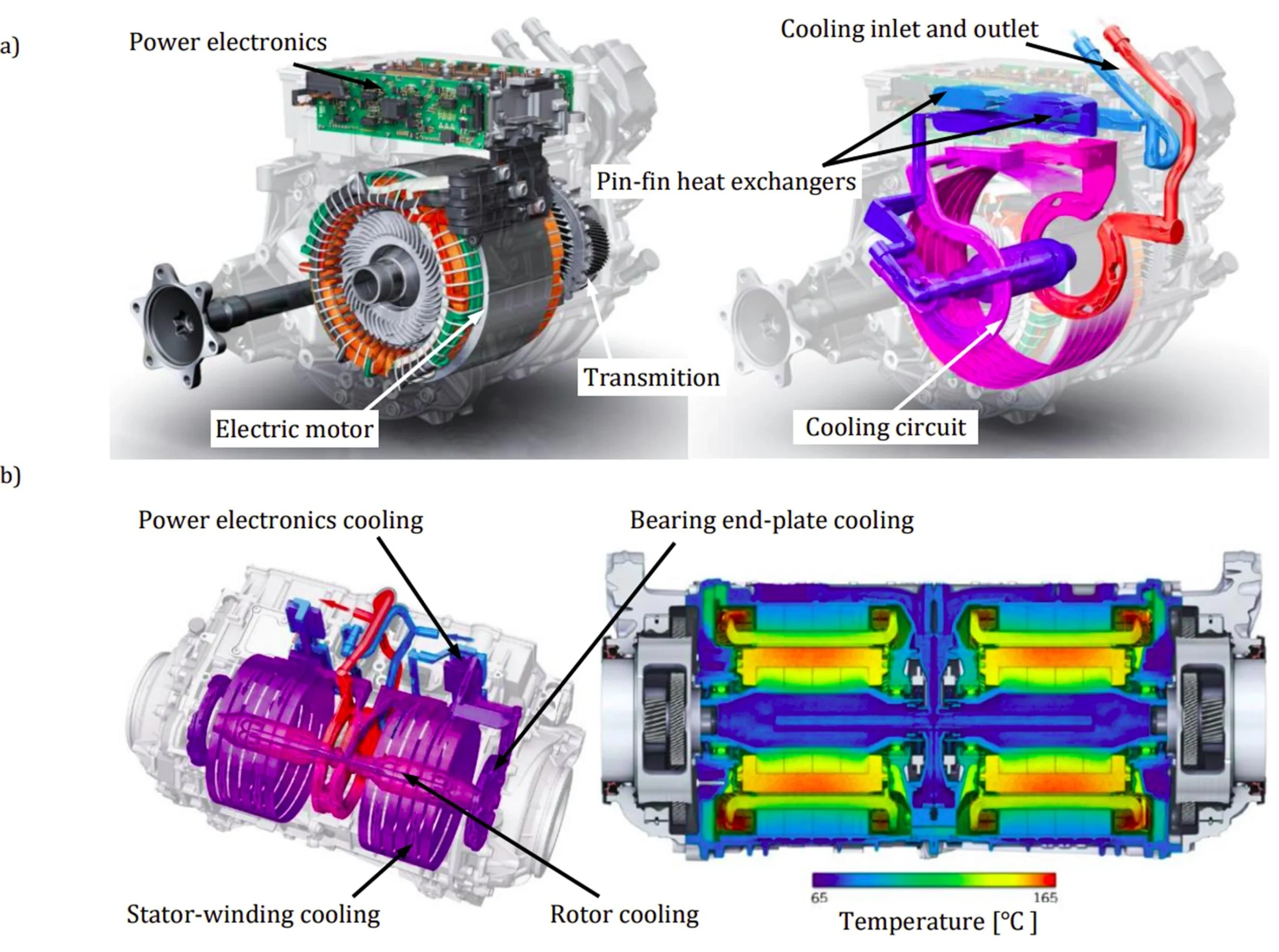

Integrated Thermal Management: The Intelligent Loop

The BYD Seal, Ioniq 5, and EV6 already demonstrate ITMS in India. In winter — yes, Delhi in January is cold enough to affect battery performance — motor waste heat is redirected to warm the battery through a heat exchanger loop. Your motor’s inefficiency becomes the battery’s heating system. That’s engineering elegance.

For the Ioniq 5, EV6, and true 800V SiC systems: the ITMS coordinates motor, inverter, battery, and cabin thermal circuits as a single organism — not four separate systems. The result is up to 15% better energy efficiency in mixed temperature conditions. The Mahindra twins achieve a similar coordination advantage through their advanced 400–465V ITMS, even without the 800V voltage rail.

ITMS in the Indian Market Today BYD Seal / BYD Atto 3: Heat pump + ITMS. Best efficiency across temperature range. Hyundai Ioniq 5 / Kia EV6: True 800V + most sophisticated thermal integration in India. Mahindra BE 6e / XEV 9e: Advanced ITMS on INGLO (400–465V) — best Indian-built thermal management. Tata lineup: Battery thermal management is strong; motor cooling ITMS less advanced at this price point.

EV Maintenance Guide: How to Protect Your Motor from Heat Damage

You can’t redesign your motor’s cooling architecture. But you can absolutely protect what’s already there. Here’s the practical stuff that actually matters.

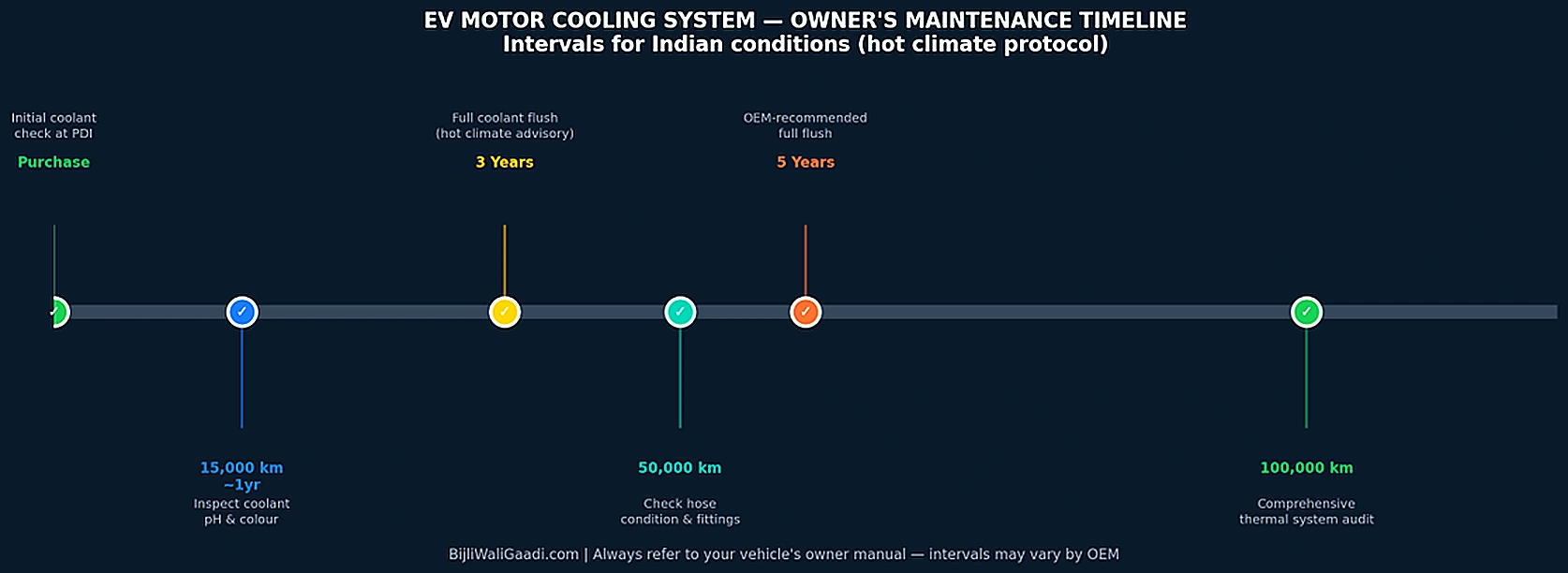

EV Motor Coolant Flush Intervals (India-Specific)

Most OEMs recommend a full motor coolant flush every 5 years or 1,00,000 km. In India’s heat, don’t wait that long for an inspection. Degraded glycol turns acidic and corrodes aluminium motor housings from the inside — a ₹80,000 problem that a ₹2,000 coolant check prevents.

Recognising Thermal Derating

Signs your car is derating: sudden torque softness on the highway, a ‘Reduced Power’ warning, the accelerator feeling ‘light.’ What to do:

• Pull over, stay in Ready mode — don’t switch off. The cooling pump runs in Ready/Park. Switching off kills it on some platforms.

• Wait 10–15 minutes — normal performance should return. If it doesn’t, have the cooling system inspected.

• Plan better for summer highway runs — pre-cool the car 10 minutes before departure. On many Tata and BYD models, this pre-conditions the motor loop too.

The Pre-Cool Trick for Indian Summers

Before a Jaipur highway run or a Mumbai–Pune expressway trip in May, switch on your climate 10 minutes before departure with the car in Ready mode. This circulates coolant through the chiller (where fitted), bringing motor and battery temperatures down before you even start. It’s free range recovery and thermal headroom — use it.

Quick Reference: Indian EV Thermal Management at a Glance

Model	Price (approx)	Arch.	Motor Cooling	Thermal Score	Best For
Tata Tiago EV	₹8–10L	400V	Liquid Jacket	5.8/10	Urban city only
Tata Punch EV	₹10–13L	400V	Liquid Jacket	6.2/10	City + short highway
Tata Nexon EV	₹14–16L	400V	Liquid Jacket	6.5/10	City + moderate highway
MG ZS EV	₹18–20L	400V	Liquid Jacket	6.8/10	City + highway (coastal)
BYD Atto 3	₹24–26L	400V	Liquid Jacket	7.2/10	All-round good performer
Mahindra BE 6e	₹19–22L	400–465V	Liquid Jacket	7.3/10	City + highway — INGLO ITMS advantage
Mahindra XEV 9e	₹22–25L	400–465V	Liquid Jacket	7.5/10	Best Indian-made thermal mgmt
BYD Seal	₹41–46L	800V	Direct Oil	8.8/10	Desert highways — top pick
Hyundai Ioniq 5	₹44–47L	800V	Liquid Jacket	8.0/10	Best ITMS in mainstream segment
Kia EV6	₹61–65L	800V	Liquid Jacket	8.2/10	Top thermal performer in India

Note: The listed prices are prices are “ex-showroom”.

The Bottom Line

Motor cooling isn’t a footnote in the EV spec sheet. It’s the system that determines whether your car’s advertised horsepower is a reality at kilometre 200 of a highway drive — or just a number that exists in a climate-controlled test cell.

The progression from air → liquid jacket → direct oil → immersion cooling represents one of the clearest engineering arcs in the entire EV industry. And for India specifically, the gap between ‘good enough for Europe’ and ‘purpose-built for 45°C’ is wide enough to drive a truck through.

The manufacturers who solve this — who build genuine thermal confidence for Indian conditions — are the ones who’ll own the next phase of EV growth. FADA’s own data hints at it: thermal-reliable EVs penetrate Tier-2 cities faster. Better cooling isn’t just engineering — it’s market strategy.

The next time a salesperson quotes you peak horsepower, you know exactly what question to ask next.
