Lithium Plating vs SEI Layer Growth: The Two Distinct Degradation Mechanisms That Determine Real-World EV Battery Longevity
Quick Definition: Lithium plating is the acute, largely irreversible deposition of metallic lithium on the anode surface. SEI layer growth is the gradual, self-limiting formation of a passivation film on that same surface. Both consume active lithium and reduce usable capacity — but they operate on completely different timescales, triggers, and risk profiles.
Demystifying EV Battery Capacity Fade
Why Capacity Fade Is Not One Problem — It Is Two
Battery capacity fade from fast charging is not a single phenomenon — it is the net output of competing electrochemical reactions happening simultaneously inside the cell. Most EV owners experience capacity loss as a linear decline on a dashboard percentage, but the underlying causes are chemically distinct and carry very different long-term consequences.
Conflating gradual passivation chemistry with acute plating damage leads to incorrect assumptions about vehicle health, warranty validity, and resale potential. Understanding which mechanism is at work determines whether a battery is aging predictably or racing toward an early end-of-life event. Stable wear can be modelled and compensated for; sudden failure caused by metallic accumulation cannot be reversed. For fleet operators, insurers, and second-hand buyers, identifying the dominant degradation pathway is now a core asset valuation skill.
Side-by-Side: SEI Growth vs. Lithium Plating at a Glance
| Property | SEI Layer Growth | Lithium Plating |
| Trigger | Normal cycling; first-charge electrolyte reduction | Anode oversaturation; low temperature; high C-rate |
| Rate | Slow and incremental over thousands of cycles | Acute — can occur in a single fast-charge session |
| Reversibility | Irreversible capacity loss, but stable and predictable | Practically irreversible under standard automotive operating conditions |
| Primary risk | Gradual capacity fade; rising internal resistance | Dead lithium formation; dendrite growth; thermal runaway |
| BMS detectability | Trackable via Coulombic efficiency trending | Detectable via anode potential estimation algorithms |
| Dominant chemistry sensitivity | Universal across LFP and NMC | Amplified in NMC at low temperatures; present in LFP under aggressive C-rates |

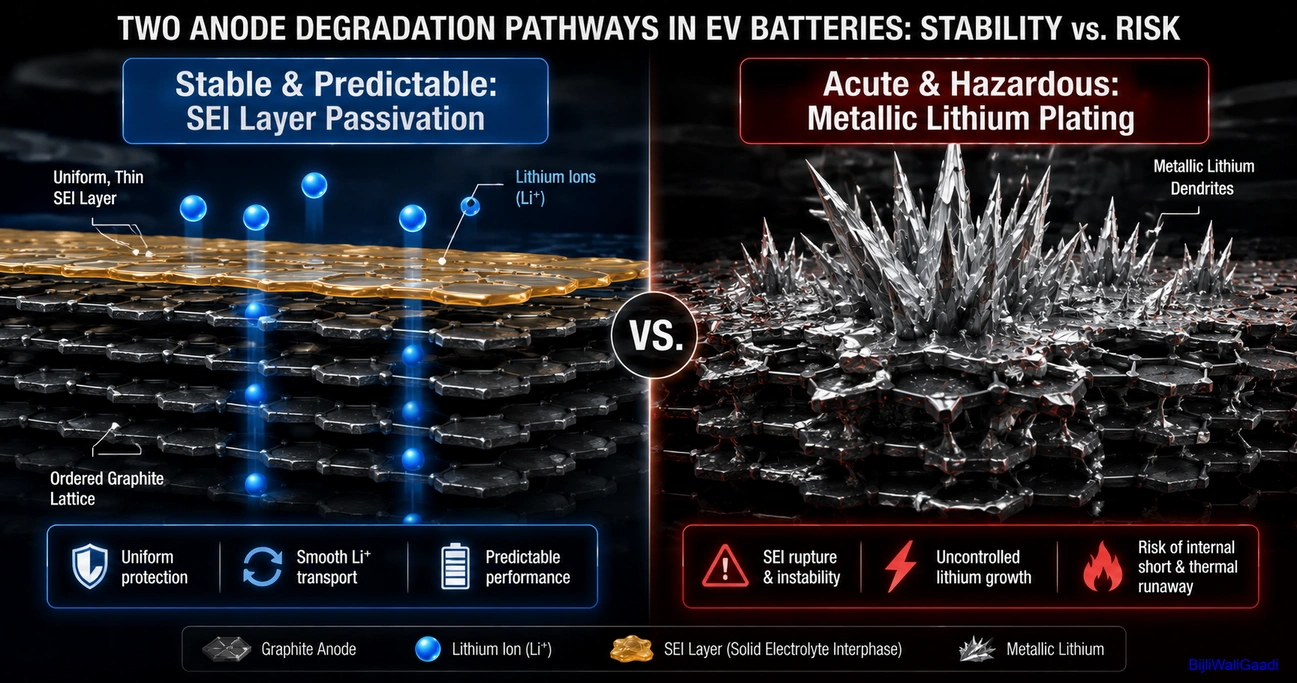

The Electrochemical Footprint of the SEI Layer
What is the SEI layer in a lithium-ion battery?

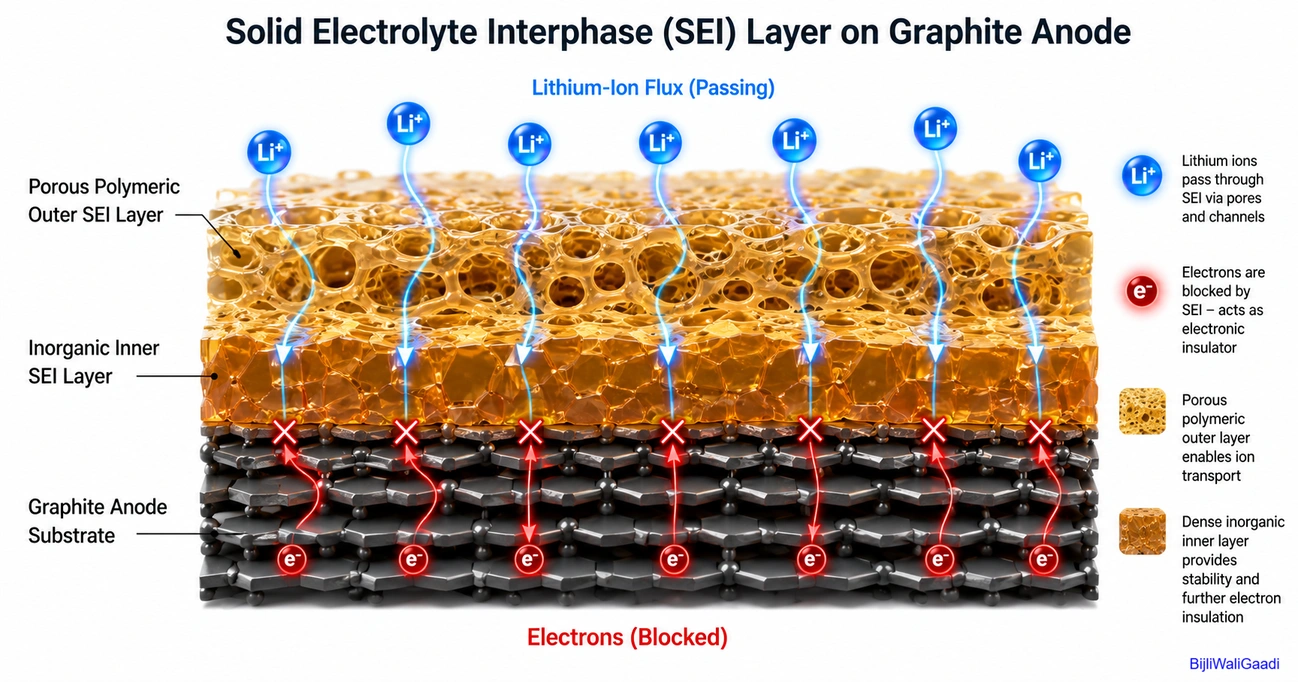

The Solid Electrolyte Interphase (SEI) is a nanometre-thin passivation film that forms spontaneously on the graphite anode surface during the first charge cycle, created by the reductive decomposition of organic electrolyte solvent molecules. SEI layer growth on lithium-ion graphite anodes begins during that very first charge cycle and never fully stops. The film co-deposits lithium salts, carbonates, and polymeric compounds in a porous, multi-layered structure that is ionically conductive but electronically insulating — a critical combination that allows lithium ions to pass through while blocking direct electron-driven electrolyte breakdown. This initial film consumes a fraction of the active lithium inventory permanently — a loss called irreversible capacity — which is why first-cycle Coulombic efficiency is always less than 100%.
Over thousands of subsequent cycles, this SEI layer thickens incrementally, increasing internal resistance and consuming additional lithium with each thermal excursion or deep discharge. Critically, a well-formed, stable SEI also acts as the cell’s primary protective barrier, preventing continuous solvent decomposition and enabling the long kinetic stability that mature LFP and NMC chemistries are known for. The result is a slow, predictable baseline of capacity fade that battery management systems can track, model, and partially compensate for across the vehicle’s service life.
The Destructive Nature of Lithium Plating
What causes lithium plating on a graphite anode?
Lithium plating EV battery degradation occurs when lithium-ion flux at the anode exceeds the graphite’s intercalation rate — forcing Li⁺ ions to reduce and deposit as metallic lithium directly on the electrode surface rather than inserting safely between graphene layers. Unlike controlled intercalation, this metallic deposition forms irregular, electronically isolated clusters on the anode surface. These clusters are collectively termed dead lithium: once encapsulated by fresh SEI material or physically disconnected from the electrode network, they are practically irreversible under standard automotive operating conditions and can no longer contribute to charge or discharge, instantly reducing usable capacity.
Each plating event also roughens the anode surface morphology, concentrating subsequent lithium-ion flux at surface protrusions and accelerating further plating in a self-reinforcing degradation loop. What begins as a few isolated plating events under a single aggressive charging session can compound into measurable, permanent capacity loss within dozens of cycles. Unlike SEI growth — which a competent BMS can partially mitigate through charge protocol optimisation — dead lithium anode formations represent an unrecoverable loss of electrochemical inventory.
The Role of Fast Charging and Ambient Conditions
What Is the Thermodynamic Difference Between SEI Formation and Lithium Plating?
Extreme operating conditions do not merely accelerate battery wear — they fundamentally shift the dominant degradation pathway from benign SEI growth to destructive lithium plating. High ambient temperatures accelerate electrolyte decomposition and SEI thickening, while low temperatures reduce ionic conductivity and dramatically increase the risk of lithium plating even at modest charging currents. Aggressive DC fast-charging profiles impose current densities at the anode interface that scale directly with charging power, and both LiFePO4 and NMC degradation mechanisms respond differently to these stresses due to their distinct lithiation kinetics.
The thermodynamic tipping point is determined by the local electrochemical potential at the anode surface — specifically, whether it drops below 0 V vs. Li/Li⁺, at which point metallic deposition becomes thermodynamically favoured over intercalation. Battery chemistry, state-of-charge window, temperature, and charge rate all modulate this interfacial potential, making their combined interaction the primary engineering design challenge for fast-charging architecture.
Thermal Stress and High Current Densities
How does fast charging cause lithium plating?

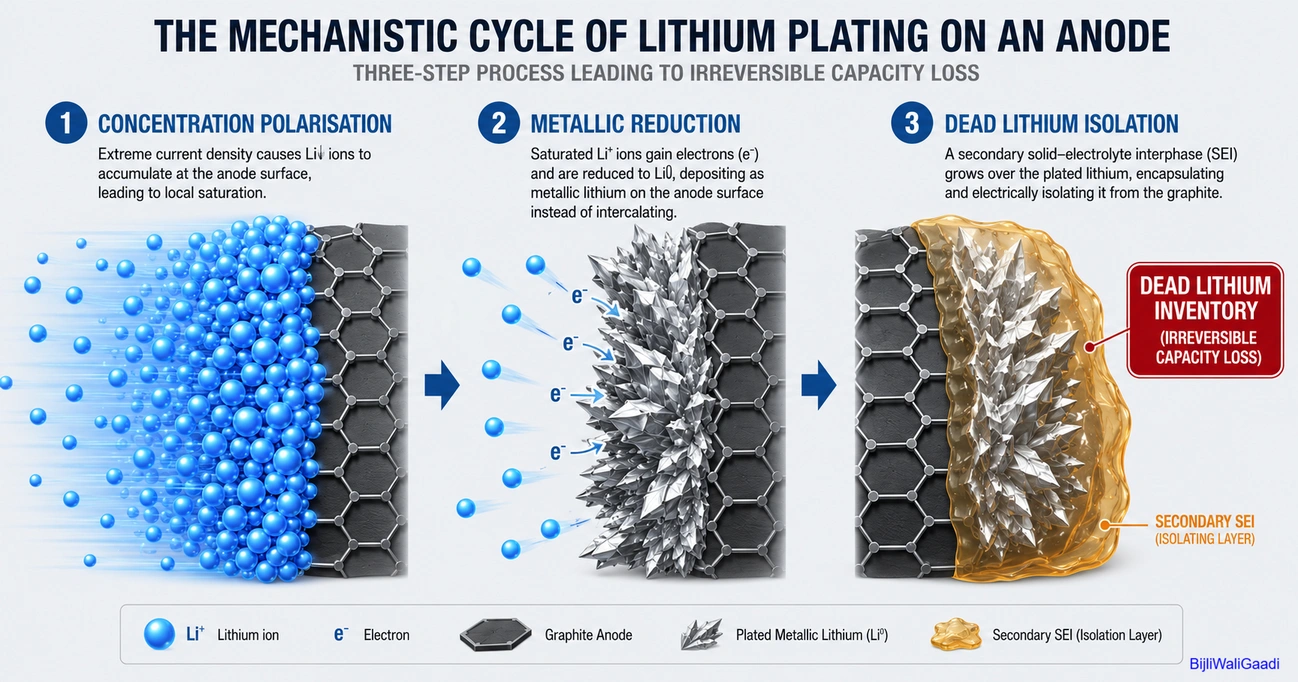

When charging currents exceed the anode’s lithium absorption rate, the graphite electrode becomes locally saturated — a condition electrochemists call concentration polarisation — which collapses the anode potential toward and below 0 V vs. Li/Li⁺, triggering metallic deposition. NMC chemistries, particularly high-nickel variants like NMC 811, tolerate higher current densities at elevated temperatures but are acutely vulnerable to plating below 15°C due to sluggish solid-state lithium diffusion within the graphite lattice. LiFePO4 cells, by contrast, exhibit a flatter voltage plateau and lower intrinsic energy density that limits plating risk under moderate fast-charge conditions, but their rate capability still degrades sharply near 0°C.
Thermal management systems — liquid-cooled battery packs with active thermal pre-conditioning — are engineered specifically to keep cell temperatures within the narrow window where ion transport kinetics remain fast enough to safely absorb high charging currents. Without active thermal regulation, even a single fast-charge session on a cold battery can initiate enough lithium plating to cause measurable, non-recoverable capacity loss. This is why OEM fast-charge curves deliberately taper current long before a cell reaches full state-of-charge, prioritising electrode longevity over raw charging speed.
Plating Risk by Chemistry and Temperature: A Practical Reference
| Condition | LFP Risk Level | NMC (High-Nickel) Risk Level | Primary Limiting Factor |
| 25°C, ≤1C charge rate | Very Low | Very Low | Normal SEI growth only |
| 25°C, 3C charge rate | Low | Moderate | Concentration polarisation onset |
| 0°C, 1C charge rate | Moderate | High | Reduced solid-state Li diffusion |
| –10°C, any fast charge | High | Very High | Near-zero ionic conductivity |
| 45°C, ≤1C charge rate | Low | Low–Moderate | Accelerated SEI growth; electrolyte stability |
| 45°C, 3C+ charge rate | Moderate | High | Electrolyte decomposition; cathode stress |
The Risk of Dendrite Growth and Thermal Runaway
How do dead lithium deposits become a safety hazard?

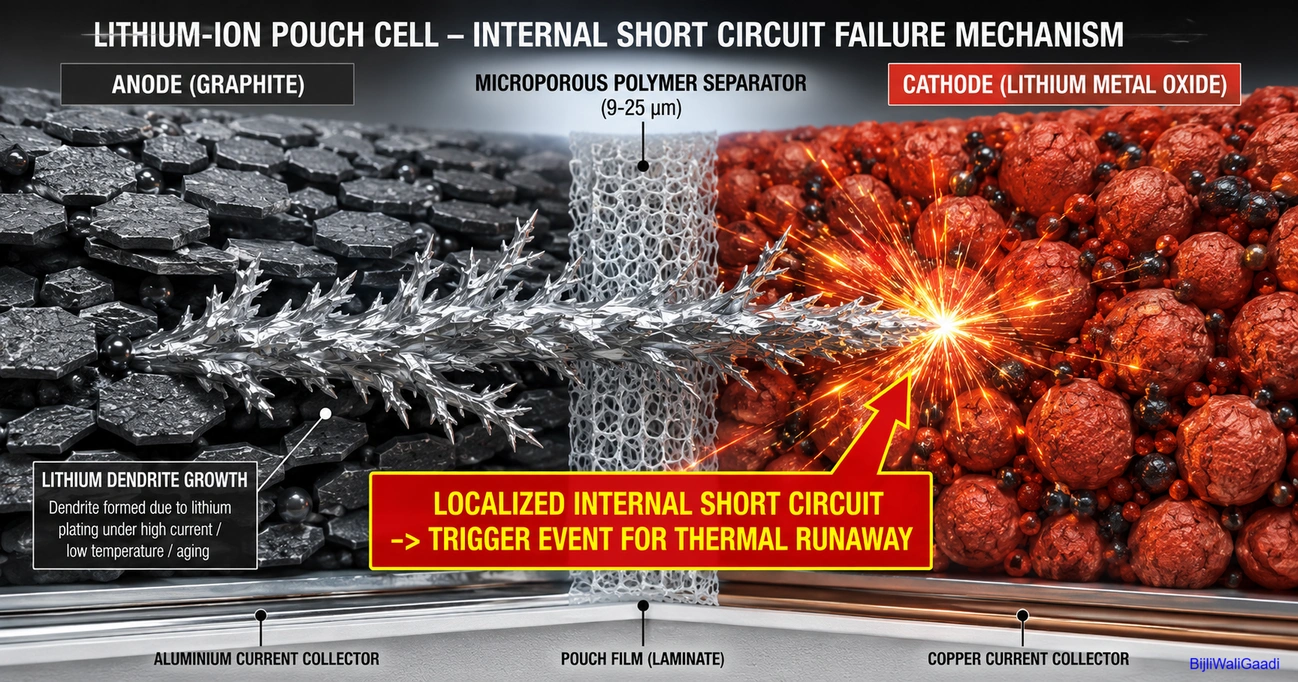

Dead lithium clusters do not remain static: under continued cycling, mechanical stresses and uneven current distribution cause these metallic deposits to elongate into needle-like, crystalline structures called dendrites. Dendrites grow perpendicular to the anode surface with each successive charge cycle, incrementally closing the microscopic gap between anode and cathode. When a dendrite reaches sufficient length, it can puncture the microporous polymer separator — a polyethylene or polypropylene film ranging from 9–25 µm thick in modern high-energy-density cells — creating a direct electronic bridge between the two electrodes. This internal short-circuit triggers instantaneous, uncontrolled self-discharge: the cell discharges through a near-zero-resistance path, generating intense localised heat in microseconds.
The resulting thermal spike can breach the cell’s thermal stability threshold, igniting electrolyte vapours and initiating a self-sustaining exothermic cascade known as thermal runaway. In a multi-cell pack architecture, a single cell undergoing thermal runaway can propagate heat to adjacent cells through a process called cell-to-cell thermal propagation, making dendrite management not just a battery chemistry concern but a vehicle-level safety engineering imperative.
Strategic Implications for BMS Engineering and Resale Value
How Smart BMS Architecture Translates Electrochemistry into Asset Value
The electrochemical distinction between SEI growth and lithium plating has direct, bankable consequences for how vehicles are engineered, insured, and traded. Modern battery management systems deploy real-time anode potential estimation algorithms — continuously processing voltage, current, and temperature data — to detect the onset of plating conditions and dynamically reduce charging power before the 0 V vs. Li/Li⁺ threshold is crossed. Predictive BMS firmware also tracks incremental capacity fade signatures that distinguish the slow, linear loss characteristic of SEI thickening from the sharper, episodic drops associated with repeated plating events, generating a granular degradation fingerprint that is increasingly demanded by used-EV marketplaces and insurers.
OEMs including BYD, CATL-supplied brands, and select Tata and Mahindra EV platforms in the Indian market are integrating cloud-connected BMS diagnostics that log cumulative plating risk scores across the vehicle’s full operational history. A battery with documented low plating exposure commands a measurably higher residual value and faces fewer warranty disputes, since degradation history can be attributed to driver behaviour rather than manufacturing defect. For fleet managers optimising total cost of ownership on Indian roads — where charging infrastructure quality and ambient temperatures vary dramatically — monitoring these two mechanisms is the clearest lever available to protect asset value over a five-to-eight-year fleet lifecycle.
BMS Capability Tiers: What Each Level Protects Against
| BMS Capability Tier | SEI Growth Management | Lithium Plating Detection | Dendrite Risk Mitigation | Resale Data Output |
| Tier 1 — Basic | Voltage/temperature cutoffs only | None | None | State of Charge (SoC) only |
| Tier 2 — Intermediate | Adaptive charge tapering; thermal pre-conditioning | Indirect (capacity fade trending) | Conservative C-rate limits | State of Health (SoH) estimate |
| Tier 3 — Advanced | Full electrochemical model (ECM/P2D) | Real-time anode potential estimation | Dynamic separator stress modelling | Granular degradation fingerprint; plating risk score |
| Tier 4 — Cloud-Connected | Over-the-air protocol updates | AI-driven plating event logging | Predictive thermal runaway alerts | Full lifecycle certificate for secondary market |
Key Takeaways for Engineers, Fleet Managers, and EV Buyers
- SEI growth is inevitable and manageable. Every lithium-ion cell forms an SEI layer — the goal of good BMS design is to minimise its growth rate and stabilise it early.
- Lithium plating is avoidable but irreversible. The conditions that trigger plating are well understood; avoiding them requires disciplined charging behaviour, robust thermal management, and advanced BMS logic.
- Temperature is the most underestimated variable. Fast-charging a cold battery is the single highest-risk routine behaviour available to an EV driver, regardless of chemistry.
- Degradation mechanism identity determines residual value. A battery that has experienced repeated plating events is fundamentally different — and worth measurably less — than one whose capacity loss is attributable solely to SEI growth, even if their SoH percentage reads identically on a dashboard.
- The next frontier is separator intelligence. Ultrathin separators (9–12 µm) in next-generation high-energy-density cells reduce weight and resistance but compress the safety margin against dendrite penetration, placing greater engineering burden on BMS-layer plating prevention.
