How Dauch’s 2-Speed e-Beam Axle Solves the Heavy-Duty Electric Pickup Towing Problem
Heavy-duty electric pickups have a torque problem no single-speed electric drive unit has solved — and Dauch Corporation says it now has. The Class 2b/3 segment, home to the RAM 2500/3500, Ford Super Duty, and Chevrolet Silverado HD, has resisted electrification not for lack of battery energy density, but because no propulsion architecture has successfully delivered launch torque, sustained towing power, and thermal durability simultaneously. Dauch Corporation — the newly unified driveline and metal-forming powerhouse formed from American Axle & Manufacturing (AAM) and Dowlais Group plc (including GKN Automotive and GKN Powder Metallurgy) — has published engineering data on a 2-speed e-Beam axle architecture that closes this gap. The findings, presented by Dan Ouwenga, Director of Product Management at Dauch, at the CTI Symposium.

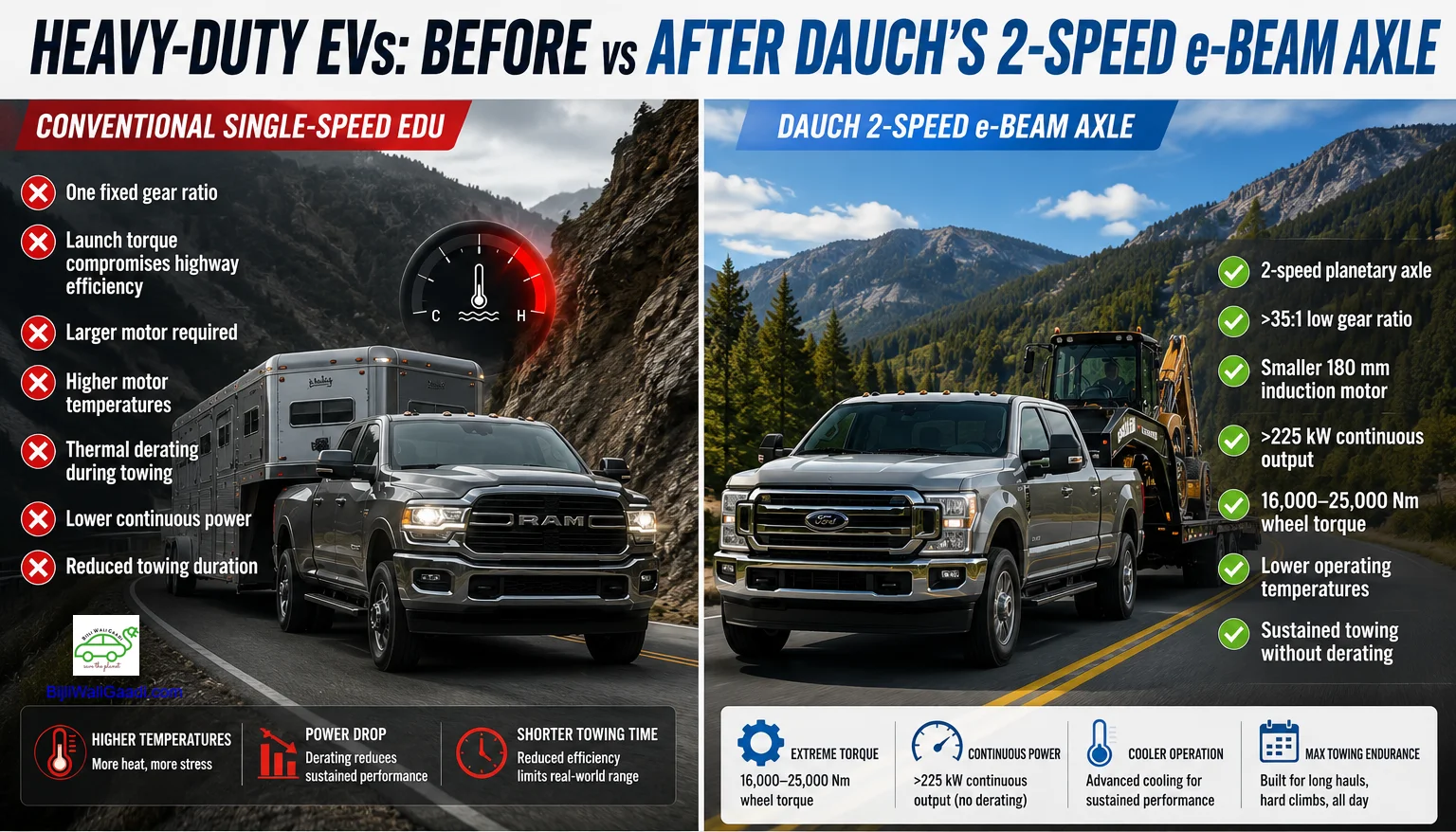

Why Do Single-Speed EDUs Fail Heavy-Duty EV Towing Configurations?
A single-speed electric drive unit cannot optimize for low-speed launch torque and high-speed cruise efficiency at once — the two requirements pull motor design in opposite directions. Bias the gearing toward aggressive launch torque and the motor spins at speeds and currents that generate excess heat under sustained highway towing. Bias it toward efficient cruise, and the truck loses the low-end multiplication needed for grade starts and trailer launches.
This is the core finding driving Dauch’s Class 3 BEV powertrain strategy: a single fixed ratio, however well-engineered, forces a compromise between duty cycles heavy-duty customers refuse to give up. Work-truck buyers expect a vehicle that can launch a fully loaded gooseneck trailer from a stop and hold that load at highway speed for hours without derating — an envelope first-generation EDUs, sized for passenger-vehicle duty cycles, were never built for.
The 2-Speed e-Beam Axle Architecture

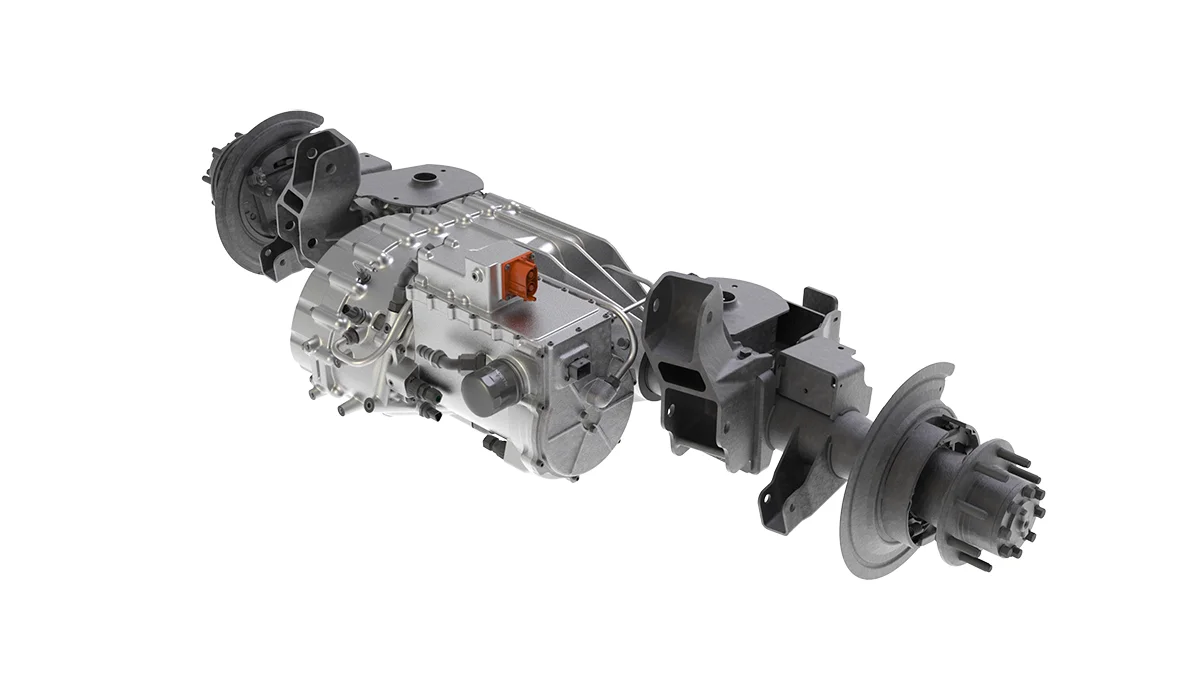

Dauch’s answer is a nested 2-speed planetary differential integrated directly into the axle housing — the HD 2-speed electric rear e-Beam. Rather than bolting a two-speed gearbox ahead of the axle, the planetary set lives inside the beam itself, which keeps torque multiplication local to the axle and avoids loading up the upstream driveshaft and motor-side components.
Key specifications:
- Low range: 16,000–25,000 Nm of wheel torque at a gear ratio exceeding 35:1 — engineered to exceed the most demanding towing and gradeability cycles in the segment.
- High range: Seamless transition to a ratio optimized for motor efficiency at highway speed, keeping the induction motor in its peak-efficiency band during cruise.
- Shift quality: OEM engineers present during vehicle demonstrations described the shift as smooth and comparable to a conventional automatic transmission — a critical requirement for driver acceptance in a work-truck application.
| Attribute | Conventional 1-Speed EDU | Dauch 2-Speed e-Beam Axle |
| Low-range wheel torque | Fixed compromise ratio | 16,000–25,000 Nm |
| Gear ratio (low range) | Not applicable | >35:1 |
| Motor sizing for launch torque | Requires larger, heavier motor | Smaller 180 mm motor sufficient |
| Highway efficiency | Compromised by launch-torque gearing | Independent high-range ratio, motor at peak efficiency |
| Continuous power (sustained) | Thermally derates under towing load | >225 kW sustained, no derating |
| Shift behavior | N/A (single ratio) | Seamless, automatic-transmission-like |
Motor Innovation: Downsizing Without Sacrificing Output
Because the 2-speed architecture handles torque multiplication at the axle, the motor no longer needs to be oversized to cover the low end of the torque curve. Dauch shrank the high-speed induction motor from a typical 230–260 mm diameter down to 180 mm — a meaningful packaging and mass reduction where axle-adjacent space is already tight.
Critically, this is an induction motor design, not a permanent-magnet unit, which means Dauch has engineered rare-earth-free electric motors into this platform entirely. That eliminates two persistent industry pain points: the geopolitical and pricing exposure of rare-earth magnet supply chains, and the demagnetization risk permanent-magnet motors face under sustained high-temperature, high-load operation — precisely the operating condition a loaded tow rig subjects a motor to.
The 2-speed gearset is what makes an induction motor viable in this role at all. Induction motors carry an inherent efficiency penalty at low shaft speed: because rotor torque comes from induced current rather than a permanent magnetic field, low-speed, high-torque operation drives up rotor conduction (I²R) losses and slip. A >35:1 low-range ratio sidesteps that penalty at the source — the axle handles torque multiplication mechanically, letting the motor spin up quickly into its higher-speed, higher-efficiency band rather than lugging at low RPM to produce launch torque directly. The motor effectively never has to sustain operation in its worst efficiency region, which matters as much to the thermal picture as the cooling hardware itself.
How Does the Stator Cooling System Achieve 225 kW Continuous Output?
Dauch’s flooded stator design routes oil directly across the copper windings using an integrated air gap sleeve, roughly doubling continuous current density versus conventional jacket-cooled stators. That thermal headroom is what allows the 180 mm motor to sustain output that would ordinarily require a physically larger unit.
The distinction Dauch emphasizes is “continuous,” not peak. More than 225 kW of continuous rated power means the e-Beam axle can hold that output through a full Davis Dam or Baker Grade simulation — the industry’s standard punishing-grade, sustained-load towing benchmarks — without thermal derating. That is the number that actually matters to a heavy-duty buyer: peak power sells a spec sheet, but continuous power under grade load is what gets a loaded trailer up a mountain pass without the truck backing off torque to protect itself.
Silicon Carbide Inverter Cooling: The Other Half of the Thermal Equation
A motor that can sustain 225+ kW is only as good as the inverter feeding it. Dauch paired the e-Beam axle with a Silicon Carbide (SiC) inverter using a folded fin heat sink design that enables direct oil cooling of the switching devices, rather than the isolated backplate cooling used in conventional modules.
Why this matters technically: direct oil contact with a folded fin structure dramatically increases coolant-contact surface area compared to a backplate that conducts heat through an intermediate isolation layer. That reduces SiC junction temperatures under sustained load and lets the inverter run at higher continuous current without derating. Dauch’s benchmarking shows more than a 50% continuous power improvement over conventional isolated-backplate SiC modules — the same power output from less silicon, lowering device cost while widening thermal margin.
Notably, both the flooded stator and the folded-fin inverter rely on the same medium — dielectric cooling oil — in direct contact with the heat-generating surface. That shared approach is what makes a single-fluid cooling architecture across motor and inverter a coherent design path: one oil loop and one pump servicing both the copper windings and the SiC switching devices, rather than two separate coolant circuits with their own plumbing and heat exchangers. On a Class 2b/3 platform where axle-adjacent packaging is already tight, consolidating two cooling circuits into one is a systems-integration win layered on top of the thermal performance gains themselves.
Real-World Validation: SAE J2807 Towing at 26,000 lbs GCWR
Simulation data is only as credible as the physical validation behind it. Dauch built a prototype 2-speed HD e-Beam into a RAM Heavy-Duty BEV conversion vehicle to prove it out.
- Cold-weather development testing was conducted at a Brimley, Michigan facility.
- Hot-weather SAE J2807 trailer tow validation was conducted at the General Motors Yuma Desert Proving Ground, in ambient temperatures exceeding 100°F.
- The vehicle completed J2807 grade requirements at a 26,000 lbs gross combined weight rating (GCWR) in two-wheel-drive configuration — a threshold Dauch states no comparable production-ready electric rear axle has yet matched.
- Davis Dam thermal simulation at 45 mph in low range showed a 14–18% reduction in EDU operating temperatures compared to high-range operation under identical load.
That thermal margin is the practical payoff of the whole architecture: lower operating temperature in low range extends continuous towing duration and gives calibration engineers more headroom before power derating kicks in. Dauch also states the technology sits behind 13 issued and pending patents, with third-party freedom-to-operate searches identifying no blocking patents — a relevant data point for any OEM evaluating supply risk on a licensed architecture.
The Corporate Context: Why This Is an AAM–GKN Story, Not Just an Axle Story
This engineering package doesn’t exist in isolation from the corporate restructuring behind it. American Axle & Manufacturing formally changed its name to Dauch Corporation on January 26, 2026, and completed its acquisition of Dowlais Group plc — parent of GKN Automotive and GKN Powder Metallurgy — on February 3, 2026, beginning trading on the NYSE under ticker “DCH.” The rebrand, chosen partly to move past a name tied to a single home market, unites AAM’s axle and driveline manufacturing scale with GKN Automotive’s e-drive engineering pedigree.
The 2-speed e-Beam axle is best read as the first significant public engineering demonstration of that combination. AAM brought heavy-duty axle manufacturing and beam-axle packaging expertise; GKN Automotive contributed decades of eDrive unit and electric motor engineering. A nested planetary differential integrated into a beam axle, driven by a rare-earth-free induction motor with directly cooled SiC power electronics, is exactly the cross-portfolio product that would have required two separate supplier relationships before the merger — and now comes from one Tier 1.
What This Means for the Segment
Dauch’s own framing is notable: propulsion readiness, the company argues, can now be crossed off the list of barriers to heavy-duty electrification. What remains — energy storage cost and packaging, charging and depot infrastructure, OEM program timing — are commercial and infrastructure questions, not propulsion engineering ones. On the evidence presented, at least for Class 2b/3 towing, torque and thermal derating are no longer the excuse.
Source: Dan Ouwenga, “No-Compromise Propulsion for the Heavy-Duty Electric Pickup,” CTI Symposium, June 2026; Dauch Corporation and American Axle & Manufacturing SEC filings, January–February 2026.
–
