Geely 16-in-1 Intelligent E-Drive: The 75 kg EV Powertrain That Shocked the Auto Industry

Reading Time: 12 minutes

Every EV manufacturer is fighting the same silent war — cramming a motor, an inverter, a gearbox, a charger and half a dozen control units into the smallest, lightest, cheapest box possible. Every gram saved is range gained; every connector removed is one less point of failure.

This is why “X-in-1” has become the most competitive number in the EV industry. BYD started the race with its 8-in-1 powertrain; MG and other SAIC-backed brands followed; Geely itself moved from 3-in-1 to 11-in-1 in a few years.

Now Geely has gone further. The Geely 16-in-1 Intelligent E-Drive folds sixteen functions into a single 75 kg unit, runs on an 800V platform, hits 93.8% CLTC efficiency, and just picked up two Guinness World Records in the same week — a genuine engineering milestone that signals where EVs Indians will buy in the next five years are headed.

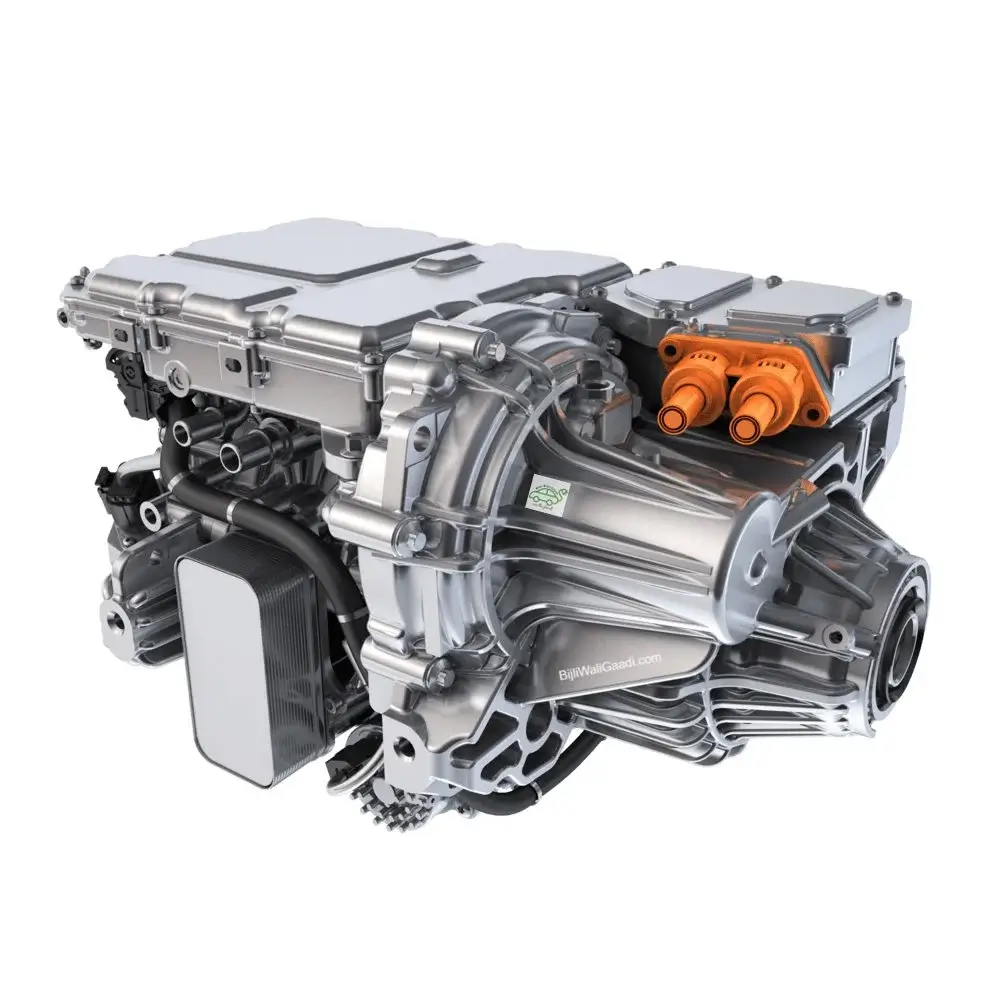

What Is Geely’s New 16-in-1 Intelligent E-Drive?

Think of a modern EV powertrain as a small city of separate departments — motor, cooling, charging, control — each in its own building, talking to each other over long-distance wiring. The 16-in-1 E-Drive knocks down those buildings and puts every department under one roof.

Officially confirmed by Geely:

• Platform: 800V high-voltage platform, debuting on the Geely TT sedan
• Weight: Complete Electric Drive Unit (EDU) at just 75 kg
• Efficiency: 93.8% CLTC comprehensive efficiency
• Power: Dual-motor AWD, combined 425 kW output
• Performance: 0–100 km/h in 3.8 seconds
• Cooling: 54-channel directional cooling, cutting peak motor temperature by up to 15°C
• Durability target: 5-million-km validation at component, drive-unit and full-vehicle level
• Intelligence: AI-assisted torque management for faster, more precise torque delivery
• Development partner: InfiMotion, Geely Auto Group’s in-house electric-drive ecosystem partner

What is a 16-in-1 electric drive? A single integrated Electric Drive Unit combining sixteen EV powertrain functions — motor, inverter, gearbox, onboard charger, DC-DC converter, cooling and control electronics — into one housing. Geely’s version weighs 75 kg, runs on 800V, and hits 93.8% CLTC efficiency on the Geely TT.

Did You Know? An 800V platform doesn’t just mean faster charging — it also lets the same power move through thinner, lighter copper cabling, since higher voltage needs less current for the same energy.

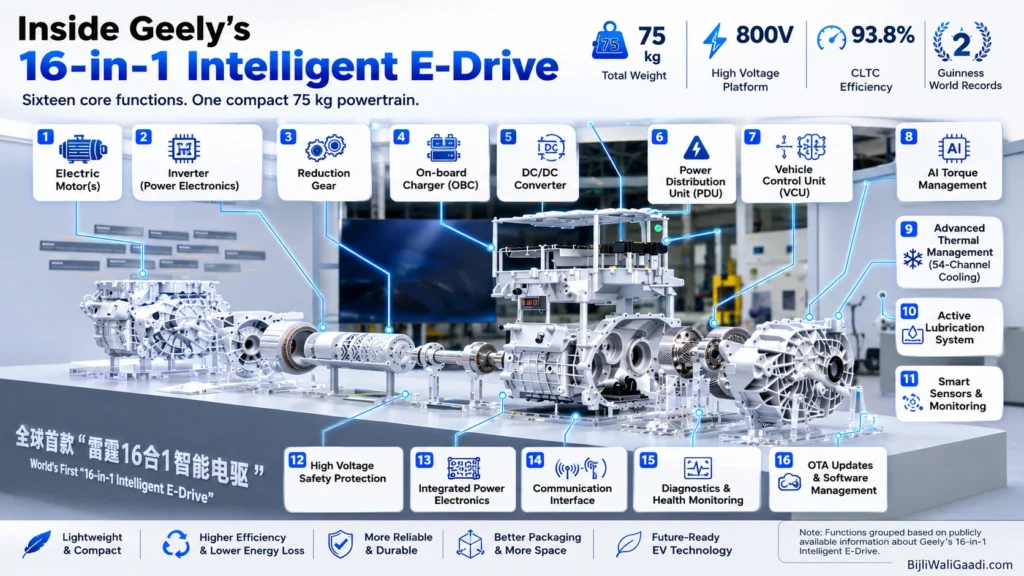

Inside the 16-in-1 Architecture

Geely’s official July 2026 release does not publish an itemised list naming all sixteen functions — only outcomes and headline features (the specs above). Based on how Geely’s own 11-in-1 system and comparable industry units are built, an integration of this scale would conventionally combine: drive motor(s), inverter, reduction gear, onboard charger, DC-DC converter, power distribution unit, vehicle control logic, BMS interface, cooling control, AI torque processor, sensor/communication layer, active lubrication control, position sensing, thermal protection circuitry, high-voltage safety disconnect, and OTA diagnostics.

Note: This second list is an industry-informed interpretation, not an official Geely disclosure — automakers count “functions” differently, so numeric comparisons between an 8-in-1, an 11-in-1 and a 16-in-1 should be read as directional, not literal.

Why Are Automakers Integrating More Components?

A traditional EV powertrain scatters a motor, gearbox, inverter, DC-DC converter, onboard charger, control unit, cooling loop and wiring harnesses across separate housings, each with its own connectors and control board — more metal, more joints, more places for energy and reliability to leak away. Power typically flows from the battery pack through a high-voltage distribution box, into a separate inverter housing wired to a separate DC-DC converter, then to a separate motor housing, reduction gearbox, differential and finally the drive wheels — a long chain of individually housed parts.

Integration’s benefits:

Benefit	Why it matters
Lower weight	Fewer separate housings and enclosures
Lower cost	Shared casings and cooling cut manufacturing cost
Lower energy losses	Shorter power paths mean less resistance and heat
Higher reliability	Fewer connectors = fewer failure points
Smaller packaging	Frees space for batteries or cabin room
Better thermal management	One shared cooling system beats several separate ones

Engineering Insight: Every connector or joint current passes through loses energy as resistive heat. Collapsing many junctions into internal circuit paths is one direct reason the unit reaches 93.8% CLTC efficiency.

Geely already runs an 11-in-1 e-Drive on the EX5, integrating 11 major devices including motors, electronic controls and reducers. The 16-in-1 unit is the next generation of that same philosophy.

Engineering Deep Dive of 16-in-1 Drive System

Power flow & copper losses: At 800V rather than 400V, the current needed for the same power is roughly halved, cutting resistive losses significantly — the same reason data centres and long-distance power lines use higher voltages. Integrating power paths onto shared internal busbars further shortens the distance current travels and removes external joints.

Thermal management: The 54-channel directional cooling system routes coolant through 54 micro-channels targeted at specific heat-generating zones (stator hotspots, winding end-turns, inverter modules, bearings) instead of one simple loop, cutting peak motor temperature by up to 15°C and helping sustain efficiency under hard acceleration.

Active lubrication: Oil flow to the gear and shaft assembly is deliberately directed rather than splash-fed, reducing friction losses and supporting the 5-million-km durability target.

AI torque control: Instead of reacting only to the accelerator, an AI layer continuously reads wheel slip, load and temperature to adjust torque in real time — enabling both the 3.8-second 0–100 km/h sprint and stability through a sustained 46 km drift.

Integrated electronics: Housing the inverter and control boards with the motor shortens signal paths between “decision-making” and “power-delivering” hardware, lowering response latency.

Buyer Takeaway: You won’t feel any of this as a separate showroom feature. You’ll feel a car that accelerates smoothly, doesn’t lose range to heat, and — in theory — needs fewer trips to the service centre, because there are fewer joints that can fail.

BYD’s 8-in-1: The System That Started the Race

BYD’s 8-in-1 powertrain, launched in 2021 as part of e-Platform 3.0, turned integration into an industry-wide race. It combines the VCU, BMS, PDU, drive motor, motor controller, transmission and OBC/DC-DC into one system, with BYD claiming at least 89% overall efficiency.

BYD’s philosophy centres on cost control through vertical integration — since it builds most of its own components in-house, bundling eight functions simplifies its supply chain at scale. The 8-in-1 unit works alongside BYD’s Blade Battery, integrated into the vehicle floor via Cell-to-Body technology, extending BYD’s integration philosophy into the chassis itself. BYD pairs the system with a heat pump and what it calls the industry’s first direct battery heating/cooling system, rated from -30°C to 60°C.

Thanks to in-house battery and semiconductor manufacturing, the 8-in-1 has scaled across BYD’s global lineup, from the Atto 3 upward. BYD’s approach also favours a flatter, skateboard-style chassis layout, where the drive unit, battery and structural floor work together — prioritising interior space and structural safety alongside efficiency.

Where Geely differs: Geely’s system integrates more functions, runs fully on 800V, and adds AI torque management and 54-channel cooling that BYD hasn’t disclosed an equivalent for. BYD’s story is about scale; Geely’s is about pushing a single unit’s technical ceiling, backed by two Guinness World Records rather than lab claims alone.

MG’s Approach: SAIC’s Integrated e-Drive Today

MG Motor (SAIC) has officially confirmed a 6-in-1 electric drive on the MG4 EV Urban, paired with 150 kW DC fast charging on a mass-market hatchback. Some regional marketing references a “10-in-1” system, but no itemised, official breakdown comparable to Geely’s or BYD’s is consistently public.

MG’s strategy appears to favour cost-accessible integration tuned per price segment rather than a single maximum-integration flagship — a meaningfully different approach from Geely showcasing its highest integration count on a flagship sedan first. For India, this suggests models like the Windsor EV likely use a leaner, cost-focused integrated drive rather than a flagship-level system.

Industry Trend: A higher “X-in-1” number doesn’t automatically mean a “better” car for every buyer — a lean, well-executed system on an affordable hatchback can serve its buyer as well as a flagship 16-in-1 serves a performance sedan buyer.

Comparison Table: How Does Geely’s 16-in-1 Stack Up?

System	Year	Integration	Voltage	Efficiency	Weight	Key Advantage	Limitation
Geely 16-in-1	2026	16 functions	800V	93.8% CLTC	75 kg	AI torque control, 54-channel cooling, Guinness-verified	Very new; no real-world service data yet
BYD 8-in-1	2021	8 components	800V (select)	~89% claimed	Not disclosed	World’s first mass-produced 8-in-1; paired with Blade Battery/CTB	Lower integration than newer systems
MG 6-in-1	Varies	6-in-1 confirmed	Varies	Not disclosed	Not disclosed	Cost-accessible, mass-market pricing	Detailed specs not published
Geely EX5 11-in-1	2024	11 devices	Standard EV	98%+ (component-level)	Compact, 160 kW peak	Proven, already in mass production globally	Lower power ceiling than the 16-in-1
Tesla Drive Unit	Ongoing	Highly integrated, not “X-in-1” branded	400V/800V	Not disclosed comparably	Compact	Mature manufacturing scale	No standardised integration figure to compare

Where information isn’t public, we’ve stated so rather than estimating — MG and Tesla disclose less standalone technical detail than Geely and BYD.

Two Guinness World Records Explained

1. Qinghai Lake energy efficiency record: In a real-world challenge circumnavigating Qinghai Lake, the Geely TT recorded 8.20 kWh/100 km, breaking the record for lowest energy consumption circumnavigating the lake by a battery-electric production sedan. A real-world, independently verified long-distance drive is a far harder number to fake than a lab test cycle.

2. Twin-vehicle drift record: The Geely TT sustained a continuous twin-vehicle drift over 46 km on a wet surface — the Guinness title for longest continuous twin-vehicle drift by EVs. Sustaining this for 46 km places enormous demand on torque response, control precision, and thermal management, since the cooling system must prevent throttling throughout.

Engineering Insight: A drift record sounds theatrical, but it’s closer to a stress test than a stunt — it proves the control software and cooling system can sustain extreme, rapidly changing torque demands, which a lab bench test can’t fully replicate.

What Does This Mean for India?

The Geely TT and its 16-in-1 E-Drive aren’t confirmed for India, but Geely’s integration philosophy has historically trickled into other markets over subsequent cycles — as with the EX5’s 11-in-1 system already reaching the UAE and Southeast Asia.

Where Indian OEMs currently stand:

• Tata Motors: Conventional, less-integrated layouts on the Nexon, Curvv and Punch EV; no disclosed integration count for its “acti.ev” platform. Based on available data it usages 3-in-1 e-Drive system.

• Mahindra: BE 6 and XEV 9e (INGLO platform) include 800V-capable variants but no published “X-in-1” figure. Based on available data it usages 3-in-1 e-Drive system.

• MG India: Likely uses a leaner, cost-focused system similar to the confirmed 6-in-1 MG4 EV Urban.

• BYD India: Sells the Atto 3, Seal and eMax 7 on the 8-in-1 e-Platform 3.0 — currently the most transparent integrated system on Indian roads.

• Hyundai: E-GMP platform integrates motor and reduction gear but isn’t branded “X-in-1.” Based on available data it usages 3-in-1 e-Drive system.

• Maruti Suzuki: e Vitara marks its first serious EV push, built alongside Toyota’s EV collaboration; no integration specifics disclosed yet. Based on available data it usages 3-in-1 e-Drive system.

• VinFast India: Local manufacturing in Tamil Nadu with the VF 6 and VF 7 on VinFast’s own platform; no comparable integration count published for the Indian market yet. Based on available data it usages 3-in-1 e-Drive system.

Higher system efficiency (93.8% CLTC) means more battery energy reaches the wheels rather than being lost as heat — valuable for Indian stop-start traffic, high ambient temperatures and price-sensitive “range per rupee” buyers. If Geely eventually localises a similar platform, it could suit India’s PLI scheme, which rewards local value-addition on integrated power electronics, though it may also pressure standalone component suppliers to consolidate or specialise.

Future Outlook: Don’t expect an 800V, 16-in-1 unit in a ₹15 lakh EV tomorrow — but expect higher-voltage platforms and AI-managed torque delivery to filter into mainstream Indian EVs over the next 3–5 years.

Where Does Geely Stand in the Global EV Race?

• Geely: Current technical benchmark for integration count and Guinness-verified real-world performance.

• BYD: Benchmark for scale and vertical integration, deployed across far more models, extending further into the Blade Battery/CTB structure.

• Tesla: Leads on manufacturing scale and software-defined architecture but doesn’t compete in the “X-in-1” conversation.

• Hyundai: Focuses on 800V ultra-fast charging (E-GMP) rather than publicising an integration count.

• SAIC (MG’s parent): Favours cost-tiered integration matched to price segment over a single flagship number.

No single company “wins” outright — BYD optimises for scale, Tesla for software, Geely for a single unit’s technical ceiling, verified independently.

Evolution of EV Integrated Powertrains

Integration Level	Components Combined	Industry Example	Manufacturing Complexity	Repairability
Traditional (separated)	Motor, gearbox, inverter, OBC, DC-DC, control unit — all standalone	Early EVs, first-gen conversions	Low	Highest
3-in-1 / 5-in-1	Motor + inverter + gearbox (+ DC-DC/OBC)	Early Geely e-Drive platforms, e-axle suppliers	Moderate	High
8-in-1	Motor + inverter + gearbox + OBC + DC-DC + PDU + VCU + BMS	BYD e-Platform 3.0	High	Moderate
MG’s 6-in-1	Motor + inverter + gearbox + OBC + DC-DC + control unit	MG4 EV Urban	Moderate-High	Moderate
11-in-1	Motor + inverter + reducer + electronic controls + more	Geely EX5	High	Moderate-Low
16-in-1	Motor(s) + inverter + gearbox + OBC + DC-DC + PDU + VCU + BMS interface + AI torque control + 54-channel cooling + active lubrication + diagnostics, and more	Geely 16-in-1 (Geely TT)	Very High	Lowest of current systems

Future Outlook: Each jump in this table has historically taken the industry roughly 2–5 years to move from flagship showcase to mainstream deployment — so expect 16-in-1-style systems, or their successors, to reach higher-volume EVs within the next several product cycles.

Quick Answers

How does an integrated EV drive unit work?

By combining what were once separate components — motor, inverter, gearbox, charger, control electronics — onto shared internal architecture in one housing, shortening power paths and letting a single cooling and control system manage the whole unit.

Why is 800V important?

It delivers the same power using roughly half the current of a 400V system, cutting resistive losses, enabling lighter cabling, faster DC charging and less heat.

Is Geely ahead of BYD in electric drive technology?

In raw integration count and independently verified real-world testing, yes — but BYD leads in manufacturing scale and vertical integration across its battery and chassis structure.

Final Verdict

Geely’s 16-in-1 Intelligent E-Drive isn’t just a bigger number on a spec sheet — it’s a working demonstration of where the EV industry has headed since BYD bolted eight components together in 2021, taken further and backed by two independently verified Guinness World Records rather than lab claims alone.

For Indian buyers, none of this changes what’s in showrooms today. But it signals where the ground is shifting — toward higher voltages, fewer separate boxes, and software that manages torque as intelligently as it manages efficiency. For a hundred years you could open a bonnet and point at what each part did. Integration is quietly ending that era — the car of the future may be one you can no longer take apart to understand, only one you have to trust.
